This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

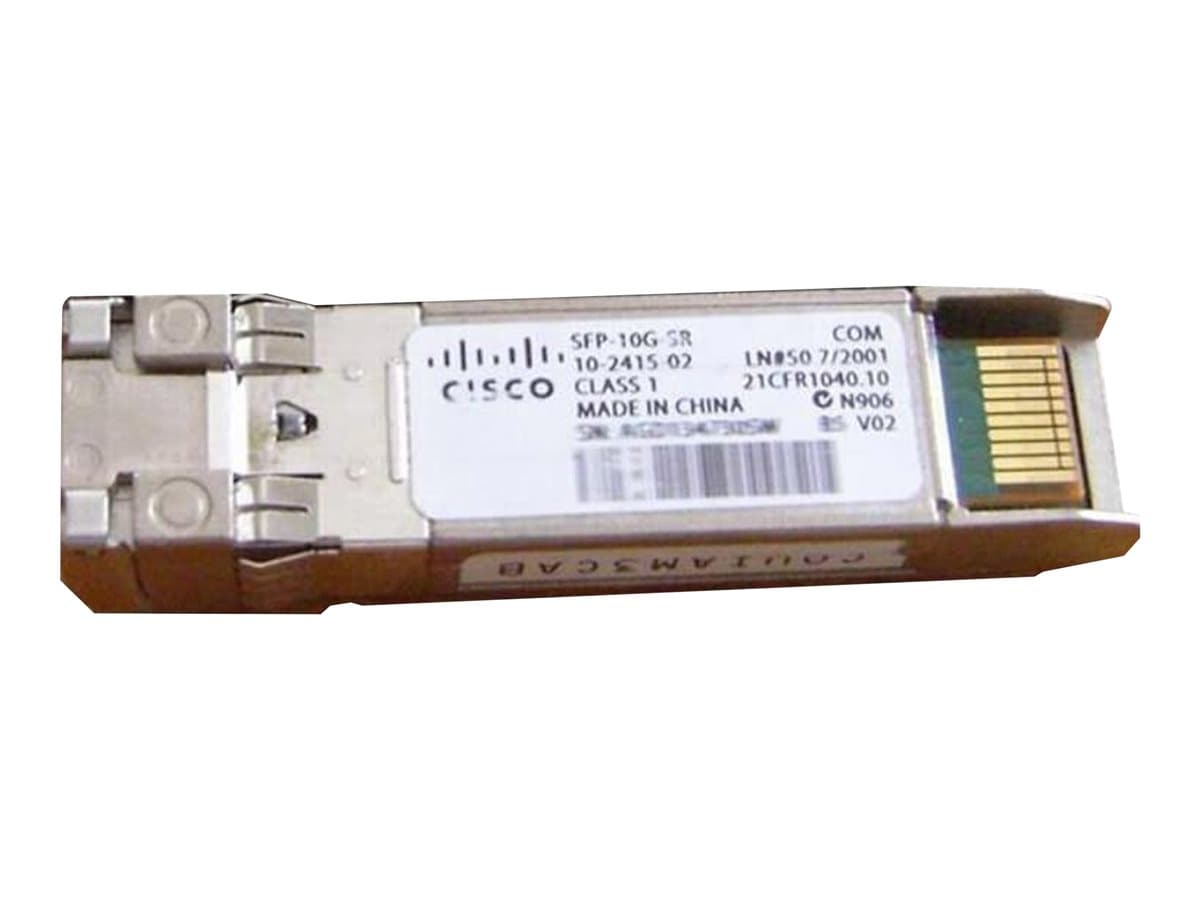

Cisco - SFP+ transceiver module
SFP+ transceiver module
10GbE
10GBase-SR
LC/PC multi-mode
up to 400 m
850 nm
Weight: 0.03 KG
- Smallest 10G form factor
- Commercial temperature (0 to 70°C) only
- Supports 10GBASE Ethernet only
- Hot-swappable input/output device that plugs in to an Ethernet SFP+ port of Cisco platforms
- Provides flexibility of interface choice
- Supports digital optical monitoring capability
- Cisco quality identification (ID) feature that enables a Cisco platform to identify - optics supported by Cisco technology
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Similar Products
Overview
The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.
Main Specifications
- Product Description
- Cisco - SFP+ transceiver module - 10GbE
- Device Type
- SFP+ transceiver module - LC/PC multi-mode
- Form Factor
- Plug-in module
- Cabling Type
- 10GBase-SR
- Data Transfer Rate
- 10 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- 10GbE
- Max Transfer Distance
- 400 m
- Dimensions (WxDxH)
- 1.3 cm x 5.7 cm x 0.9 cm
- Weight
- 75 g
- Manufacturer Warranty
- 1-year warranty
Product Features
LINK LENGTH
Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet
COMPACT
Industry-smallest 10G form factor for greatest density per chassis
HOT SWAPPABLE
Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
VERSATILITY
SFP receiver/transceiver module supports 'pay-as-you-populate' model for investment protection and ease of technology migration
PEACE OF MIND
5-year standard replacement warranty
What's in the box
SFP Module
Specifications
General
- Form Factor
- Plug-in module
- Device Type
- SFP+ transceiver module
Connections & Expansion
- Interfaces
- 1 x Ethernet 10GBase-SR - LC/PC multi-mode x 2
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Networking
- Data Transfer Rate
- 10 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 400 m
- Compliant Standards
- IEEE 802.3ae
- Connectivity Technology
- Wired
- Cabling Type
- 10GBase-SR
- Data Link Protocol
- 10GbE
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
Weight & dimensions
- Width
- 1.3 cm
- Depth
- 5.7 cm
- Height
- 0.9 cm
- Weight
- 75 g
