Product Comparison
Technical Specifications
Feature
General
American Wire Gauge (AWG)
—
—
—
—
24
Cable Length
—
—
—
—
5 m
Colour
Green
—
Blue
—
—
Device Type

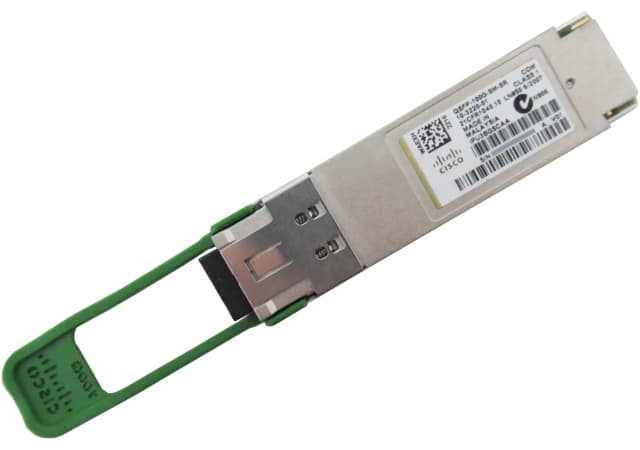

QSFP+ transceiver module
SFP28 transceiver module
QSFP+ transceiver module
QSFP+ transceiver module
—
Features
—
—
—
—
Latching connectors
Form Factor
Plug-in module
Plug-in module
Plug-in module
Plug-in module
—
Network Cable Type
—
—
—
—
Direct attach cable - SFF-8436/IEEE 802.3ae
Technology
—
—
—
—
Twinaxial
Power
Power Consumption Operational
3.5 Watt
—
3.5 Watt
—
—
Miscellaneous
Compliant Standards
Laser Class 1, ELV, RoHS, GR-326-CORE, GR-20-CORE
OM3, OM4
FCC CFR21 Part 1040, GR-326-CORE, GR-20-CORE, GR-1435-CORE, MSA SFF-8431, MSA SFF-8436, IEC 60825-1 Class 1
—
RoHS, ELV, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE, ITU-T G.709, ITU-T G.975, ITU-T G.975.1
Networking
Cabling Type
100GBase-CWDM4 Lite
10GBase-CSR, 25GBase-CSR
40GBase-LR4
40GBASE-BiDi, 100GBASE-BiDi
—
Compliant Standards
IEEE 802.3ba, ITU-T G.652, IEEE 802.3bm
IEEE 802.3by
IEEE 802.3ba, ITU-T G.652
—
—
Connectivity Technology
Wired
Wired
Wired
Wired
—
Data Link Protocol
100GbE
10GbE, 25GbE
40GbE
40GbE, 100GbE
—
Data Transfer Rate
100 Gbps
25 Gbps
40 Gbps
100 Gbps
—
Features
—
Peach pull tab
Hot swap module replacement
—
—
Max Transfer Distance
2 km
400 m
10 km
100 m
—
Optical Wave Length
1271 nm / 1291 nm / 1311 nm / 1331 nm
840-860 nm
1271 nm / 1291 nm / 1311 nm / 1331 nm
—
—
Connectivity
Connector
—
—
—
—
SFP+
Connector (Second End)
—
—
—
—
SFP+
Weight & Dimensions
Depth
7.24 cm
—
7.24 cm
—
—
Height
1.35 cm
—
1.35 cm
—
—
Weight
100 g
—
100 g
—
—
Width
1.84 cm
—
1.84 cm
—
—
Compatibility Information
Designed For
P/N: C1-N9K-C92160YC-X, C1-N9K-C92304QC, C1-N9K-C9236C, C1-N9K-C93180YC-EX, N9K-C92160YC-X, N9K-C92160YC-X=, N9K-C92160YC-X=S, N9K-C92160YC-X-3PK, N9K-C92304QC, N9K-C9236C, N9K-C93180LC-EX, N9K-C93180LC-EX=, N9K-C93180LC-EX-B2, N9KC93180LCEXB2-WS, N9K-C93180YC-EX, N9K-C93180YC-EX=, N9K-C93180YC-EX-B, N9K-X9432C-S=, N9K-X9732C-EX, N9K-X9732C-EX=, N9K-X9732C-EX-RF, NCS-5501, NCS-5501=, NCS-5501-SE, NCS-5502, NCS-5502-RF, NCS-5502-SE, NCS-5502-WS
P/N: A9903-8HG-PEC=, A9K-4HG-FLEX-FC=, ASR-9006-MIG-KIT, ASR-9010-MIG-KIT, ASR-9902, ASR-9903, ASR-9904-MIG-KIT, ASR-9906-MIG-KIT, ASR-9910-LS-BUN, ASR-9910-MIG-KIT, ASR-9912-LS-BUN, ASR-9912-MIG-KIT, ASR-9922-LS-BUN, ASR-9922-MIG-KIT, C9200L-24PXG-2Y-1E, C9200L-24PXG-2YA++, C9200L-24PXG-2Y-A=, C9200L-24PXG-2Y-CE, C9200L-24PXG-2Y-E=, C9200L-48PXG-2Y-1E, C9200L-48PXG-2YA++, C9200L-48PXG-2Y-A=, C9200L-48PXG-2YE++, C9200L-48PXG-2Y-E=, C9200-NM-2Y, C9200-NM-2Y=, C9300-24H-10A, C9300-24H-10E, C9300-24H-1A, C9300-24H-1E, C9300-24H-A, C9300-24H-E, C9300-24H-EDU, C9300-24P-P, C9300-24T-P, C9300-24U-10E, C9300-24U-A-UL, C9300-24UB-A, C9300-24UB-E, C9300-24U-E-UL, C9300-24U-P, C9300-24UXB-A, C9300-24UXB-E, C9300-24UX-P, C9300-48H-1A, C9300-48H-A, C9300-48H-E, C9300-48H-EDU, C9300-48T-10A, C9300-48U-10A, C9300-48U-A-UL, C9300-48UB-A, C9300-48UB-E, C9300-48U-E-UL, C9300-48UN-10A, C9300-48UN-10E, C9300-NM-2Y-RF, C9300-NM-2Y-WS, C9300X-12Y-A, C9300X-12Y-E, C9300X-24Y-A, C9300X-24Y-E, C9500-24Y4C-10E, C9500-24Y4C-A-CS33, C9500-24Y4C-A-RF, C9500-24Y4C-E-RF, C9500-48Y4C-1A-DUP, C9500-48Y4C-1E, C9500-48Y4C-A-CAP, C9500-48Y4C-A-RF, C9500-48Y4C-E-RF, C9500-48Y4C-P, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, HX-FI-64108, N3K-C34180YC-RF, N3K-C34180YC-WS, N3K-C34200YC-SM, N3K-C34200YC-SM=, N9K-C93180YC-EX24=, N9K-C93180YC-EX-BCMN, N9K-C93180YC-FX24=, N9K-C93180YC-FX3S, N9K-C93180YC-FX3S=, N9K-C93180YC-FX-H, N9K-C93180YC-FX-WS, N9K-C93216TC-FX2, N9K-C93216TC-FX2=, N9K-C93360YC-FX2=, N9K-C9336C-FX2-WS, N9K-C9348GC-FXP-H, N9K-C9348GC-FXP-WS, N9K-X97160YC-EX++=, NC55-32T16Q4H-AT=, NCS-5504-MBH, NCS-5508-MBH, NCS-5516, NCS-5516-MBH, NCS-5516-SYS, NCS-5516-SYS-BUN1, NCS-55A1-24Q6H-S, NCS-55A1-48Q6H, NCS-55A1-48Q6H=, NCS-55A1-48Q6H-RF, NCS-55A2-MOD-HD-S, NCS-55A2-MOD-HD-S=, NCS-55A2-MODH-SYS, NCS-55A2-MOD-HX-S, NCS-55A2MODSH-SYS, NCS-55A2-MOD-S-RF, NCS-55A2-MOD-S-WS, NCS-55A2-MODX-SYS, UCSC-P-M4D25GF, UCS-FI-64108, UCS-FI-64108-U, UCS-R2F-FI-64108
—
—
Cisco 250 Series SG250X-48P Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S, ESS9300 Embedded Series Cisco Nexus 93180YC-FX, 9336C-FX2, 9372PX-E Cisco UCS 6140XP Fabric Interconnect, C4200 Rack Server Chassis
Connections & Expansion
Interfaces
1 x Ethernet 100GBase-CWDM4 Lite - LC single-mode female x 2
1 x Ethernet 10GBase-CSR/25GBase-CSR - LC/PC multi-mode
1 x Ethernet 40GBase-LR4 - LC single-mode x 2
1 x Ethernet 100GBASE-BiDi - LC multi-mode
—
Environmental Parameters
Max Operating Temperature
60 °C
70 °C
70 °C
—
70 °C
Min Operating Temperature
10 °C
0 °C
0 °C
—
0 °C
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Limited warranty - 1 year
Limited warranty - 1 year
Limited warranty - 90 days
90 days warranty
