This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

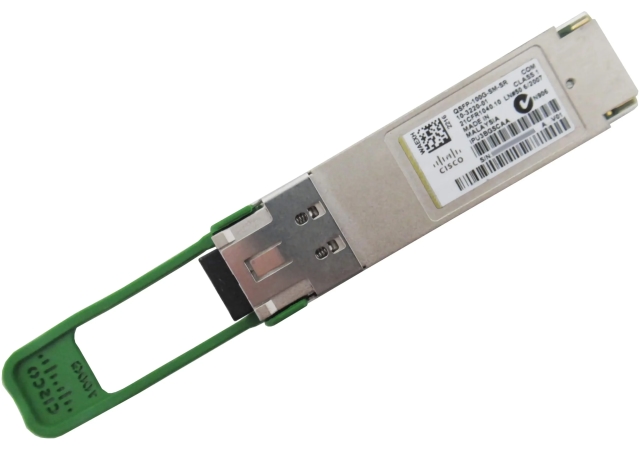

Cisco - QSFP+ transceiver module
QSFP+ transceiver module
100GbE
100GBase-CWDM4 Lite
LC single-mode
up to 2 km
1271 nm / 1291 nm / 1311 nm / 1331 nm
for P/N: N9K-C93180LC-EX-B2, N9KC93180LCEXB2-WS, N9K-X9732C-EX-RF, NCS-5502-RF, NCS-5502-WS
Weight: 0.04 KG
- Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3bm
Similar Products
Overview
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP100G modules are Cisco's latest generation of 100G transceiver modules solution based on a QSFP form factor.
Main Specifications
- Product Description
- Cisco - QSFP+ transceiver module - 100GbE
- Device Type
- QSFP+ transceiver module - LC single-mode
- Form Factor
- Plug-in module
- Cabling Type
- 100GBase-CWDM4 Lite
- Data Transfer Rate
- 100 Gbps
- Optical Wave Length
- 1271 nm / 1291 nm / 1311 nm / 1331 nm
- Data Link Protocol
- 100GbE
- Max Transfer Distance
- 2 km
- Dimensions (WxDxH)
- 1.84 cm x 7.24 cm x 1.35 cm
- Weight
- 100 g
- Manufacturer Warranty
- 90 days warranty
- Designed For
- P/N: C1-N9K-C92160YC-X, C1-N9K-C93180YC-EX, N9K-C92160YC-X=, N9K-C92160YC-X=S, N9K-C93180LC-EX, N9K-C93180LC-EX=, N9K-C93180LC-EX-B2, N9KC93180LCEXB2-WS, N9K-C93180YC-EX=, N9K-X9432C-S=, N9K-X9732C-EX-RF, NCS-5501, NCS-5501=, NCS-5501-SE, NCS-5502, NCS-5502-RF, NCS-5502-SE, NCS-5502-WS
Product Features
Robust connectivity
The Cisco QSFP+ transceiver module offers a reliable wired connectivity solution, ensuring stable and high-speed data transfer rates of up to 100 Gbps for Ethernet 100GBase-CWDM4 Lite networks. Its compatibility with IEEE 802. 3ba and IEEE 802. 3bm standards, along with ITU-T G. 652, supports a broad range of network interoperability and efficient data communication.
Extended operational range
Designed to facilitate long-distance communication, this transceiver module boasts an impressive max transfer distance of 2 km. It operates efficiently across a spectrum of optical wavelengths including 1271 nm, 1291 nm, 1311 nm, and 1331 nm, making it an ideal choice for expansive network setups requiring consistent signal strength over large areas.
High environmental adaptability
With an operating temperature range from 10°C to 60°C, the Cisco QSFP+ transceiver module is engineered to perform reliably in a variety of environmental conditions. This adaptability ensures uninterrupted service and longevity of the module, even in challenging climates.
Safety and compliance
Adhering to multiple compliance standards such as ELV, GR-20-CORE, GR-326-CORE, Laser Class 1, and RoHS 6/6, this module not only prioritizes operational efficiency but also user safety and environmental responsibility. These certifications underscore Cisco's commitment to providing products that meet rigorous health, safety, and environmental criteria.
Specifications
General
- Form Factor
- Plug-in module
- Colour
- Green
- Device Type
- QSFP+ transceiver module
Connections & Expansion
- Interfaces
- 1 x Ethernet 100GBase-CWDM4 Lite - LC single-mode female x 2
Manufacturer Warranty
- Service & Support
- Limited warranty - 90 days
Networking
- Max Transfer Distance
- 2 km
- Connectivity Technology
- Wired
- Data Transfer Rate
- 100 Gbps
- Optical Wave Length
- 1271 nm / 1291 nm / 1311 nm / 1331 nm
- Compliant Standards
- IEEE 802.3ba, ITU-T G.652, IEEE 802.3bm
- Cabling Type
- 100GBase-CWDM4 Lite
- Data Link Protocol
- 100GbE
Miscellaneous
- Compliant Standards
- Laser Class 1, ELV, RoHS, GR-326-CORE, GR-20-CORE
Power
- Power Consumption Operational
- 3.5 Watt
Environmental Parameters
- Max Operating Temperature
- 60 °C
- Min Operating Temperature
- 10 °C
Weight & dimensions
- Weight
- 100 g
- Depth
- 7.24 cm
- Height
- 1.35 cm
- Width
- 1.84 cm
Compatibility Information
- Designed For
- P/N: C1-N9K-C92160YC-X, C1-N9K-C92304QC, C1-N9K-C9236C, C1-N9K-C93180YC-EX, N9K-C92160YC-X, N9K-C92160YC-X=, N9K-C92160YC-X=S, N9K-C92160YC-X-3PK, N9K-C92304QC, N9K-C9236C, N9K-C93180LC-EX, N9K-C93180LC-EX=, N9K-C93180LC-EX-B2, N9KC93180LCEXB2-WS, N9K-C93180YC-EX, N9K-C93180YC-EX=, N9K-C93180YC-EX-B, N9K-X9432C-S=, N9K-X9732C-EX, N9K-X9732C-EX=, N9K-X9732C-EX-RF, NCS-5501, NCS-5501=, NCS-5501-SE, NCS-5502, NCS-5502-RF, NCS-5502-SE, NCS-5502-WS
