Product Comparison

Technical Specifications

Only show the difference

Feature

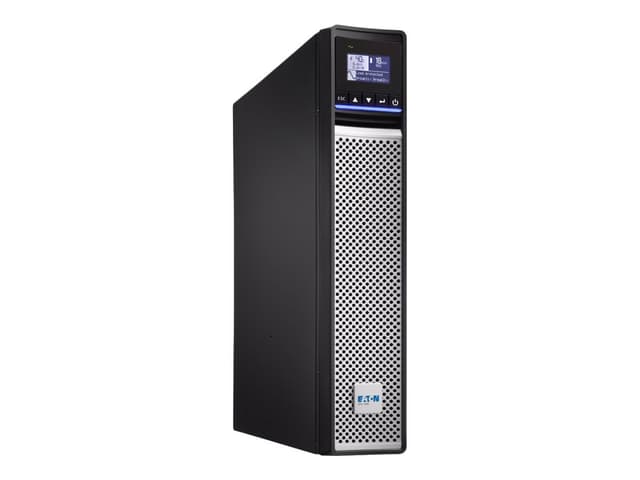

Brand: EATON|SKU: 5PX1500IRTNG2BS

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

£1240.07

Stock: 14

Brand: EATON|SKU: 5SC1000IRBS

Eaton 5SC 1000iR

£610.30

Stock: 14

Brand: EATON|SKU: 9PX3000IRTNBS

Eaton 9PX - Netpack - UPS (rack-mountable / external)

£2582.96

Stock: 8

Brand: EATON|SKU: 3P700UI

Eaton 3P Ellipse 700 USB IEC

£105.14

Stock: 6

Brand: EATON|SKU: 3P1300UI

Eaton 3P Ellipse 1300 USB IEC

£192.20

Stock: 7

General

Colour

Black, silver

Black

Black, silver

—

Device Type

UPS - rack-mountable / external

UPS - rack-mountable

UPS - rack-mountable / external

—

Height (Rack Units)

—

Rack Size

—

19"

—

Battery

Capacity

9 Ah

—

Features

Maintenance free

—

Sealed

—

Quantity

—

Run Time (Up To)

44 min at 300 Watts, 24 min at 500 Watts, 13 min at 800 Watts, 7 min at 1200 Watts

5 min at full load, 12 min at half load, 8 min at 70% load

3 min at full load, 60 min at 300 Watts, 36 min at 500 Watts, 22 min at 800 Watts, 13 min at 1200 Watts, 7 min at 1800 Watts, 4 min at 2500 Watts

—

Technology

Lead Acid

—

Type

—

Expandable

—

Voltage Provided

12 V

—

Network

Remote Management Interface

RS-232, USB, Ethernet 10/100/1000

RS-232, USB

Ethernet 10/100, RS-232, USB

—

Remote Management Protocol

SNMP

—

Telnet, SNMP 3, HTTP, SSH, CLI, SMTP, DHCP, IPv6

—

Miscellaneous

Cables Included

2 x power cable (IEC), USB cable - external, Serial cable - external

USB cable, 2 x power cable, (IEC) Serial cable

2 x power cable - external, USB cable - external, Serial cable - external, Power cable - external - 1.8 m

—

Compliant Standards

UL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CAN/CSA C22.2, CM, UKCA

UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2

TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B

—

Features

Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, energy metre

Advance Battery Management (ABM), LCD display, deep discharge protection

Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, double conversion

—

Included Accessories

Tower stand, BS cord 10A

BS cord 10A

Tower stand

—

Rack Mounting Kit

Included

—

Power Device

Circuit Protection

—

Circuit breaker

—

Efficiency

98%

96%

98% Eco mode, 94% online mode

—

Frequency Provided

50/60 Hz ± 0.1Hz

—

50/60 Hz

—

Frequency Required

47 - 70 Hz

50/60 Hz

40 - 70 Hz

—

Input Connectors

1 x power IEC 60320 C14

1 x power BS

—

Input Voltage

AC 200/208/220/230/240 V

AC 220/230/240 V

AC 200/208/220/230/240 V

—

Input Voltage Range

AC 160 - 294 V

AC 184 - 276 V

AC 100 - 276 V

—

Input Voltage Range (Adjustable)

AC 150 - 294 V

—

Input Wiring

1-phase

—

Output Voltage

AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz

AC 220-240 V

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

—

Output Waveform

Sinewave

—

Sinewave

—

Power Capacity

1500 Watt / 1500 VA

700 Watt / 1000 VA

3000 Watt / 3000 VA

—

Power Factor (PF)

—

0.7

0.99

—

Power Output Connectors Details

8 x power IEC 60320 C13

8 x power IEC 60320 C13, 2 x power IEC 60320 C19

—

UPS Technology

Line interactive

On-line

—

Weight & Dimensions

Depth

44.8 cm

40.5 cm

60.5 cm

—

Height

8.55 cm

8.62 cm

8.65 cm

—

Weight

22.4 kg

15.36 kg

28.143 kg

—

Width

43.8 cm

44 cm

—

Sustainability

ENERGY STAR

Yes

—

Connections & Expansion

Expansion Slots

1 (total) / 0 (free) x Expansion Slot

—

1 (total) / 0 (free) x Expansion Slot

—

Interfaces

1 x management (RS-232) - RJ-45, 1 x management (USB) - 4 pin USB Type B, 1 x management (Gigabit Ethernet) - RJ-45, Remote power (on/off) - mini terminal block, Relay output - mini terminal block

1 x management (USB) - 4 pin USB Type B, 1 x management (RS-232) - RJ-45

1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B, 1 x remote power (on/off) - mini terminal block, 1 x remote power off - mini terminal block, 1 x relay output - mini terminal block, 1 x management (Fast Ethernet) - RJ-45, 1 x RS-232 / sensor - RJ-45

—

Environmental Parameters

Humidity Range Operating

0 - 90% (non-condensing)

0 - 90%

0 - 96% (non-condensing)

—

Max Operating Temperature

40 °C

—

Min Operating Temperature

0 °C

—

Sound Emission

40 dB

—

40 dB

—

Manufacturer Warranty

Service & Support

Limited warranty - electrical components and functions - 3 years, Limited warranty - batteries - 2 years

Limited warranty - 2 years, Limited warranty - batteries - 2 years

Limited warranty - 3 years, Limited warranty - batteries - 2 years

—
