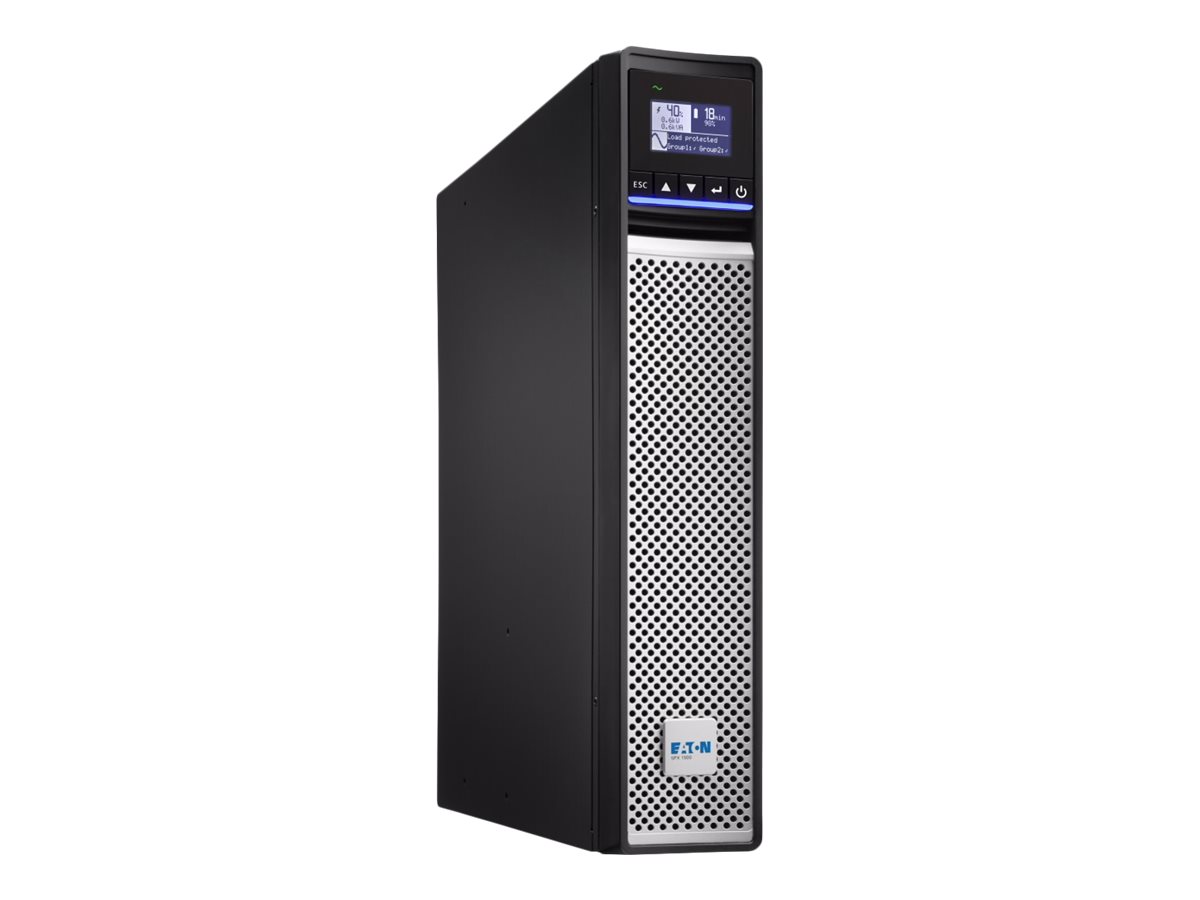

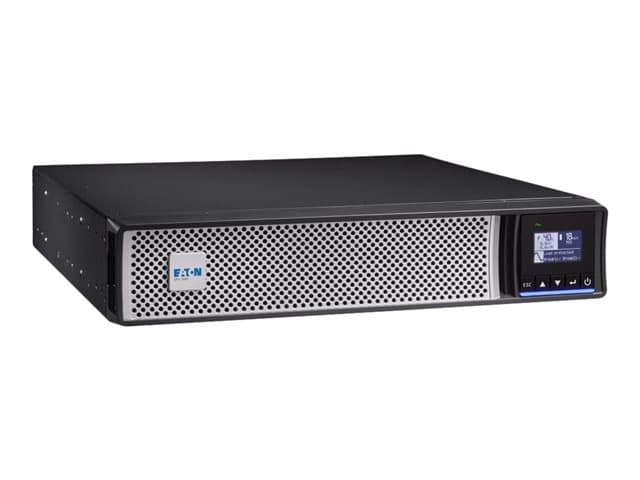

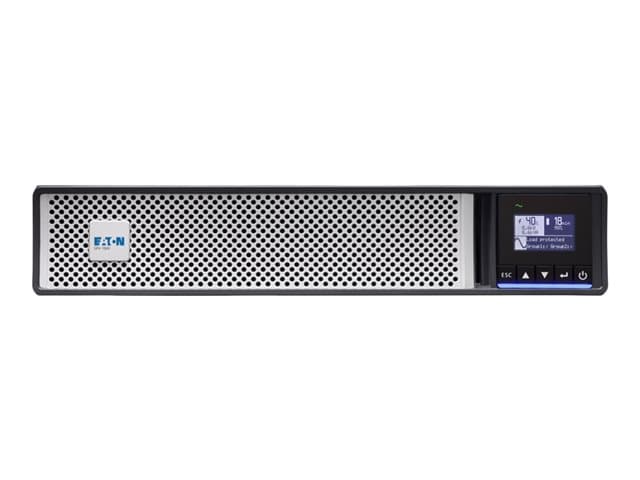

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)
Thumbnail 0
Thumbnail 1
Thumbnail 2

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Manuf P/N: 5PX1500IRTNG2BS
APAXON#: 6996528
EAN: 3553340620911
Eaton 5PX G2
Netpack
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
1500 Watt
1500 VA
1-phase
9 Ah
RS-232, USB, Ethernet 10/100/1000
output connectors: 8
2U
black, silver
Weight: 28.50 KG
UK Stock14
ConditionNew
Price £ 1,240.07
Price inc. VAT
£ 1,488.08
Quantity
|

Sales & Technical Enquiries

Product Summary

The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.

Extended Specification

General
Colour
Black, silver
Height (Rack Units)
2U
Device Type
UPS - rack-mountable / external
Connections & Expansion
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Interfaces
1 x management (RS-232) - RJ-45, 1 x management (USB) - 4 pin USB Type B, 1 x management (Gigabit Ethernet) - RJ-45, Remote power (on/off) - mini terminal block, Relay output - mini terminal block
Manufacturer Warranty
Service & Support
Limited warranty - electrical components and functions - 3 years, Limited warranty - batteries - 2 years
Network
Remote Management Protocol
SNMP
Remote Management Interface
RS-232, USB, Ethernet 10/100/1000
Miscellaneous
Rack Mounting Kit
Included
Included Accessories
Tower stand, BS cord 10A
Cables Included
2 x power cable (IEC), USB cable - external, Serial cable - external
Features
Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, energy metre
Compliant Standards
UL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CAN/CSA C22.2, CM, UKCA
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dB
Humidity Range Operating
0 - 90% (non-condensing)
Battery
Quantity
4
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Features
Maintenance free
Run Time (Up To)
44 min at 300 Watts, 24 min at 500 Watts, 13 min at 800 Watts, 7 min at 1200 Watts
Power Device
Input Voltage
AC 200/208/220/230/240 V
UPS Technology
Line interactive
Output Waveform
Sinewave
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Required
47 - 70 Hz
Efficiency
98%
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Input Wiring
1-phase
Power Capacity
1500 Watt / 1500 VA
Frequency Provided
50/60 Hz ± 0.1Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
8 x power IEC 60320 C13
Weight & Dimensions
Depth
44.8 cm
Width
43.8 cm
Weight
22.4 kg
Height
8.55 cm
Sustainability
ENERGY STAR
Yes
Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Disclaimers

  • Actual configuration might differ from illustration
