Product Comparison
Technical Specifications
Feature
Brand: SPARKLE|SKU: SB580T-12GOC

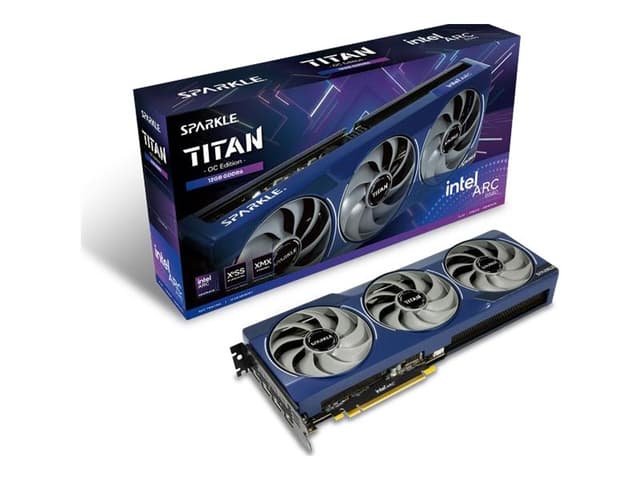

SPARKLE Intel Arc B580 TITAN OC
£234.37
Stock: 122
Brand: SPARKLE|SKU: SB570G-10GOC
SPARKLE Intel Arc B570 GUARDIAN
£315.03
Stock: 10
Brand: SPARKLE|SKU: SB580G-12G
SPARKLE Intel Arc B580 GUARDIAN
£236.79
Stock: 152
General
API Supported
DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
Boost Clock
2740 MHz
2660 MHz
2660 MHz
2670 MHz
Bus Type
PCI Express 4.0 x8
PCI Express 4.0 x16 (x8 mode)
PCI Express 4.0 x16 (x8 mode)
PCI Express 4.0 x8
Device Type
Graphics card
Graphics card
Graphics card
Graphics card
Features
Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 3 x AXL fans, 2.2-slot Fan Cooler
18 Xe Cores, 18 Ray Tracing Units, 144 Intel XMX engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 decode support, AV1 encode support, VP9 support, Intel Deep Link Technology, axial fans
18 Xe Cores, 18 Ray Tracing Units, 144 Intel XMX engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 decode support, AV1 encode support, VP9 support, Intel Deep Link Technology, axial fans
Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 2 x AXL fans, 2.2-slot Fan Cooler
Graphics Engine
Intel Arc B580
Intel Arc B570
Intel Arc B570
Intel Arc B580
Interfaces Details
HDMI 3 x DisplayPort
HDMI 3 x DisplayPort
HDMI 3 x DisplayPort
HDMI 3 x DisplayPort
Max Monitors Supported
—
—
—
4
Max Resolution
7680 x 4320 at 120 Hz
7680 x 4320 at 120 Hz
7680 x 4320 at 120 Hz
7680 x 4320 at 120 Hz
Max Resolution Details
DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
Memory
Bandwidth
456 GBps
380 GBps
380 GBps
456 GBps
Bus Width
192-bit
160-bit
160-bit
192-bit
Size
12 GB
10 GB
10 GB
12 GB
Technology
GDDR6 SDRAM
GDDR6 SDRAM
GDDR6 SDRAM
GDDR6 SDRAM
Miscellaneous
Depth
31.5 cm
10.5 cm
10.5 cm
24.2 cm
Height
11.7 cm
4.4 cm
4.4 cm
10.5 cm
Included Accessories
VGA Holder
—
—
—
Power Consumption Operational
200 Watt
170 Watt
170 Watt
190 Watt
Weight
954 g
796 g
796 g
796 g
Width
4.4 cm
24.2 cm
24.2 cm
4.4 cm
System requirements
Additional Requirements
8 pin PCI Express power connector
8 pin PCI Express power connector
8 pin PCI Express power connector
8 pin PCI Express power connector
OS Required
Windows 11, Windows 10
Windows 11, Windows 10
Windows 11, Windows 10
Windows 11, Windows 10
Required Power Supply
600 W
600 W
600 W
600 W
Performance
AI Datatype Support on NPU
INT8
—
—
—
NPU Performance Up To (TOPS)
233 TOPS
—
—
233 TOPS
