Compare TP-Link Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing TP-Link products in the Hubs & Switches category.

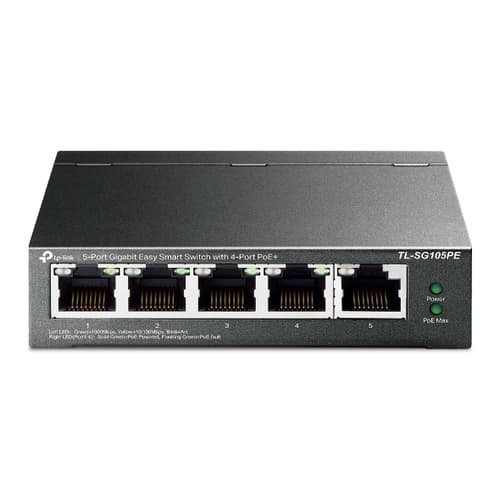

| Specification | Current product TP-Link TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)TL-SG105PE £46.61 £55.93 inc VAT | TP-Link TP-Link TL-RP108GE - Switch - Managed - 7 x 10/100/1000 (PoE input) + 1 x 10/100/1000 (PoE output) - desktop - Reverse PoERP108GE £25.55 £30.66 inc VAT | TP-Link TP-Link TL-SG1210MP V2 - Switch - unmanaged - 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink) - desktop, wall-mountable - PoE+TL-SG1210MP £81.78 £98.14 inc VAT | ||
|---|---|---|---|---|---|
| Power | |||||
| AC input frequency | — | — | — | 50 Hz | — |
| AC input voltage | — | — | — | 220 V | — |
| Input current | 1.31 A | 1 A | — | 0.6 A | 2.43 A |
| Input voltage | 53.5 V | 5 V | — | — | 53.5 V |
| Power consumption (max) | 75.16 W | — | — | 3.3 W | 141.4 W |
| Power source | DC | DC | — | — | DC |
| Power supply included | Yes | No | — | Yes | — |
| Network | |||||
| 10G support | No | No | — | No | No |
| Auto MDI/MDI-X | Yes | — | — | Yes | Yes |
| Auto-negotiation | Yes | — | — | Yes | Yes |
| Broadcast storm control | Yes | Yes | — | — | — |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 | — | — | Cat3, Cat4, Cat5, Cat5e | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T | — | — | 10BASE-T, 100BASE-TX, 1000BASE-T | 10BASE-T, 100BASE-TX |
| Flow control support | Yes | — | — | Yes | Yes |
| Full duplex | — | Yes | — | Yes | — |
| Half duplex | — | Yes | — | — | — |
| Link aggregation | Yes | — | — | — | — |
| MAC address auto-aging supported | — | — | — | Yes | Yes |
| MAC address auto-learning supported | — | — | — | Yes | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x | — | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 | 4000 | — | — | — |
| Port mirroring | Yes | Yes | — | — | — |
| Rate limiting | Yes | Yes | — | — | — |
| Virtual LAN features | Port-based VLAN, Tagged VLAN | Port-based VLAN, Tagged VLAN | — | — | — |
| VLAN support | Yes | Yes | — | — | — |
| Security | |||||
| Access Control List (ACL) IPv6 entries | — | — | — | 11 | — |
| IGMP snooping | Yes | Yes | — | Yes | — |
| Loop protection | Yes | Yes | — | — | — |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 5 | 8 | — | 8 | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | — | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | — | — | — | — | 1 |
| Gigabit Ethernet (copper) ports quantity | 5 | — | — | — | — |
| Installed QSFP+ modules quantity | — | — | — | 0 | — |
| Installed SFP modules quantity | 0 | 0 | — | 0 | 0 |
| Installed SFP+ modules quantity | 0 | 0 | — | 0 | 0 |
| Packaging content | |||||
| Cables included | — | — | — | AC | — |
| Manual | — | — | — | Yes | — |
| Quick start guide | — | — | — | Yes | Yes |
| User guide | Yes | — | — | Yes | — |
| Certificates | |||||
| Certification | FCC, CE, RoHS | FCC, CE, RoHS | — | CE, FCC ,RoHS | CE, FCC |
| Weight & dimensions | |||||
| Depth | 98 mm | 99.1 mm | — | 101 mm | 126 mm |
| Height | 25 mm | 25 mm | — | 25 mm | 26 mm |
| Width | 99.8 mm | 158 mm | — | 158 mm | 209 mm |
| Performance | |||||
| Fanless | Yes | — | — | — | Yes |
| Data transmission | |||||
| Forwarding rate | 7.44 Mpps | 11.9 Mpps | — | 11.9 Mpps | — |
| Jumbo frames | 16000 | 16000 | — | 16000 | — |
| Jumbo frames support | Yes | Yes | — | Yes | — |
| MAC address table | 2000 entries | 4000 entries | — | 4096 entries | 4000 entries |
| Number of queues | 4 | — | — | — | — |
| Packet buffer memory | 1 MB | — | — | 1.5 MB | 14.88 MB |
| Static route | — | Yes | — | — | — |
| Store-and-forward | Yes | Yes | — | Yes | Yes |
| Switching capacity | 10 Gbit/s | 16 Gbit/s | — | 16 Gbit/s | 20 Gbit/s |
| Protocols | |||||
| GARP VLAN Registration Protocol (GVRP) | — | — | — | Yes | — |
| Logistics data | |||||
| Harmonized System (HS) code | 85176990 | 85176990 | — | 85176990 | 85176990 |
| Operational conditions | |||||
| Heat dissipation | 256.3 BTU/h | — | — | — | 482.17 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | — | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | — | 0 - 40 °C | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% | 5 - 90% | — | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | — | -40 - 70 °C | -40 - 70 °C |
| Design | |||||
| LED indicators | Activity, Link, PoE, Power, Speed, Status | Yes | — | Yes | Yes |
| Product colour | Black | Black | — | Black | Black |
| Rack mounting | No | — | — | No | No |
| Reset button | — | Yes | — | — | — |
| Wall mountable | — | — | — | Yes | — |
| Multicast features | |||||
| Multicast support | — | — | — | Yes | — |
| Packaging data | |||||
| Package depth | 196 mm | — | — | — | 315 mm |
| Package height | 121 mm | — | — | — | 70 mm |
| Package type | — | — | — | Box | — |
| Package weight | 770 g | — | — | — | 1.41 kg |
| Package width | 131 mm | — | — | — | 240 mm |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | Yes | Yes | — | No | Yes |
| Power over Ethernet (PoE) ports quantity | — | 8 | — | — | — |
| Power over Ethernet (PoE) power per port | 30 W | — | — | — | 30 W |
| Power over Ethernet (PoE) type supported | — | Passive PoE | — | — | — |
| Power over Ethernet plus (PoE+) ports quantity | 4 | — | — | — | 8 |
| Total Power over Ethernet (PoE) budget | 65 W | — | — | — | 123 W |
| Management features | |||||
| Quality of Service (QoS) support | Yes | Yes | — | Yes | — |
| Switch layer | L2 | L2 | — | L2 | — |
| Switch type | Managed | Managed | — | Unmanaged | Unmanaged |
| Web-based management | Yes | — | — | — | — |
