TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
Manuf P/N: TL-SG105PE
APAXON#: 5818011
EAN: 6935364052751
TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- DC Power supply included Power over Ethernet (PoE)
UK Stock24
ConditionNew
Price £ 49.01
Price inc. VAT
£ 58.81
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
Your Choice
—
—
—
—
Stock24
£49.01
Product Summary
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
Extended Specification
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
5
Network
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Number of VLANs
4000
Data transmission
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
16000
Packet buffer memory
1 MB
Security
IGMP snooping
Yes
Loop protection
Yes
Design
Rack mounting
No
Product colour
Black
LED indicators
Activity, Link, PoE, Power, Speed, Status
Performance
Fanless
Yes
Power
Power source
DC
Power supply included
Yes
Input current
1.31 A
Input voltage
53.5 V
Power consumption (max)
75.16 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
65 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
256.3 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging content
User guide
Yes
Packaging data
Package width
131 mm
Package depth
196 mm
Package height
121 mm
Package weight
770 g
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Similar Products
TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
Your Choice
—
—
—
—
Stock24
£49.01
TP-Link LiteWave LS1210GP V1 - Switch - 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP - desktop, wall-mountable - PoE+ (61 W)
Better
—
—
—
—
Stock5
£63.14

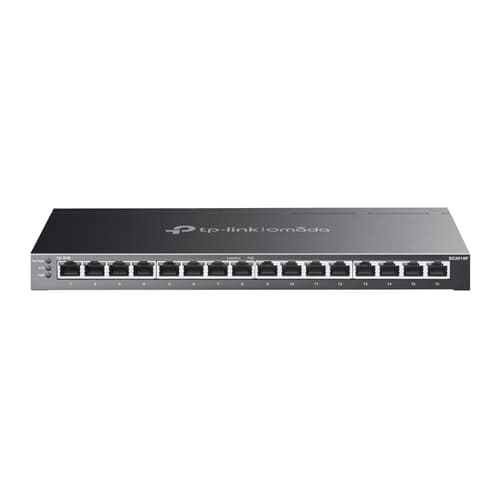

TP-Link JetStream TL-SG2016P V1 - Switch - L2+ - Managed - 16 x 10/100/1000 - rack-mountable, surface-mountable
Better
—
—
—
—
Stock2
£146.53

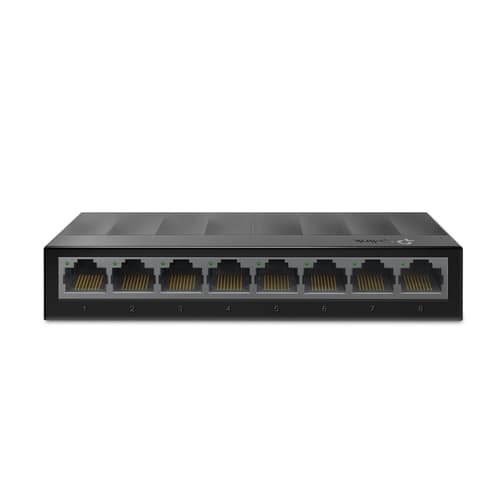

TP-Link LiteWave LS1008G - Switch - unmanaged - 8 x 10/100/1000 - desktop, wall-mountable
