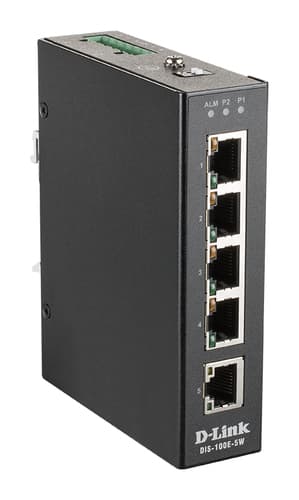

D-Link DIS 100E-5W - Switch - unmanaged - 5 x 10/100 - DIN rail mountable, wall-mountable - DC power
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10BASE-T, 100BASE-TX, 100BASE-T
- MAC address table: 1000 entries
- Rack mounting Stackable
Similar Products
Overview
D-Link DIS-100E-5W network switch Unmanaged L2 Fast Ethernet (10/100) Black
Specifications
Management features
- Switch type
- Unmanaged
- Switch layer
- L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Relay outputs
- 1
Network
- Networking standards
- IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 100BASE-T
- Full duplex
- Yes
- Flow control support
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
Data transmission
- MAC address table
- 1000 entries
- Store-and-forward
- Yes
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Product colour
- Black
- International Protection (IP) code
- IP30
- Wall mountable
- Yes
- DIN rail mounting
- Yes
Performance
- Plug and Play
- Yes
- Mean time between failures (MTBF)
- 219000 h
Power
- DC input voltage
- 12 - 58 V
- Power consumption (typical)
- 0.95 W
- Power consumption (max)
- 1.56 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 29.1 mm
- Depth
- 89.4 mm
- Height
- 109.2 mm
- Weight
- 320 g
Packaging data
- Package width
- 140 mm
- Package depth
- 178 mm
- Package height
- 83 mm
- Package weight
- 488 g
Technical details
- Shipping (inner) case height
- 20 cm
- Shipping (inner) case width
- 30.5 cm
- Shipping (inner) case length
- 43 cm
- Shipping (inner) case net weight
- 5.78 kg
- Products per shipping (inner) case
- 10 pc(s)
- Pallet gross weight (air)
- 226.4 kg
- Master (outer) cases per pallet (air)
- 36 pc(s)
- Products per pallet (air)
- 360 pc(s)
- Pallet gross length
- 120 cm
- Pallet gross width
- 110 cm
- Pallet height (air)
- 135 cm
- Pallet gross weight (sea)
- 330.7 kg
- Master (outer) cases per pallet (sea)
- 54 pc(s)
- Products per pallet (sea)
- 540 pc(s)
- Pallet height (sea)
- 195 cm
- Shipping (inner) case gross weight
- 5.79 kg
Certificates
- Certification
- UL 60950‑1 CE FCC
Logistics data
- Harmonized System (HS) code
- 85176990
