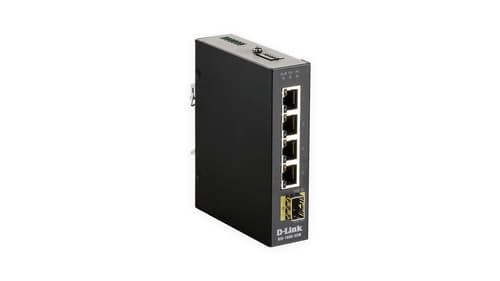

D-Link DIS 100G-5W - Switch - unmanaged - 5 x 10/100/1000 - DIN rail mountable, wall-mountable

Manuf P/N: DIS-100G-5W

APAXON#: 4675689

EAN: 790069437908

Unmanaged L2
Basic switching RJ-45 Ethernet ports quantity: 5
MAC address table: 2000 entries Switching capacity: 10 Gbit/s

Stock0

Price £104.37

Quantity

Notify me when available.

Product Summary

D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Extended Specification

Group 2944

Switch type

Unmanaged

Switch layer

Traffic shaping

Yes

Group 763

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Installed SFP+ modules quantity

Group 1141

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3z

10G support

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Group 2484

MAC address table

2000 entries

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Group 27921

Multicast support

Yes

Group 10881

Rack mounting

Product colour

Black

LED indicators

LAN, Power

Wall mountable

Yes

DIN rail mounting

Yes

Electromagnetic compatibility

FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

Group 1142

DC input voltage

12 - 58 V

Power consumption (max)

3.57 W

Group 9999

Power over Ethernet (PoE)

Group 1143

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

0 - 95%

Heat dissipation

12.18 BTU/h

Group 1144

Width

112.2 mm

Depth

29.1 mm

Height

89.4 mm

Weight

300 g

Group 2483

Package width

140 mm

Package depth

178 mm

Package height

83 mm

Package weight

500 g

Group 31974

Shipping (inner) case height

20.5 cm

Shipping (inner) case width

30.5 cm

Shipping (inner) case length

44 cm

Shipping (inner) case net weight

5 kg

Products per shipping (inner) case

10 pc(s)

Pallet gross weight (air)

220 kg

Master (outer) cases per pallet (air)

36 pc(s)

Products per pallet (air)

360 pc(s)

Pallet gross length

120 cm

Pallet gross width

110 cm

Pallet height (air)

136.5 cm

Pallet gross weight (sea)

321.6 kg

Master (outer) cases per pallet (sea)

54 pc(s)

Products per pallet (sea)

540 pc(s)

Pallet height (sea)

198 cm

Shipping (inner) case gross weight

5.64 kg

Group 41469

Certification

IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE

Group 24990

Harmonized System (HS) code

85176990

D-Link DIS 100G-5W - Switch - unmanaged - 5 x 10/100/1000 - DIN rail mountable, wall-mountable
