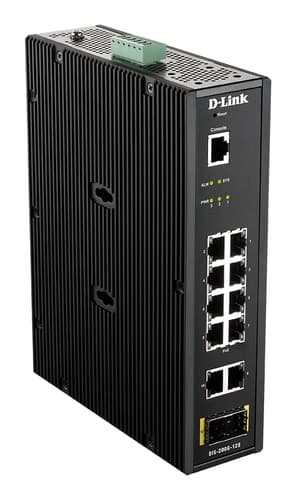

D-Link DIS 300G-12SW - Switch - Managed - 8 x 10/100/1000 + 4 x 100/1000 SFP - DIN rail mountable, wall-mountable

Manuf P/N: DIS-300G-12SW

APAXON#: 4675690

EAN: 790069437915

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 8000 entries

Stock0

Price £638.75

Quantity

Notify me when available.

Product Summary

D-Link DIS‑300G‑12SW Managed L2 Gigabit Ethernet (10/100/1000) Black

Extended Specification

Group 2944

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Traffic shaping

Yes

System event log

Yes

MIB support

RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Group 763

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Installed SFP+ modules quantity

SFP module slots quantity

Fiber optic connector

Group 1141

Networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

10G support

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Tagged VLAN, Protocol-based VLAN, Port-based VLAN

Number of VLANs

1024

Group 2484

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Group 2482

DHCP features

DHCP server, DHCP snooping, DHCP relay, DHCP client

Security algorithms

HTTPS, SNMP, SNMPv3, SSH

Authentication type

IEEE 802.1x, RADIUS

Queue scheduling algorithms

Weighted Round Robin (WRR)

Group 27921

Multicast support

Yes

Group 10881

Rack mounting

Product colour

Black

LED indicators

LAN, Status

International Protection (IP) code

IP30

Wall mountable

Yes

DIN rail mounting

Yes

Electromagnetic compatibility

FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6

Group 10882

Firmware upgradeable

Yes

Group 1142

DC input voltage

12 - 58 V

Power consumption (max)

17 W

Power protection features

Over current, Reverse polarity

Group 9999

Power over Ethernet (PoE)

Group 1143

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Group 1144

Width

61 mm

Depth

154 mm

Height

109 mm

Weight

1.09 kg

Group 2483

Package width

195 mm

Package depth

242 mm

Package height

118 mm

Package weight

1.53 kg

Group 31974

Shipping (inner) case height

27 cm

Shipping (inner) case width

41 cm

Shipping (inner) case length

60 cm

Shipping (inner) case net weight

15.3 kg

Products per shipping (inner) case

10 pc(s)

Pallet gross weight (air)

346.7 kg

Master (outer) cases per pallet (air)

20 pc(s)

Products per pallet (air)

200 pc(s)

Pallet gross length

120 cm

Pallet gross width

110 cm

Pallet height (air)

148.5 cm

Pallet gross weight (sea)

478.6 kg

Master (outer) cases per pallet (sea)

28 pc(s)

Products per pallet (sea)

280 pc(s)

Pallet height (sea)

2.02 m

Shipping (inner) case gross weight

16.5 kg

Group 41469

Certification

IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Group 24990

Harmonized System (HS) code

85176990

D-Link DIS 300G-12SW - Switch - Managed - 8 x 10/100/1000 + 4 x 100/1000 SFP - DIN rail mountable, wall-mountable
