This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

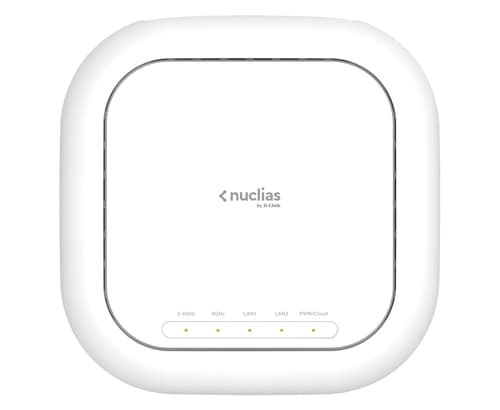

D-Link Nuclias DBA-2520P - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable
- 2.4 GHz 600 Mbit/s
- 5 GHz 1299 Mbit/s
- Maximum data transfer rate: 1900 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- SSID, WPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal
Similar Products
Overview
D-Link DBA-2520P wireless access point 1900 Mbit/s White Power over Ethernet (PoE)
Specifications
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- Maximum data transfer rate
- 1900 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 600 Mbit/s
- Maximum data transfer rate (5 GHz)
- 1299 Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Flow control support
- Yes
- Transmitting power
- 25 dBmW
Security
- Security algorithms
- SSID, WPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
- MAC address filtering
- Yes
- Number of SSID supported
- 16
Protocols
- DHCP server
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB 2.0 ports quantity
- 0
Power
- Power over Ethernet (PoE)
- Yes
- Output voltage
- 12 V
- Output current
- 2.5 A
- Power consumption (typical)
- 16.92 W
- Power consumption (max)
- 19.68 W
Design
- Placement
- Ceiling, Table, Wall
- Product colour
- White
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Antenna
- Antenna type
- Internal
- Antenna direction type
- Omni-directional
- Antennas quantity
- 2
- Antenna gain level (max)
- 4 dBi
Certificates
- Certification
- CE B, FCC B, UL, IC B
Weight & dimensions
- Width
- 224.5 mm
- Depth
- 223.8 mm
- Height
- 50 mm
- Weight
- 811 g
Packaging content
- Quantity per pack
- 1 pc(s)
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 65 °C
- Storage relative humidity (H-H)
- 5 - 95%
Logistics data
- Harmonized System (HS) code
- 85176990
