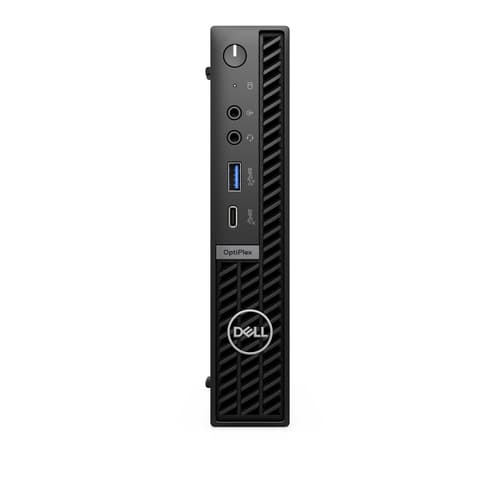

Dell OptiPlex 7020 Plus - Micro Core i7 i7-14700 / up to 5.4 GHz - vPro Enterprise - RAM 16 GB - SSD 512 GB - NVMe, Class 35 - UHD Graphics 770 - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6E) - Win 11 Pro - monitor: none - black, black (keyboard) - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Manuf P/N: 542TT
APAXON#: 10377455
EAN: 5397184802618
Dell OptiPlex 7020 Plus - Micro Core i7 i7-14700 / up to 5.4 GHz - vPro Enterprise - RAM 16 GB - SSD 512 GB - NVMe, Class 35 - UHD Graphics 770 - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6E) - Win 11 Pro - monitor: none - black, black (keyboard) - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
- Business Mini PC Black 180 W
- Intel® Core™ i7 i7-14700 Processor cores: 20
- 16 GB DDR5-SDRAM 1 x 16 GB
- 512 GB SSD
- Intel UHD Graphics 770
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth
- Windows 11 Pro 64-bit
Stock173
Price £0.00
Quantity
|
Similar Products
Product Summary
DELL OptiPlex 7020 Plus Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black
Extended Specification
Processor
Processor family
Intel® Core™ i7
Processor manufacturer
Intel
Processor model
i7-14700
Processor generation
Intel® Core™ i7 (14th gen)
Processor cores
20
Processor threads
28
Processor boost frequency
5.4 GHz
Performance cores
8
Efficient cores
12
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4.2 GHz
Performance-core base frequency
2.1 GHz
Efficient-core base frequency
1.5 GHz
Processor cache
33 MB
Processor cache type
Smart Cache
Number of processors installed
1
Number of processors supported
1
Processor base power
65 W
Maximum turbo power
219 W
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
ECC
No
Memory channels
Single-channel
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
SSD performance class
35
Compatible memory cards
Not supported
RAID support
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel UHD Graphics 770
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
Maximum on-board graphics card resolution
7680 x 4320 pixels
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Ports & interfaces
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Thunderbolt 3 ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
PowerShare
Yes
Number of USB ports with PowerShare support
1
DisplayPorts quantity
3
DisplayPort version
1.4a
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Combo headphone/mic port
Yes
DC-in jack
Yes
Number of rear USB ports
3
Number of front USB ports
2
Number of front audio ports
2
Number of rear audio ports
0
Design
Chassis type
MFF
Product colour
Black
Placement supported
Horizontal/Vertical
Water cooling system
No
Cable lock slot
Yes
Cable lock slot type
Kensington
Intel® vPro™ Platform Eligibility
Yes
Performance
Product type
Mini PC
Market positioning
Business
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC3246
Built-in speaker(s)
Yes
Number of speakers
1
Password protection
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
Windows 11 Pro
Operating system architecture
64-bit
Operating system language
German, Dutch, English, French, Italian
Trial software
No Microsoft Office Licence Included - 30 day Trial Offer Only
Power
Power supply
180 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating vibration
0.26 G
Non-operating vibration
1.37 G
Operating shock
40 G
Non-operating shock
105 G
Sustainability
Sustainability certificates
TCO, ENERGY STAR, EPEAT Climate +
Doesn't contain
PVC/BFR
Sustainability compliance
Yes
Weight & dimensions
Width
36 mm
Depth
178 mm
Height
182 mm
Packaging content
Input device model
Dell Pro Wireless Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
Cables included
AC
Carbon footprint
Total carbon footprint (kg of CO2e)
95.7
Carbon emissions, manufacturing (kg of CO2e)
62.205
Carbon emissions, logistics (kg of CO2e)
2.3925
Carbon emissions, energy usage (kg of CO2e)
30.624
Carbon emissions, end-of-life (kg of CO2e)
0.5742
Total carbon emissions, w/o use phase (kg of CO2e)
65.076
PAIA version
GaBi version 1, 2024
Display
Display included
No
