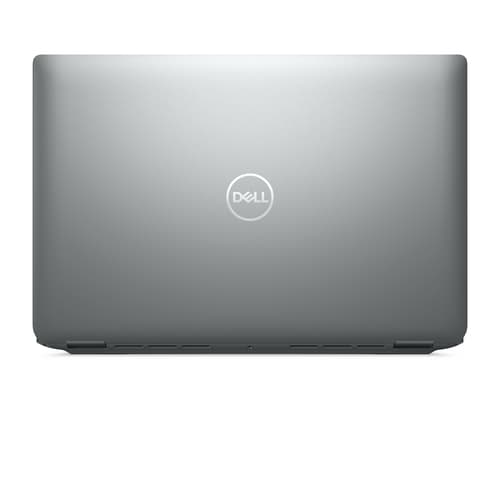

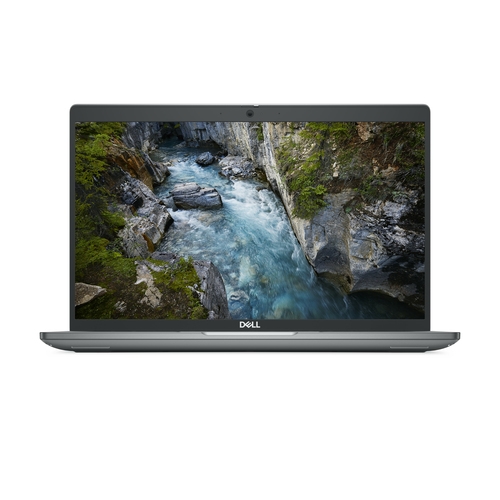

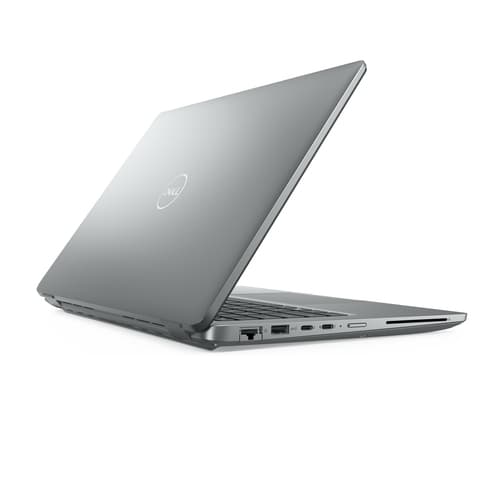

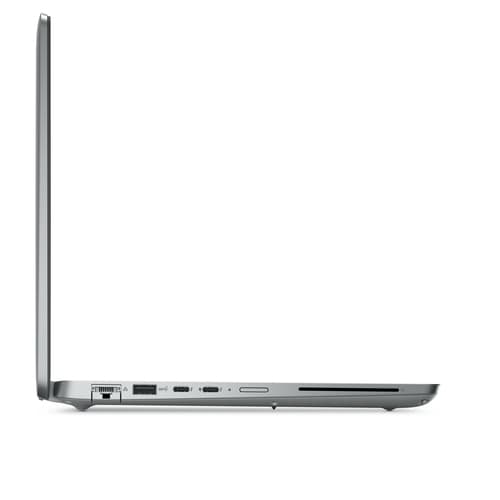

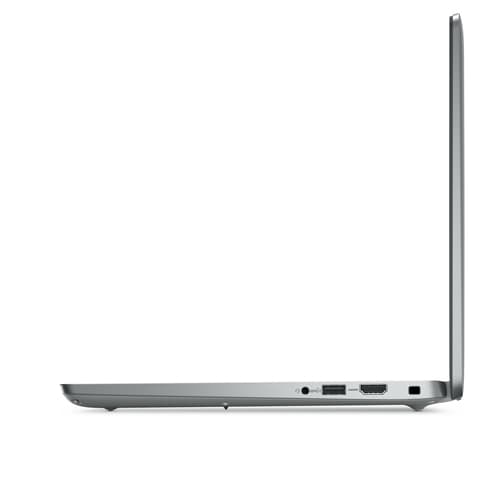

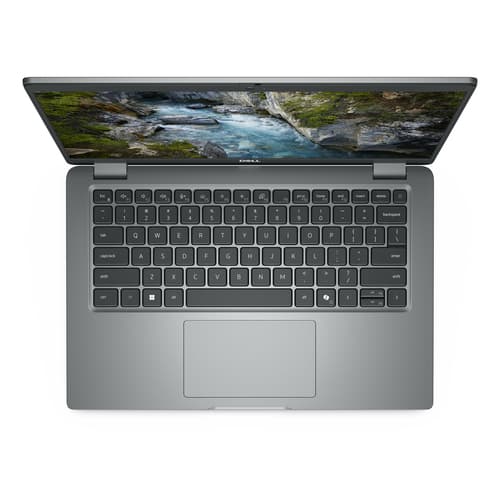

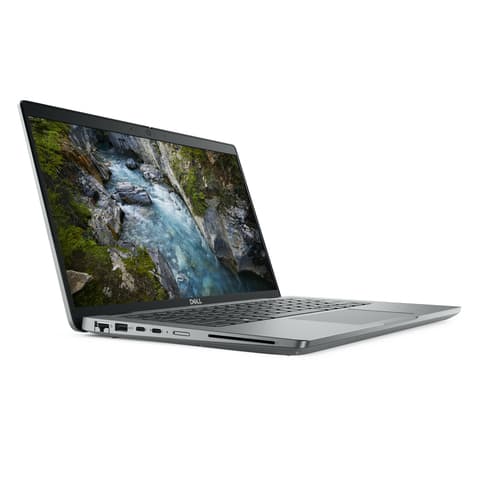

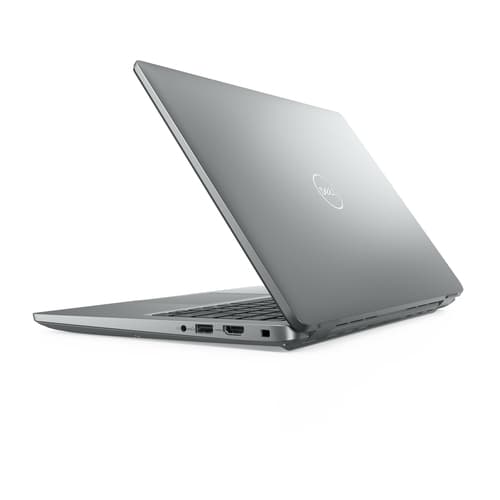

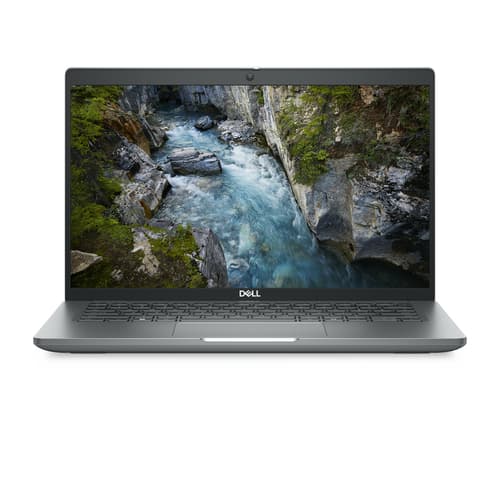

Dell Precision 3490

Manuf P/N: TXFGG
APAXON#: 10290256
EAN: 5397184871560
Dell Precision 3490 - Intel Core Ultra 7 - 155H / up to 4.8 GHz - Win 11 Pro - RTX 500 Ada - 32 GB RAM - 1 TB SSD NVMe, TLC, Class 35 - 14" IPS 1920 x 1080 (Full HD) - Gigabit Ethernet - Wi-Fi 6E - grey - BTP - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
  • Windows 11 Pro 64-bit
  • Intel Core Ultra 7 155H (24MB Cache)
  • 35.6 cm (14") Full HD 1920 x 1080 IPS, NVIDIA RTX 500 Ada (4GB GDDR6)
  • 32GB DDR5-SDRAM (2 x 16) & 1000GB SSD
  • Business Mobile workstation Clamshell Grey
  • Intel Core Ultra 7 155H Processor cores: 16
  • 35.6 cm (14") Full HD 1920 x 1080 pixels IPS LED backlight 16:9
  • 32 GB DDR5-SDRAM 2 x 16 GB
  • 1 TB SSD
  • NVIDIA RTX 500 Ada 4 GB Intel Arc Graphics
  • Wi-Fi 6E (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth
  • 54 Wh 130 W
Stock109
Price £1,808.91
Quantity
|

Similar Products

Dell Precision 3490

Dell Precision 3490

Your Choice
Stock109
£1808.91
CTO/Intel VROC motherboard activation

CTO/Intel VROC motherboard activation

Cheaper
Stock1
£133.84
Dell Precision 3490

Dell Precision 3490

Cheaper
Stock44
£1404.82
Dell Precision 3590

Dell Precision 3590

Cheaper
Stock142
£1464.00
Dell Precision 3591

Dell Precision 3591

Cheaper
Stock92
£1630.81

Product Summary

Ultra-light and mobile, this 14-inch workstation is perfect for professionals who need a compact device for productivity while multi-tasking across applications.

Extended Specification

Design
Product type
Mobile workstation
Product colour
Grey
Form factor
Clamshell
Market positioning
Business
Intel® vPro™ Platform Eligibility
Yes
Display
Display diagonal
35.6 cm (14") cm
Display resolution
1920 x 1080 pixels pixels
HD type
Full HD
Panel type
IPS
LED backlight
Yes
Pixel density
157 ppi ppi
Display diagonal (metric)
35.56 cm cm
RGB colour space
NTSC
Colour gamut
45% %
Touchscreen
No
Native aspect ratio
16:9
Anti-glare screen
Yes
Display brightness
250 cd/m² cd/m²
Pixel pitch
0.161 x 0.161 mm mm
Display response rise/fall
35 ms ms
Maximum refresh rate
60 Hz Hz
Contrast ratio (typical)
600:1
Processor
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
4.8 GHz GHz
Efficient-core Max Turbo Frequency
3.8 GHz GHz
Performance-core base frequency
1.4 GHz GHz
Efficient-core base frequency
0.9 GHz GHz
Low Power Efficient-core Base Frequency
700 MHz MHz
Processor cache type
Smart Cache
Processor base power
28 W W
Maximum turbo power
115 W W
Processor family
Intel Core Ultra 7
Processor manufacturer
Intel
Processor model
155H
Processor generation
Intel® Core™ Ultra (Series 1)
Processor cores
16
Processor threads
22
Processor boost frequency
4.8 GHz GHz
Performance cores
6
Low Power Efficient-core Max Turbo Frequency
2.5 GHz GHz
Processor cache
24 MB MB
Memory
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 16 GB GB
Internal memory
32 GB GB
Maximum internal memory
64 GB GB
Memory form factor
SO-DIMM
Memory slots
2x SO-DIMM
Memory data transfer rate
5600 MT/s MT/s
Non-ECC
Yes
Storage
Optical drive type
No
Total SSDs capacity
1 TB TB
Number of SSDs installed
1
Card reader integrated
No
Total storage capacity
1 TB TB
Storage media
SSD
SSD capacity
1 TB TB
SSD memory type
TLC
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
SSD performance class
35
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete graphics card model
NVIDIA RTX 500 Ada
On-board graphics card model
Intel Arc Graphics
Discrete GPU manufacturer
NVIDIA
Discrete graphics memory type
GDDR6
On-board graphics card family
Intel Arc Graphics
Discrete graphics card memory
4 GB GB
On-board GPU manufacturer
Intel
Audio
Audio system
MaxxAudio Pro
Number of built-in speakers
2
Number of microphones
2
Speakers manufacturer
Waves
Speaker power
2 W W
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP MP
Front camera resolution
1920 x 1080 pixels pixels
Front camera HD type
Full HD
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Mobile network connection
No
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Wi-Fi data rate (max)
2400 Mbit/s Mbit/s
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Bluetooth
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
PowerShare
Yes
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Software
Operating system architecture
64-bit
Operating system language
German, Dutch, English, French, Italian
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Battery
Battery capacity
54 Wh Wh
Number of battery cells
3
Battery voltage
11.4 V V
Battery recharge time
4 h h
Fast charging
Yes
Battery weight
220 g g
Power
USB charging current
6.5 A A
USB Type-C charging port
Yes
AC adapter power
130 W W
AC adapter frequency
50/60 Hz Hz
AC adapter input voltage
100 - 240 V V
USB Power Delivery (USB PD)
Yes
USB charging voltage
20,5 V V
Security
Cable lock slot
Yes
Smart card reader
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Cable lock slot type
Wedge
Operational conditions
Operating temperature (T-T)
0 - 35 °C °C
Storage temperature (T-T)
-40 - 65 °C °C
Operating relative humidity (H-H)
10 - 90% %
Operating shock
110 G G
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
-15.2 - 3048 m m
Non-operating altitude
-15.2 - 10668 m m
Non-operating shock
160 G G
Operating vibration
0.66 G G
Non-operating vibration
1.3 G G
Weight & dimensions
Weight
1.4 kg kg
Depth
212 mm mm
Height (front)
1.91 cm cm
Width
321.4 mm mm
Height (rear)
2.1 cm cm
Carbon footprint
Total carbon footprint (kg of CO2e)
104
Carbon emissions, energy usage (kg of CO2e)
23.296
Total carbon emissions, w/o use phase (kg of CO2e)
80.704
Carbon emissions, manufacturing (kg of CO2e)
75.816
Carbon emissions, logistics (kg of CO2e)
4.368
Carbon emissions, end-of-life (kg of CO2e)
0.624
PAIA version
GaBi version 1, 2024
Performance
Motherboard chipset
Intel SoC
Ambient light sensor
Yes
Keyboard
Numeric keypad
No
Pointing device
Touchpad
Keyboard backlit
Yes
Keyboard language
UK English
Sustainability
Sustainability compliance
Yes
Dell Precision 3490

Disclaimers

  • Actual configuration might differ from illustration
    Product Carbon Footprint (PCF):
    1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
    2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
    3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
    4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
    5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
    6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
    7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
    8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
    9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
    10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
    11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
    12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
    13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
    14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
    15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com.
