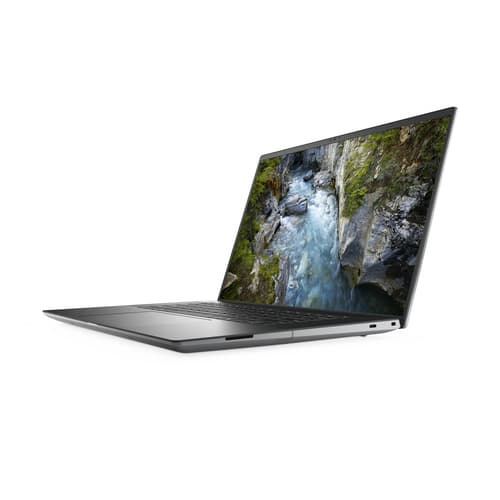

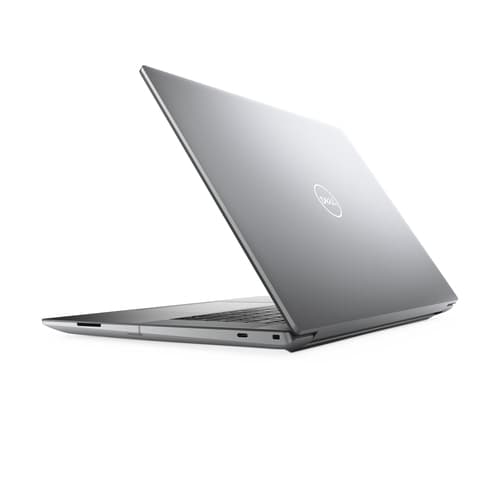

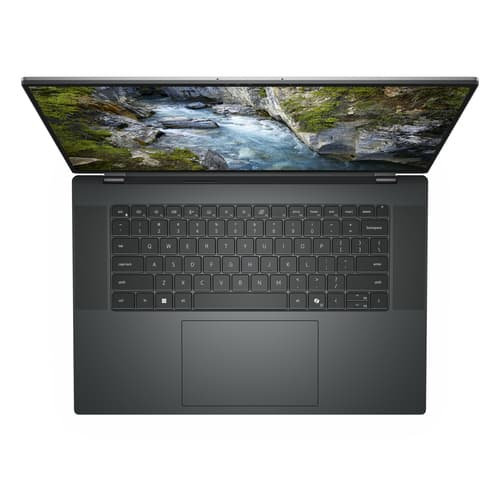

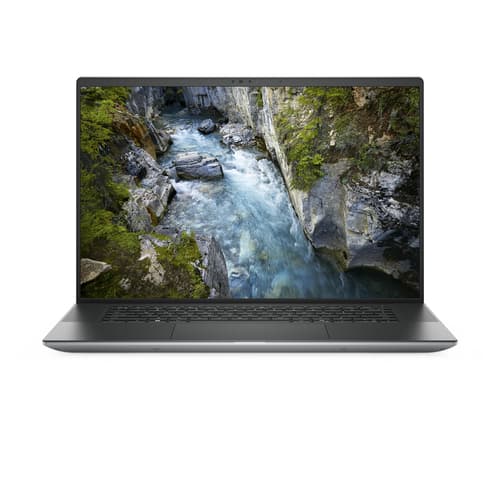

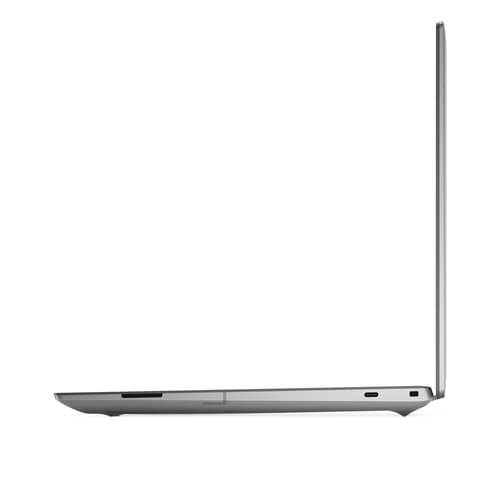

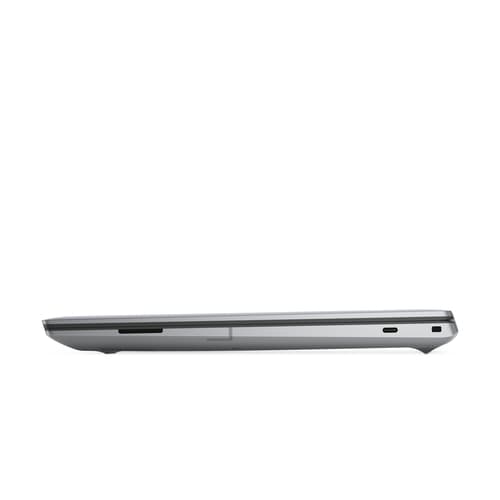

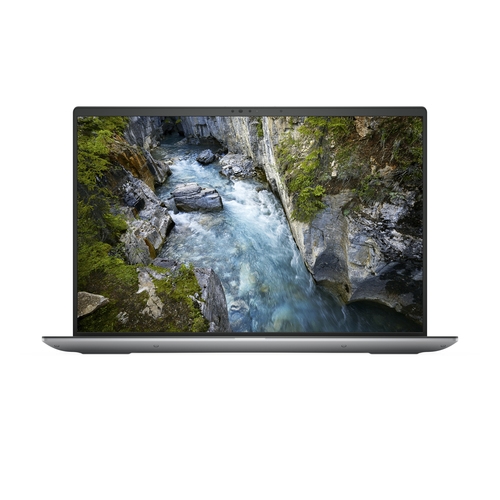

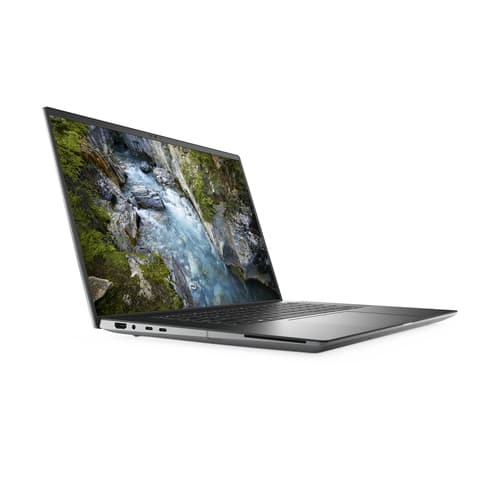

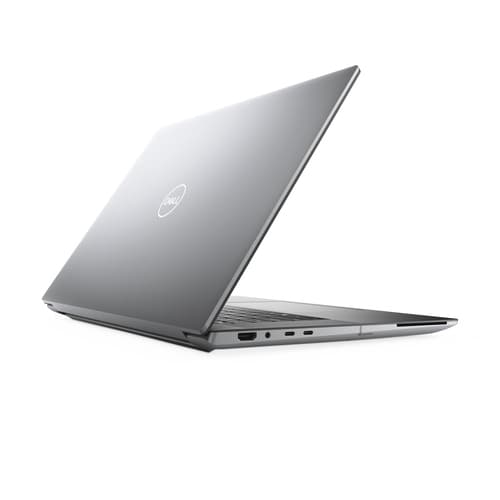

Dell Precision 5690

Name: Dell Precision 5690
Brand: Dell
SKU: WM34N
Price: 2130.95 GBP
Availability: OutOfStock

Manuf P/N: WM34N

APAXON#: 10376600

EAN: 5397184805619

Dell Precision 5690
Intel Core Ultra 7
165H / up to 5 GHz
vPro Enterprise
Win 11 Pro
RTX 1000 Ada
16 GB RAM
1 TB SSD NVMe, Class 40
16" IPS 1920 x 1200 (Full HD Plus)
Wi-Fi 7
grey
kbd: UK
BTP
with 3 Years ProSupport
Weight: 4.58 KG

40.6 cm (16") Full HD+ 1920 x 1200 IPS, NVIDIA RTX 1000 Ada (6GB GDDR6)
Windows 11 Pro 64-bit
Intel Core Ultra 7 165H (24MB Cache)
16GB LPDDR5x-SDRAM & 1000GB SSD
Business Mobile workstation Clamshell Grey
Intel Core Ultra 7 165H Processor cores: 16
40.6 cm (16") Full HD+ 1920 x 1200 pixels IPS LED backlight 16:10
16 GB LPDDR5x-SDRAM
1 TB SSD
NVIDIA RTX 1000 Ada 6 GB Intel Arc Graphics
Wi-Fi 7 (802.11be) Bluetooth
Lithium-Ion (Li-Ion) 99.5 Wh 165 W

StockOut of Stock

ConditionNew

Quantity

Notify me when available

Sales & Technical

Phone: 0161 464 9941

Email: sales@apaxon.co.uk

Manufacturer Warranty

Manufacturer warranty applies. Warranty periods and service levels vary by brand and product type.

Apaxon® is an authorised reseller of Dell. Warranty claims, repairs, replacements, and credits are fulfilled strictly in accordance with the manufacturer's terms and conditions.

Returns Policy

Business & Consumer Purchases

Orders placed for business use, resale, or onward supply are treated as Business-to-Business (B2B) transactions. B2B sales do not carry an automatic right of cancellation.

Nothing in this policy affects statutory consumer rights under UK law.

Consumer Cancellation (B2C Only)

Consumers may cancel within 14 days of delivery under the Consumer Contracts Regulations 2013.
Cancellation must be confirmed in writing within 14 days of delivery.
Goods must be returned within 14 days of cancellation.
Items must be unused beyond reasonable inspection and in resaleable condition.
Return shipping costs are the customer's responsibility.
Prepaid return labels are not provided for change-of-mind returns.
Refunds are processed after inspection and issued to the original payment method.

Faults & Delivery Issues

Transit damage or shortages must be reported within 48 hours of delivery.
Visible defects must be reported within 7 days of delivery.
Hidden faults must be reported within 7 days of discovery.
Returns require prior authorisation and a valid RMA reference.
Failure to report within these timeframes may affect eligibility for return or claim.

Business Returns (B2B)

Business customers do not have an automatic right to return non-faulty goods.

Supply chain authorisation
Restocking fees (typically 15–25%)
Inspection approval
Non-refundable outbound carriage

Return shipping is the responsibility of the buyer unless agreed otherwise.

Non-Returnable Items

Software, licences, activation keys, and digital products
Special-order or non-standard procurement items
Opened consumables
Items not in resaleable condition

Overview

The Dell Precision 5690 mobile workstation is designed for professionals seeking powerful performance and reliability in a portable package. Featuring a 1920 x 1200 Full HD display, this notebook delivers vivid visuals with anti-glare and Low Blue Light technology, ensuring comfortable viewing for extended periods. At its core, an Intel Core 7 16-core processor, combined with a 1 TB NVMe SSD, provides the speed and storage necessary for demanding applications and multitasking. Advanced connectivity options, including Wi-Fi 6E and Bluetooth technologies, allow for seamless collaboration and data transfer. Audio quality is not compromised, thanks to the dual array microphones, two tweeters, and two woofers, offering an immersive sound experience for multimedia and conferences. Security is paramount, with a discrete TPM 2.0 security chip and fingerprint reader ensuring your data is protected. Whether for work or play, the Dell Precision 5690 is equipped to handle your needs with efficiency and ease.

Specifications

Design

Product type: Mobile workstation
Product colour: Grey
Form factor: Clamshell
Market positioning: Business
Intel® vPro™ Platform Eligibility: Yes

Display

Panel type: IPS
Pixel density: 142 ppi ppi
RGB colour space: DCI-P3
Colour gamut: 100% %
Display diagonal: 40.6 cm (16") cm
Display resolution: 1920 x 1200 pixels pixels
Touchscreen: No
HD type: Full HD+
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 500 cd/m² cd/m²
Maximum refresh rate: 60 Hz Hz
Contrast ratio (typical): 1300:1

Processor

Processor family: Intel Core Ultra 7
Processor manufacturer: Intel
Processor model: 165H
Processor generation: Intel® Core™ Ultra (Series 1)
Processor cores: 16
Processor threads: 22
Processor boost frequency: 5 GHz GHz
Processor cache type: Smart Cache
Processor base power: 28 W W
Maximum turbo power: 115 W W
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5 GHz GHz
Efficient-core Max Turbo Frequency: 3.8 GHz GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz GHz
Performance-core base frequency: 1.4 GHz GHz
Efficient-core base frequency: 0.9 GHz GHz
Low Power Efficient-core Base Frequency: 700 MHz MHz
Processor cache: 24 MB MB

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Maximum frequency NPU: 1.4 GHz GHz
Sparsity support: Yes
Windows Studio effects support: Yes
AI datatype support on NPU: FP16, FP32, Int8
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory: 16 GB GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Memory channels: Dual-channel
Memory data transfer rate: 7467 MT/s MT/s

Storage

Total storage capacity: 1 TB TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB TB
Number of SSDs installed: 1
SSD capacity: 1 TB TB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
SSD performance class: 40
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

On-board graphics card: Yes
Discrete graphics card: Yes
Discrete graphics card model: NVIDIA RTX 1000 Ada
Discrete graphics memory type: GDDR6
On-board GPU manufacturer: Intel
On-board graphics card model: Intel Arc Graphics
Discrete graphics card memory: 6 GB GB
On-board graphics card family: Intel Arc Graphics

Audio

Number of built-in speakers: 4
Speakers manufacturer: Waves
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution (numeric): 2.07 MP MP
Front camera resolution: 1920 x 1080 pixels pixels
Front camera HD type: Full HD
Video capturing speed: 30 fps fps
Infrared (IR) camera: Yes

Network

Mobile network connection: No
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE200
WLAN controller manufacturer: Intel
Bluetooth: Yes
MIMO: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
MIMO type: Multi User MIMO

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Thunderbolt 4 ports quantity: 2
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes
USB 2.0 ports quantity: 0
HDMI version: 2.1

Performance

Accelerometer: Yes
Proximity sensor: Yes
Gyroscope: Yes
Hall sensor: Yes
Ambient light sensor: Yes

Keyboard

Numeric keypad: No
Pointing device: Touchpad
Keyboard backlit: Yes
Keyboard language: UK English
Copilot key: Yes

Software

Trial software: No Microsoft Office Licence Included - 30 day Trial Offer Only
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: German, Dutch, English, French, Italian

Battery

Battery capacity: 99.5 Wh Wh
Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 6
Battery voltage: 11.55 V V
Battery recharge time: 3 h h
Fast charging: Yes
Battery charge indicator: Yes
Battery weight: 363 g g

Power

AC adapter frequency: 50 - 60 Hz Hz
AC adapter power: 165 W W
AC adapter input voltage: 100 - 240 V V
USB Power Delivery (USB PD): Yes

Security

Fingerprint reader: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection: Yes
Cable lock slot: Yes
Cable lock slot type: Wedge

Operational conditions

Operating temperature (T-T): 0 - 35 °C °C
Storage temperature (T-T): -40 - 65 °C °C
Operating shock: 110 G G
Non-operating shock: 160 G G
Operating vibration: 0.66 G G
Operating relative humidity (H-H): 10 - 90% %
Storage relative humidity (H-H): 0 - 95% %
Operating altitude: -15.2 - 3048 m m
Non-operating altitude: -15.2 - 10668 m m
Non-operating vibration: 1.3 G G

Carbon footprint

Total carbon emissions, w/o use phase (kg of CO2e): 210.084
PAIA version: GaBi version 1, 2024
Total carbon footprint (kg of CO2e): 246
Carbon emissions, manufacturing (kg of CO2e): 200.49
Carbon emissions, logistics (kg of CO2e): 6.888
Carbon emissions, energy usage (kg of CO2e): 35.916
Carbon emissions, end-of-life (kg of CO2e): 2.46

Weight & dimensions

Weight: 2.03 kg kg
Width: 353.7 mm mm
Depth: 240.3 mm mm
Height (front): 2.05 cm cm
Height (rear): 2.22 cm cm

Packaging content

Cables included: AC

Actual configuration might differ from illustration
Product Carbon Footprint (PCF):
1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com.
