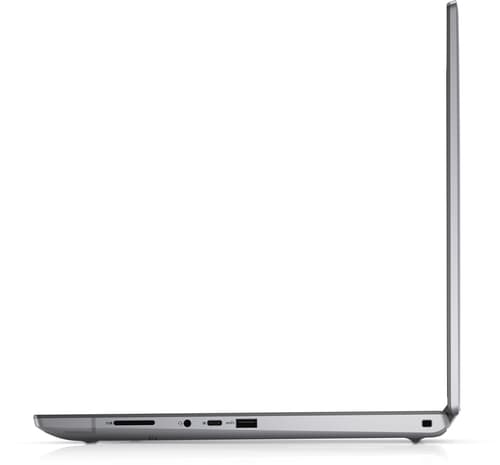

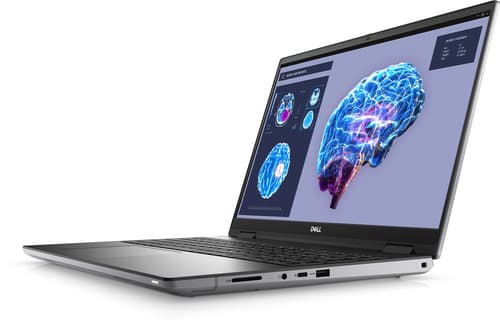

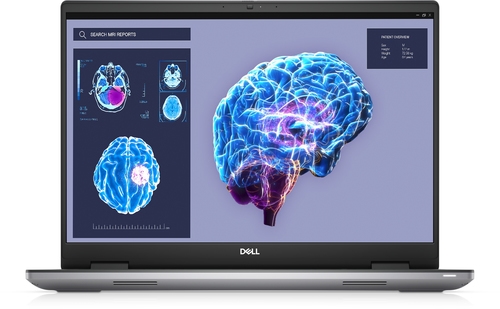

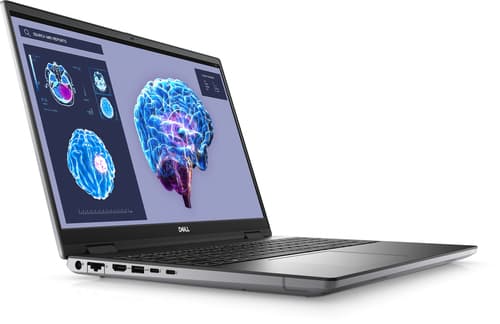

Dell Precision 7680
Manuf P/N: CM2DV
APAXON#: 8324513
EAN: 5397184810439
Dell Precision 7680 - Intel Core i9 - 13950HX / up to 5.5 GHz - Win 11 Pro - NVIDIA RTX 3500 Ada - 32 GB RAM - 1 TB SSD NVMe, Class 40 - 16" 1920 x 1200 (Full HD Plus) - Gigabit Ethernet - Wi-Fi 6E - grey - BTP - with 3 Years ProSupport
- Business Mobile workstation Clamshell Grey
- Intel® Core™ i9 i9-13950HX Processor cores: 24
- 40.6 cm (16") Full HD+ 1920 x 1200 pixels WLED LED backlight 16:10
- 32 GB DDR5-SDRAM 5600 MHz 1 x 32 GB
- 1 TB SSD
- NVIDIA RTX 3500 Ada 12 GB Intel® UHD Graphics
- Wi-Fi 6E (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth
- Lithium-Ion (Li-Ion) 93 Wh 240 W
- Windows 11 Pro 64-bit
- Intel Core i9-13950HX (36MB Cache)
- 40.6 cm (16") Full HD+ 1920 x 1200 WLED, NVIDIA RTX 3500 (12GB GDDR6)
- 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD
Stock50
Price £3,418.82
Quantity
|
Similar Products
Product Summary
Dell's ultra scalable 16" mobile workstation is optimized to your configurations.
Extended Specification
Design
Product type
Mobile workstation
Product colour
Grey
Form factor
Clamshell
Market positioning
Business
Introduction year
2023
Intel® vPro™ Platform Eligibility
Yes
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
Full HD+
Panel type
WLED
LED backlight
Yes
Native aspect ratio
16:10
Anti-glare screen
Yes
Display brightness
500 cd/m²
Pixel density
142 ppi
RGB colour space
DCI-P3
Colour gamut
100%
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1300:1
Display diagonal
40.6 cm (16") cm
Display resolution
1920 x 1200 pixels pixels
Display brightness
500 cd/m² cd/m²
Pixel density
142 ppi ppi
Colour gamut
100% %
Maximum refresh rate
60 Hz Hz
Processor
Processor family
Intel® Core™ i9
Processor manufacturer
Intel
Processor model
i9-13950HX
Processor generation
13th gen Intel® Core™ i9
Processor cores
24
Processor boost frequency
5.5 GHz
Efficient-core boost frequency
4 GHz
Processor cache
36 MB
Processor cache type
Smart Cache
Bus type
DMI4
Configurable TDP-down
45 W
Processor boost frequency
5.5 GHz GHz
Efficient-core boost frequency
4 GHz GHz
Processor cache
36 MB MB
Configurable TDP-down
45 W W
Memory
Internal memory
32 GB
Maximum internal memory
128 GB
Internal memory type
DDR5-SDRAM
Memory clock speed
5600 MHz
Memory form factor
CAMM module
Memory layout (slots x size)
1 x 32 GB
Memory channels
Dual-channel
Non-ECC
Yes
Internal memory
32 GB GB
Maximum internal memory
128 GB GB
Memory clock speed
5600 MHz MHz
Memory layout (slots x size)
1 x 32 GB GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC
Total storage capacity
1 TB TB
Total SSDs capacity
1 TB TB
SSD capacity
1 TB TB
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete graphics card model
NVIDIA RTX 3500 Ada
On-board graphics card model
Intel® UHD Graphics
Discrete graphics card memory
12 GB
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Discrete graphics card memory
12 GB GB
Audio
Audio chip
Realtek ALC3281
Number of built-in speakers
2
Speaker power
2 W
Built-in microphone
Yes
Number of microphones
2
Speaker power
2 W W
Camera
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Video capturing speed
30 fps
Infrared (IR) camera
Yes
Front camera resolution (numeric)
0.92 MP MP
Front camera resolution
1920 x 1080 pixels pixels
Video capturing speed
30 fps fps
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Ports & interfaces
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
Power adapter barrel connector
7.4 mm
Power adapter barrel connector
7.4 mm mm
Performance
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Keyboard
Numeric keypad
Yes
Pointing device
Touchpad
Keyboard backlit
Yes
Keyboard number of keys
100
Keyboard language
UK English
Software
Operating system installed
Windows 11 Pro
Operating system architecture
64-bit
Operating system language
Multilingual
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Battery
Battery weight
410 g g
Battery capacity
93 Wh
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery voltage
11.55 V
Battery recharge time
3 h
Fast charging
Yes
Battery weight
410 g
Battery capacity
93 Wh Wh
Battery voltage
11.55 V V
Battery recharge time
3 h h
Processor special features
Intel Flex Memory Access
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
CPU configuration (max)
1
Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Power
AC adapter power
240 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
12.3 A
AC adapter output voltage
19.5 V
DC-in jack
Yes
AC adapter power
240 W W
AC adapter frequency
50 - 60 Hz Hz
AC adapter input voltage
100 - 240 V V
AC adapter output current
12.3 A A
AC adapter output voltage
19.5 V V
Security
Cable lock slot
Yes
Cable lock slot type
Wedge
Smart card reader
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Password protection
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Operating temperature (T-T)
0 - 35 °C °C
Storage temperature (T-T)
-40 - 65 °C °C
Operating relative humidity (H-H)
10 - 90% %
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
-15.2 - 3048 m m
Non-operating altitude
-15.2 - 10668 m m
Operating shock
110 G G
Non-operating shock
160 G G
Operating vibration
0.66 G G
Non-operating vibration
1.3 G G
Weight & dimensions
Weight
2.6 kg
Width
356 mm
Depth
258.3 mm
Height (front)
2.23 cm
Height (rear)
2.32 cm
Weight
2.6 kg kg
Width
356 mm mm
Depth
258.3 mm mm
Height (front)
2.23 cm cm
Height (rear)
2.32 cm cm
Carbon footprint
Total carbon footprint (kg of CO2e)
471
Total carbon emissions, standard deviation (kg of CO2e)
93
Carbon emissions, manufacturing (kg of CO2e)
386.33
Carbon emissions, logistics (kg of CO2e)
16.322
Carbon emissions, energy usage (kg of CO2e)
65.791
Carbon emissions, end-of-life (kg of CO2e)
2.06
Total carbon emissions, w/o use phase (kg of CO2e)
405.209
PAIA version
1.3.2, 2022
Packaging content
Cables included
AC

Disclaimers
- Actual configuration might differ from illustration
Product Carbon Footprint (PCF):
1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com.
