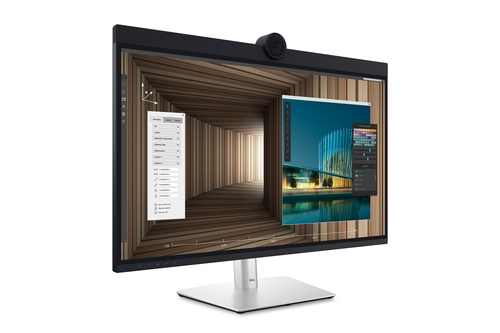

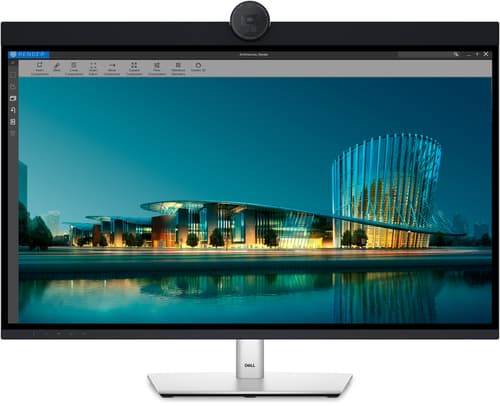

Dell UltraSharp U3224KBA
Manuf P/N: DELL-U3224KBA
APAXON#: 8468358
EAN: 5397184657140
Dell UltraSharp U3224KBA
LED monitor
32" (31.5" viewable)
6144 x 3456 6K @ 60 Hz
IPS Black
450 cd/m²
2000:1
5 ms
Thunderbolt 4, HDMI, Mini DisplayPort
speakers
BTO
with 3-Year Advanced Exchange Service and Premium Panel Exchange
Weight: 17.92 KG
LED monitor
32" (31.5" viewable)
6144 x 3456 6K @ 60 Hz
IPS Black
450 cd/m²
2000:1
5 ms
Thunderbolt 4, HDMI, Mini DisplayPort
speakers
BTO
with 3-Year Advanced Exchange Service and Premium Panel Exchange
Weight: 17.92 KG
- See every fine detail
- Vivid, lifelike color
- Superior image quality
- Remarkable connectivity
Stock5
Price £1,969.61
Quantity
|
Similar Products
Product Summary
32-inch monitor built for productivity. Featuring a 6K monitor with IPS Black panel technology for exceptional color, contrast and detail across a wide viewing angle.
Extended Specification
Display
Display diagonal
80 cm (31.5") cm
Display resolution
6144 x 3456 pixels pixels
Response time
8 ms ms
Maximum refresh rate
60 Hz Hz
Display brightness (typical)
450 cd/m² cd/m²
Viewing angle, horizontal
178° °
Viewing angle, vertical
178° °
Response time (fast)
5 ms ms
Pixel pitch
0.1134 x 0.1134 mm mm
Pixel density
223 ppi ppi
Horizontal scan range
30 - 220 kHz kHz
Vertical scan range
56 - 76 Hz Hz
Viewable size, horizontal
69.7 cm cm
Viewable size, vertical
39.2 cm cm
Display diagonal (metric)
79.94 cm cm
Colour gamut
100% %
sRGB coverage (typical)
100% %
Display diagonal
80 cm (31.5")
Display resolution
6144 x 3456 pixels
Native aspect ratio
16:9
Display technology
LCD
Touchscreen
No
HD type
6K Ultra HD
Panel type
IPS
Response time
8 ms
Screen shape
Flat
Contrast ratio (typical)
2000:1
Maximum refresh rate
60 Hz
Display number of colours
1.07 billion colours
Backlight type
LED
Display brightness (typical)
450 cd/m²
Anti-glare screen
Yes
Supported video modes
480p, 576p, 720p, 1080i, 1080p, 2160p
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Response time (fast)
5 ms
Pixel pitch
0.1134 x 0.1134 mm
Pixel density
223 ppi
Horizontal scan range
30 - 220 kHz
Vertical scan range
56 - 76 Hz
Viewable size, horizontal
69.7 cm
Viewable size, vertical
39.2 cm
Display diagonal (metric)
79.94 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
DisplayHDR 600
Surface hardness
3H
Colour gamut standard
DCI-P3
Colour gamut
100%
sRGB coverage (typical)
100%
Multimedia
RMS rated power
28 W W
Megapixel (approx.)
8 MP MP
Built-in speaker(s)
Yes
Built-in camera
Yes
Number of speakers
2
RMS rated power
28 W
Megapixel (approx.)
8 MP
Built-in microphone
Yes

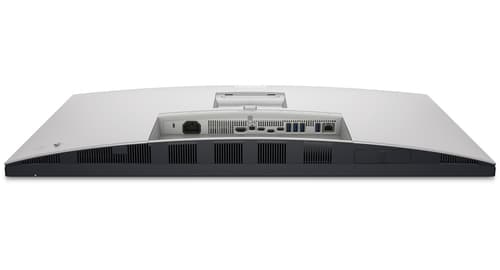

Ports & interfaces
USB Power Delivery up to
140 W W
Built-in USB hub
Yes
HDMI
Yes
Headphone out
No
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
USB Type-A downstream ports quantity
5
USB Type-C downstream ports quantity
3
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
140 W
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
0
DisplayPort version
2.1
Mini DisplayPorts quantity
1
Thunderbolt 4 ports quantity
2
HDCP
Yes
HDCP version
2.2
Ergonomics
Panel mounting interface
100 x 100 mm mm
Adjustable height (max)
15 cm cm
Pivot angle
-90 - 90° °
Swivel angle range
-30 - 30° °

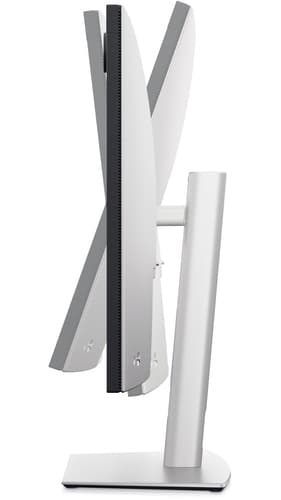

Tilt angle range
-5 - 21° °
VESA mounting
Yes
Cable lock slot
Yes
Height adjustment
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot type
Kensington
Adjustable height (max)
15 cm

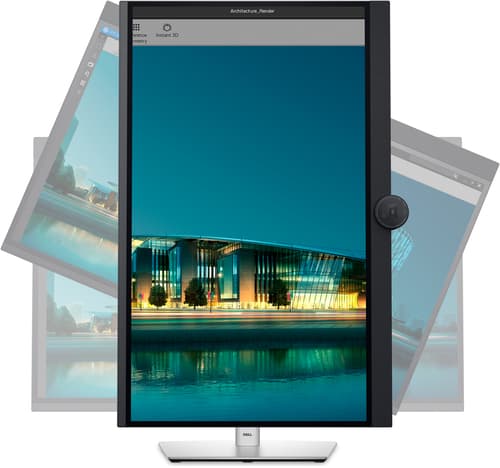

Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes

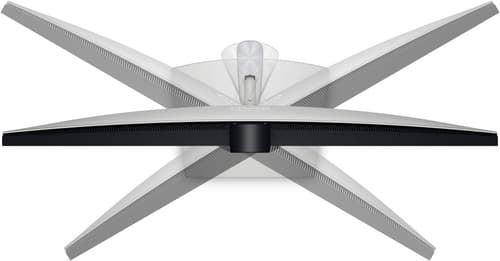

Swivel angle range
-30 - 30°
Tilt adjustment
Yes
Tilt angle range
-5 - 21°
On Screen Display (OSD)
Yes
Power
Energy consumption (SDR) per 1000 hours
68 kWh kWh
Energy consumption (HDR) per 1000 hours
83 kWh kWh
Power consumption (typical)
68.1 W W
Power consumption (standby)
0.5 W W
Power consumption (max)
420 W W
Power consumption (off)
0.3 W W
AC input voltage
100 - 220 V V
AC input frequency
50/60 Hz Hz
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
68 kWh
Energy consumption (HDR) per 1000 hours
83 kWh
Power consumption (typical)
68.1 W
Power consumption (standby)
0.5 W
Power consumption (max)
420 W
Power consumption (off)
0.3 W
AC input voltage
100 - 220 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1470654
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-20 - 60 °C °C
Operating relative humidity (H-H)
10 - 80% %
Storage relative humidity (H-H)
5 - 90% %
Operating altitude
0 - 5000 m m
Non-operating altitude
5000 - 12192 m m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 5000 m
Non-operating altitude
5000 - 12192 m
Weight & dimensions
Width (with stand)
717.4 mm mm
Depth (with stand)
237 mm mm
Height (with stand)
682.6 mm mm
Weight (with stand)
13 kg kg
Width (without stand)
717.4 mm mm
Depth (without stand)
66.3 mm mm
Height (without stand)
486.6 mm mm
Weight (without stand)
8.61 kg kg
Bezel width (side)
1.03 cm cm
Bezel width (top)
4.29 cm cm
Bezel width (bottom)
2.31 cm cm
Width (with stand)
717.4 mm
Depth (with stand)
237 mm
Height (with stand)
682.6 mm
Weight (with stand)
13 kg
Width (without stand)
717.4 mm
Depth (without stand)
66.3 mm
Height (without stand)
486.6 mm
Weight (without stand)
8.61 kg
Bezel width (side)
1.03 cm
Bezel width (top)
4.29 cm
Bezel width (bottom)
2.31 cm
Packaging data
Package weight
17.7 kg kg
Package weight
17.7 kg
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
Design
Market positioning
Business
Product colour
Black, Silver
Front bezel colour
Black
Detachable stand
Yes
Feet colour
Silver
Network
Wi-Fi
No
Ethernet LAN
Yes
Packaging content
Stand included
Yes
Cables included
AC, USB Type-A to USB Type-C
Quick start guide
Yes
Sustainability
Sustainability certificates
ENERGY STAR
Doesn't contain
PVC/BFR
Carbon footprint
Total carbon footprint (kg of CO2e)
1161
Total carbon emissions, standard deviation (kg of CO2e)
376
Carbon emissions, manufacturing (kg of CO2e)
486.82
Carbon emissions, logistics (kg of CO2e)
85.414
Carbon emissions, energy usage (kg of CO2e)
578.648
Carbon emissions, end-of-life (kg of CO2e)
10.15
Total carbon emissions, w/o use phase (kg of CO2e)
582.352
PAIA version
1.3.2, 2022
Other features
Heavy metals free
Hg (mercury)
Compliance certificates
RoHS
Ethernet LAN (RJ-45) ports
1

Disclaimers
- Actual configuration might differ from illustration
Product Carbon Footprint (PCF):
1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com.
