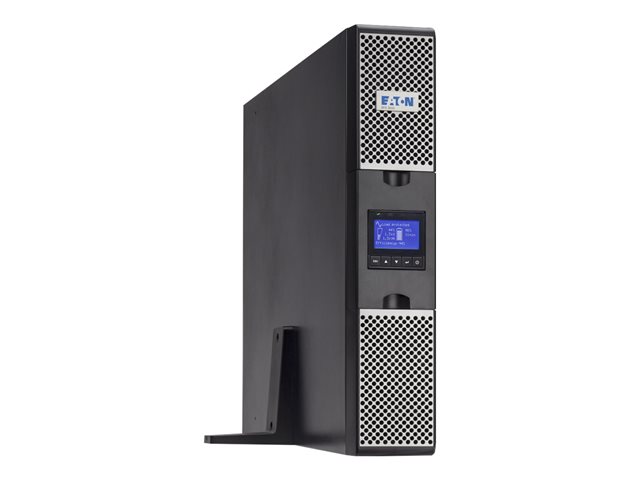

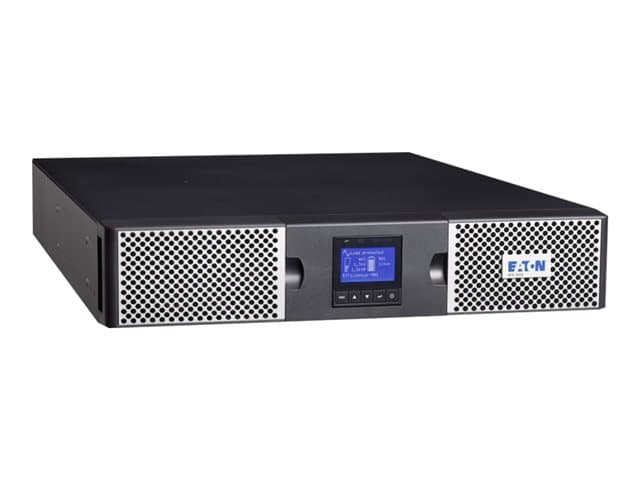

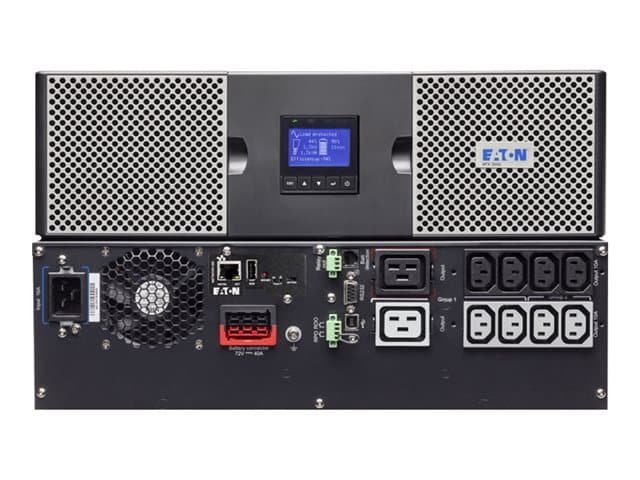

Eaton 9PX - Netpack - UPS (rack-mountable / external)

Manuf P/N: 9PX3000IRTNBS
APAXON#: 7221584
EAN: 3553340620287
Eaton 9PX
Netpack
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
3000 Watt
3000 VA
1-phase
9 Ah
Ethernet 10/100, RS-232, USB
output connectors: 10
2U
19"
black, silver
Weight: 34.48 KG
  • Double conversion topology
  • Constantly monitors power conditions and regulates voltage and frequency
  • Internal bypass allows service continuity in case of UPS fault

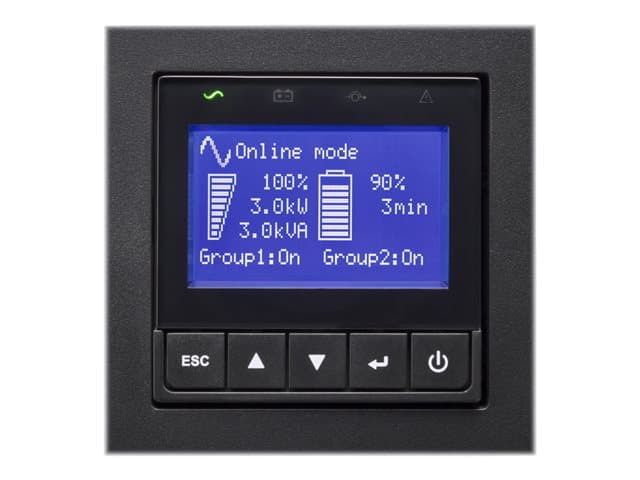

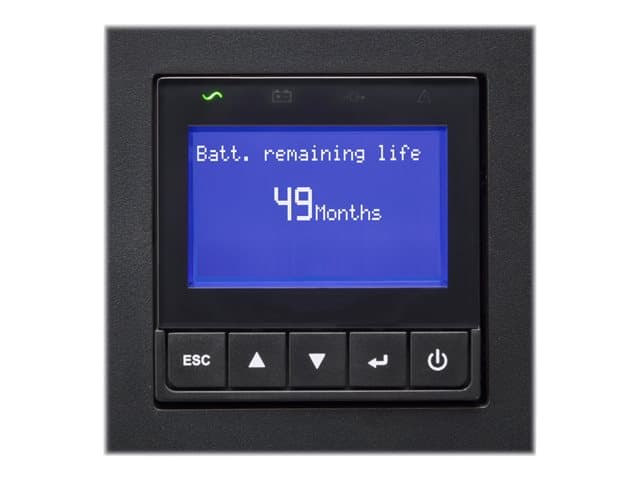

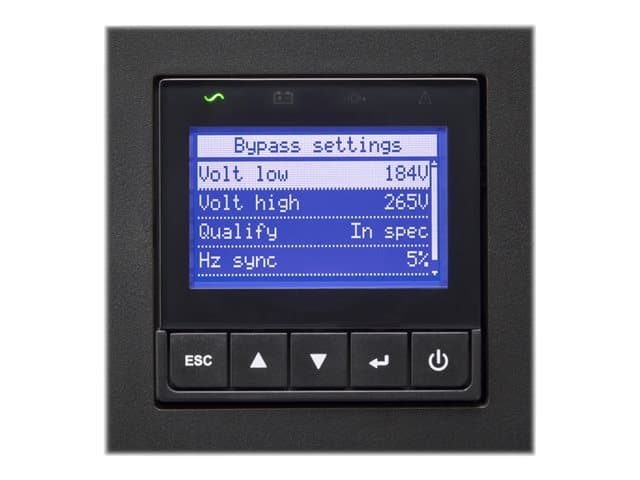

  • Next-generation graphical LCD display
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • Meter energy consumption (down to the managed outlet groups)
  • Hot swappable batteries
  • Advanced Battery Management (ABM) technology to increase battery lifetime
UK Stock8
ConditionNew
Price £ 2,582.96
Price inc. VAT
£ 3,099.55
Quantity
|

Sales & Technical Enquiries

Product Summary

As an industry professional, and because of rising energy costs and the business need for energy-efficient performance, you'll be looking for ways to reduce costs and consumption. The Eaton 9PX UPS enables you to secure all your mission-critical applications, giving you the reductions in energy usage and costs you need. Essentially, the Eaton 9PX UPS gives you the chance to optimize power density and minimize capital and operating expenditure, along with the assurance that, should the power go down, critical processes will be maintained in your IT infrastructures and other applications.

Extended Specification

General
Rack Size
19"
Colour
Black, silver
Height (Rack Units)
2U
Device Type
UPS - rack-mountable / external
Connections & Expansion
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Interfaces

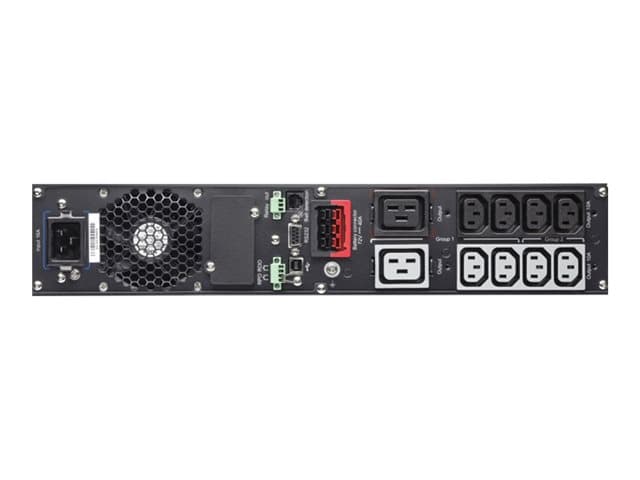

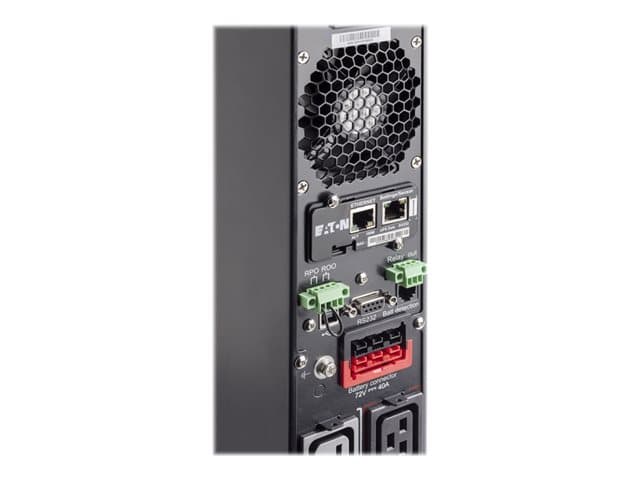

1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B, 1 x remote power (on/off) - mini terminal block, 1 x remote power off - mini terminal block, 1 x relay output - mini terminal block, 1 x management (Fast Ethernet) - RJ-45, 1 x RS-232 / sensor - RJ-45
Manufacturer Warranty
Service & Support
Limited warranty - 3 years, Limited warranty - batteries - 2 years
Network
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
Telnet, SNMP 3, HTTP, SSH, CLI, SMTP, DHCP, IPv6
Miscellaneous
Rack Mounting Kit
Included
Included Accessories
Tower stand
Cables Included
2 x power cable - external, USB cable - external, Serial cable - external, Power cable - external - 1.8 m
Features
Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, double conversion
Compliant Standards
TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dB
Humidity Range Operating
0 - 96% (non-condensing)
Battery
Quantity
6
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Features
Sealed
Type
Expandable
Run Time (Up To)
3 min at full load, 60 min at 300 Watts, 36 min at 500 Watts, 22 min at 800 Watts, 13 min at 1200 Watts, 7 min at 1800 Watts, 4 min at 2500 Watts
Power Device
Frequency Provided
50/60 Hz
Input Voltage
AC 200/208/220/230/240 V
Output Waveform
Sinewave
UPS Technology
On-line
Frequency Required
40 - 70 Hz
Input Connectors
1 x power BS
Power Factor (PF)
0.99
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Input Wiring
1-phase
Power Capacity
3000 Watt / 3000 VA
Power Output Connectors Details
8 x power IEC 60320 C13, 2 x power IEC 60320 C19
Input Voltage Range
AC 100 - 276 V
Efficiency
98% Eco mode, 94% online mode
Weight & Dimensions
Width
44 cm
Depth
60.5 cm
Height
8.65 cm
Weight
28.143 kg
Eaton 9PX - Netpack - UPS (rack-mountable / external)

Disclaimers

  • Actual configuration might differ from illustration
