This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.
Freight charge of 1% to be added for APC kit, Please add SKU 2550388 at 1% of total order value to your PO when placing order
Similar Products
Overview

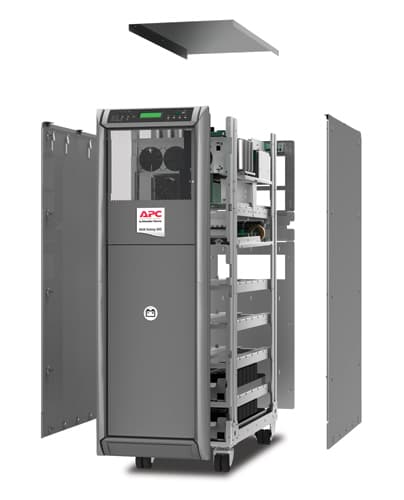

APC G3HT20KHB2S, Double-conversion (Online), 20 kVA, 16000 W, Sine, 323 V, 477 V
Specifications
Features
- Output power capacity
- 20 kVA kVA
- Waveform
- Sine
- Input operation voltage (min)
- 323 V V
- Input operation voltage (max)
- 477 V V
- Input frequency
- 45/65 Hz Hz
- Output frequency
- 50/60 Hz Hz
- Maximum current
- 43 A A
- Output voltage Total Harmonic Distortion (THD)
- 5% %
- Noise level
- 54.5 dB dB
- Output power
- 16000 W W
- UPS topology
- Double-conversion (Online)
- Output operation voltage (min)
- 380 V V
- Output operation voltage (max)
- 415 V V
- Crest factor
- 2.5:1
- Emergency Power Off (EPO)
- Yes
Ports & interfaces
- AC outlet types
- Hard Wire 5-wire (3PH + N + G)
- Power plug
- Terminal
- AC outlets quantity
- 1 AC outlet(s) AC outlet(s)
- SmartSlot
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 192 V V
Design
- Form factor
- Tower
- Display type
- LCD
- International Protection (IP) code
- IP20
- Product colour
- Black, Grey
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C °C
- Storage temperature (T-T)
- -10 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 9000 m m
- Storage relative humidity (H-H)
- 0 - 95% %
Weight & dimensions
- Width
- 400 mm mm
- Depth
- 950 mm mm
- Height
- 1300 mm mm
- Weight
- 375 kg kg
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TÜV, VFI-SS-111
Packaging content
- Manual
- Yes
- Quick installation guide
- Yes
Packaging data
- Software CD
- Yes
- Package width
- 800 mm mm
- Package depth
- 965 mm mm
- Package height
- 1440 mm mm
- Package weight
- 400 kg kg
