This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.
Freight charge of 1% to be added for APC kit, Please add SKU 2550388 at 1% of total order value to your PO when placing order
Similar Products
Overview

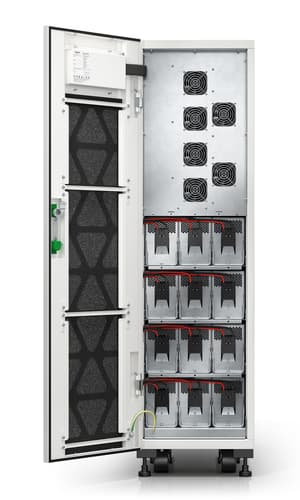

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
Specifications
Operational conditions
- Operating altitude
- 0 - 999.9 m m
- Non-operating altitude
- 0 - 15000 m m
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage temperature (T-T)
- -15 - 40 °C °C
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage relative humidity (H-H)
- 0 - 95% %
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Packaging content
- Management card included
- No
- Quick installation guide
- Yes
Packaging data
- Package weight
- 494 kg kg
- Package width
- 563 mm mm
- Package depth
- 1014 mm mm
- Package height
- 1640 mm mm
Logistics data
- Harmonized System (HS) code
- 85078000
Features
- Input frequency
- 45/65 Hz Hz
- Output operation voltage (max)
- 415 V V
- Number of input phases
- 3
- Noise level
- 60 dB dB
- Output power capacity
- 20 kVA kVA
- Input operation voltage (min)
- 304 V V
- Input operation voltage (max)
- 477 V V
- Output operation voltage (min)
- 380 V V
- Output frequency
- 50/60 Hz Hz
- Maximum current
- 37 A A
- Output power
- 20000 W W
- Output voltage Total Harmonic Distortion (THD)
- 3% %
- Input current Total Harmonic Distortion (THD)
- 3% %
- UPS topology
- Double-conversion (Online)
- Waveform
- Pure sine
- Number of output phases
- 3
- Input power factor
- 0.99
Ports & interfaces
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 240 V V
- Number of batteries supported
- 3

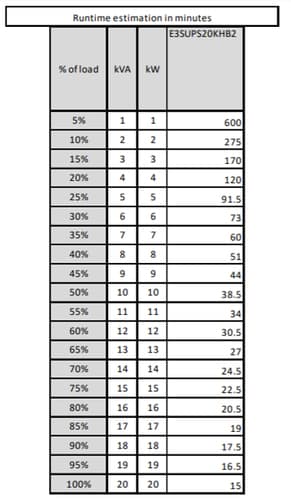

- Typical backup time at full load
- 30 min min
Design
- Product colour
- White
- Form factor
- Tower
- Display type
- LED
- International Protection (IP) code
- IP20
Weight & dimensions
- Width
- 380 mm mm
- Height
- 1400 mm mm
- Depth
- 928 mm mm
- Weight
- 446 kg kg
Other features
- Output voltage
- 400 V V
