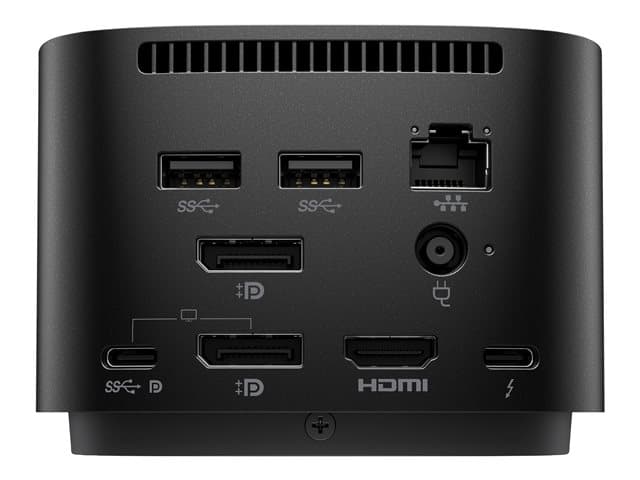

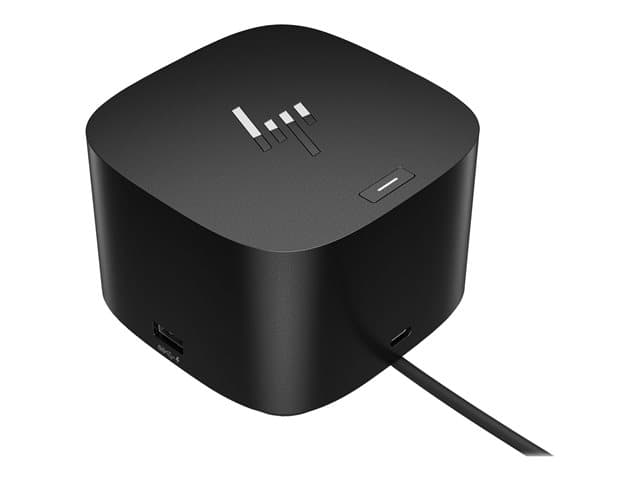

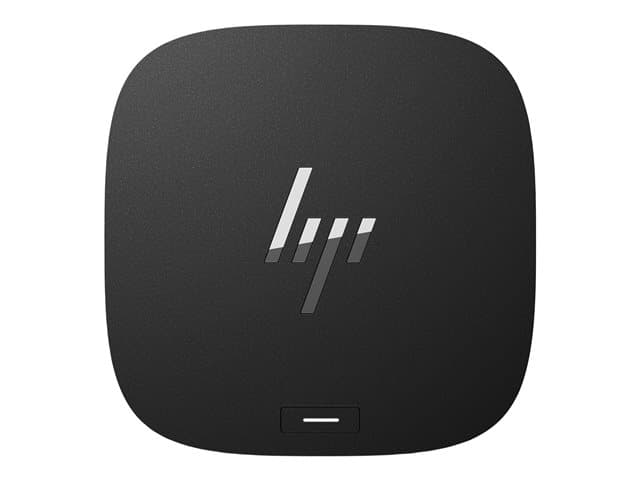

HP Thunderbolt Dock G4 - Docking station - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE - 120 Watt - United Kingdom
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3

HP Thunderbolt Dock G4 - Docking station - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE - 120 Watt - United Kingdom

Manuf P/N: 4J0A2AA#ABU
APAXON#: 7418545
EAN: 196068757434
HP Thunderbolt Dock G4 - Docking station - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE - 120 Watt - United Kingdom
  • Wired
  • Host interface: Thunderbolt 4
  • USB Power Delivery (USB PD)
  • Ethernet LAN
  • Cable lock slot
Stock385
Price £167.93
Quantity
|

Product Summary

Boost your security, productivity, and connectivity with this Thunderbolt™ 4 dock. It protects your network and devices from the moment you log in, supports multi-OS compatibility[1], and can support up to four 4K displays[2]. Ideal for ITDMs and hybrid workers, this dock also makes home or office device management easy.

Main Specifications

Product Description
HP Thunderbolt Dock G4 - docking station - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE
Product Type
Docking station
Video Interfaces
2 x DP, Thunderbolt, USB-C, HDMI
Dimensions (WxDxH)
9.8 cm x 9.8 cm x 6.8 cm
Weight
760 g
Colour

Black

Localisation

English / United Kingdom

Networking

Gigabit Ethernet, 2.5 Gigabit Ethernet

Power

Power adapter AC 100-240 V (50 - 60 Hz) 120 Watt Power Provided

Manufacturer Warranty

1-year warranty

What's in the box

Dock, power supply, power cord, warranty

Extended Specification

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 4
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Microphone in
No
Headphone outputs
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
HDMI version
2.0
DisplayPorts quantity
2
DisplayPort version
1.4
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
Product colour
Black
Cable lock slot
Yes
Cable lock slot type
Kensington
Country of origin
China, Taiwan
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output voltage
19.5 V
Output current
6.15 A
Software
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Yes
Weight & dimensions
Width
98 mm
Depth
98 mm
Height
68 mm
Weight
760 g
Packaging data
Package width
275 mm
Package depth
143 mm
Package height
148.5 mm
Package weight
760 g
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Logistics data
Harmonized System (HS) code
84733020
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 196068757403; (ABU) 196068757434
HP GTIN (EAN/UPC)
196068757403, 196068757434
HP Thunderbolt Dock G4 - Docking station - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE - 120 Watt - United Kingdom

Disclaimers

  • [1] Backward compatible with USB-C® alt mode, ports will work at USB-C® alt mode speeds which are dependent on host specifications.
    [2] For USB-C® alt mode functionality, host PC must support Thunderbolt™ 3 or Thunderbolt™ 4.
    [3] HP Sure Start on HP Thunderbolt G4 dock supports firmware integrity verification and recovery it does not include real-time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
    [4] For USB-C® alt mode functionality, host PC must support the DisplayPort™ Alt mode protocol through its USB-C® port. Charging and port replication is supported on notebooks that have implemented USB-C® Alt Mode industry specifications. Power button to turn on or wake the system, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through S0, S3, S4, S5 warm and cold dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs.
    [5] Requires infrastructure to support 2.5Gb ethernet speeds.
    [6] Windows Management Instrumentation installation required. Requires Windows 10 or higher.
