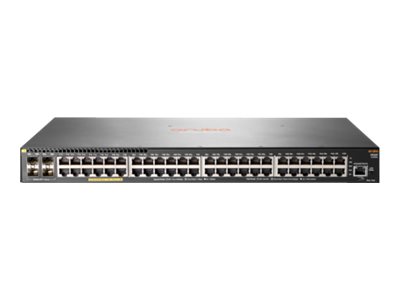

HPE Aruba 2930F 48G PoE+4SFP+Swch
Manuf P/N: JL256A#ACC
APAXON#: 4031576
EAN: 5054444037677
HPE Aruba 2930F 48G PoE+4SFP+Swch
Weight: 6.62 KG
Weight: 6.62 KG
- High-performance access layer switches
- Performance and power at the edge
- Security and quality of service you can rely on
- Simplify with integrated wired/wireless management
Stock22
Price £ 2,025.56
Price inc. VAT
£ 2,430.67
Quantity
|
Similar Products
HPE Aruba Networking AP-605R12 (US) Dual Radio Tri Band 2x2 Wi-Fi 6E CAT12 LTE Remote AP
Cheaper
—
—
—
—
Stock9876
£1753.51
Product Summary
The Aruba 2930F Switch series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.
Extended Specification
General
Flash Memory
4 GB
Subtype
Gigabit Ethernet
MAC Address Table Size
32K entries
Authentication Method
RADIUS, PAP, CHAP, TACACS, TACACS+
Encryption Algorithm
MD5, SSL
PoE Budget
370 W
Enclosure Type
Rack-mountable 1U
Power Over Ethernet (PoE)
PoE+
RAM
1 GB DDR3 SDRAM
Device Type
Switch - 48 ports - L3 - Managed - stackable
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Features
Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Ports
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Capacity
IPv4 routing table entries: 10000
Performance
Throughput: 112 Mpps Switching capacity: 176 Gbps Latency (1 Gbps): 3.8 µs Latency (10 Gbps): 1.6 µs
Processor
1 x ARM Cortex-A9: 1.016 GHz
Connections & Expansion
Installed Modules Qty (Max)
0 (installed) / 4 (max)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot1 (total) / 1 (free) x Expansion Slot
Interfaces
48 x 1000Base-T RJ-45 PoE+ 4 x Gigabit / 10Gbit LAN SFP+ 1 x serial (console)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Miscellaneous
Localisation
English / United Kingdom
Included Accessories
Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards
CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Power
Installed Qty
1
Voltage Required
AC 120/230 V
80 PLUS Certification
80 PLUS Silver
Power Device
Internal power supply
Software / System Requirements
Software Included
Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Max Storage Temperature
70 °C
Min Storage Temperature
-40 °C
Humidity Range Operating
15 - 95% (non-condensing)
Humidity Range Storage
15 - 90% (non-condensing)
Weight & Dimensions
Height
4.39 cm
Width
44.25 cm
Weight
4.46 kg
Depth
30.42 cm
