This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

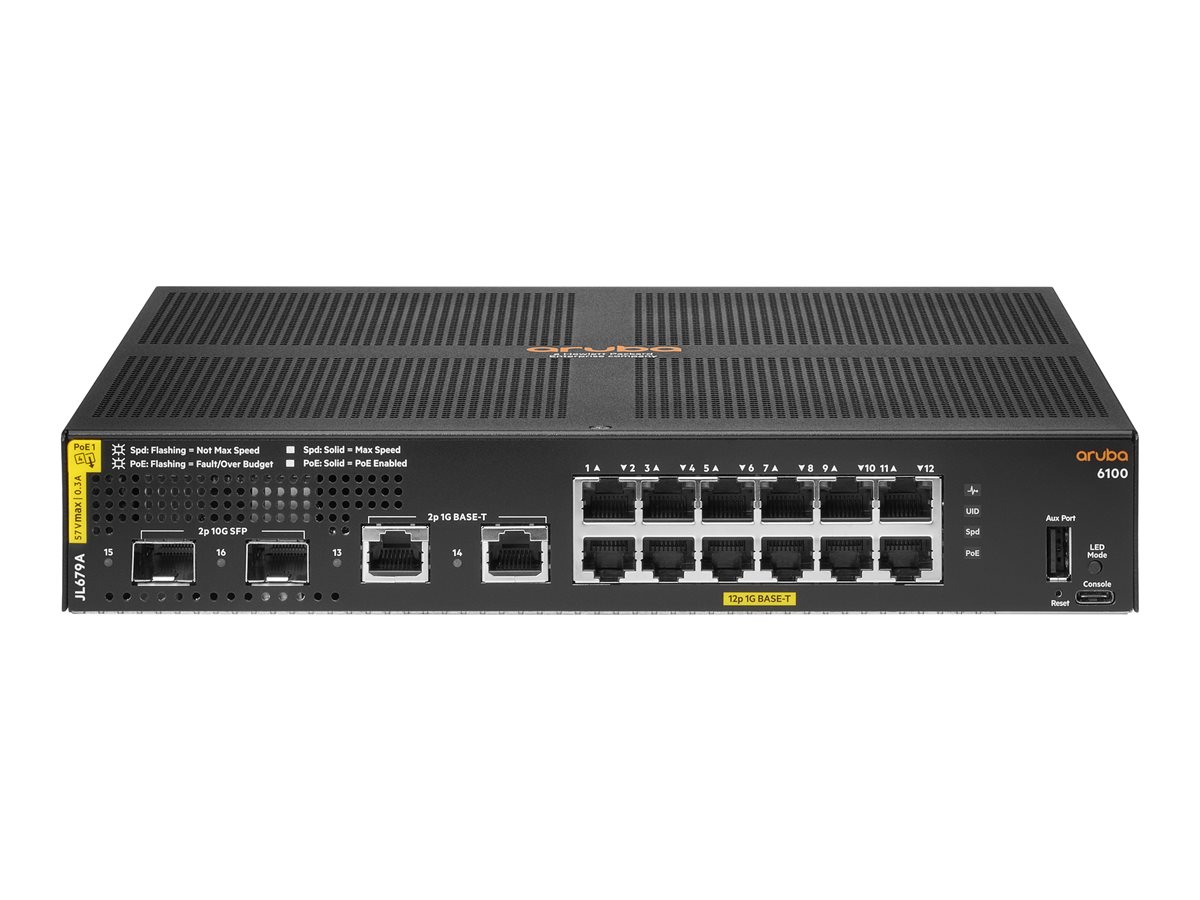

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch
Switch
Managed
12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
rack-mountable
PoE+ (139 W)
Weight: 3.81 KG
- Provides entry-level, reliable, and convenient wired access connectivity
- Silent deployment with compact and fanless PoE model
Similar Products
Overview
The Aruba CX 6100 switch series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switch provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This switch series has convenient built-in high-speed uplinks to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet work spaces.
Specifications
General
- Flash Memory
- 16 GB
- Encryption Algorithm
- SSL
- Subtype
- 10 Gigabit Ethernet
- Routing Protocol
- IGMPv2, IGMPv3
- Enclosure Type
- Rack-mountable 1U
- PoE Budget
- 139 W
- Power Over Ethernet (PoE)
- PoE+
- RAM
- 4 GB DDR3 SDRAM
- Device Type
- Switch - 16 ports - Managed - stackable
- MAC Address Table Size
- 8192 entries
- Capacity
- Switched virtual interfaces (SVIs): 16 ARP entries: 1024 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 IGMP groups: 512 MLD groups: 512 IPv4 ACL entries (ingress): 256 IPv6 ACL entries (ingress): 128 MAC ACL entries (ingress): 256
- Processor
- 1 x ARM A9: 1.016 GHz
- Ports
- 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
- Performance
- Switching capacity: 68 Gbps Throughput: 45.1 Mpps Latency (1 Gbps): 2.3 µs Latency (10 Gbps): 2.6 µs
- Authentication Method
- Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS
- Features
- DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support, fanless
- Compliant Standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Connections & Expansion
- Interfaces
- 12 x 10/100/1000 Base-T RJ-45 2 x 1/10Gbit LAN SFP+ 1 x USB-C console 1 x USB Type A 2 x Gigabit LAN
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Localisation
- English / United Kingdom
- Compliant Standards
- IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674
Power
- Power Consumption Operational
- 16 Watt
- Power Device
- Internal power supply
- Voltage Required
- AC 230V (50/60 Hz)
- Power Provided
- 165 Watt 0.9 A
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- Humidity Range Operating
- Humidity Range Storage
- 15 - 90% (non-condensing)
Weight & dimensions
- Width
- 25.4 cm
- Depth
- 25.5 cm
- Height
- 4.39 cm
- Weight
- 2.78 kg
