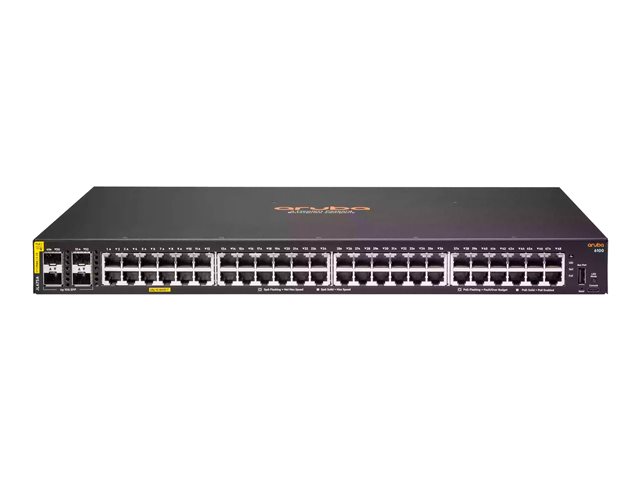

HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch
Switch
Managed
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
side to side airflow
rack-mountable
PoE+ (370 W)
Weight: 6.18 KG
- Entry level Aruba CX access layer switches
- Performance and power
- Simplified configuration and management
Similar Products
Overview
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Specifications
General
- Flash Memory
- 16 GB
- Encryption Algorithm
- SSL
- Subtype
- 10 Gigabit Ethernet
- Routing Protocol
- IGMPv2, IGMPv3
- PoE Budget
- 370 W
- Power Over Ethernet (PoE)
- PoE+
- RAM
- 4 GB DDR3 SDRAM
- Device Type
- Switch - 52 ports - Managed
- MAC Address Table Size
- 8192 entries
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Enclosure Type
- Side to side airflow rack-mountable 1U
- Performance
- Switching capacity: 176 Gbps Throughput: 98.6 µs Latency (1 Gbps): 1.9 µs Latency (10 Gbps): 1.8 µs
- Capacity
- Switched virtual interfaces (SVIs): 16 ARP entries: 1024 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 IGMP groups: 512 MLD groups: 512 IPv4 ACL entries (ingress): 256 IPv6 ACL entries (ingress): 128 MAC ACL entries (ingress): 256
- Processor
- 1 x ARM A9: 1.016 GHz
- Authentication Method
- Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS
- Compliant Standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- Features
- DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support
Connections & Expansion
- Interfaces
- 48 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 1/10Gbit LAN SFP+ 1 x USB-C console 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Localisation
- English / United Kingdom
- Compliant Standards
- IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674
Power
- Power Consumption Operational
- 30.6 Watt
- Power Device
- Internal power supply
- Voltage Required
- AC 220 V (50/60 Hz)
- Power Provided
- 500 Watt 2.4 A
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Humidity Range Storage
- 15 - 90% (non-condensing)
Weight & dimensions
- Width
- 44.2 cm
- Depth
- 30.48 cm
- Height
- 4.39 cm
- Weight
- 5.02 kg
