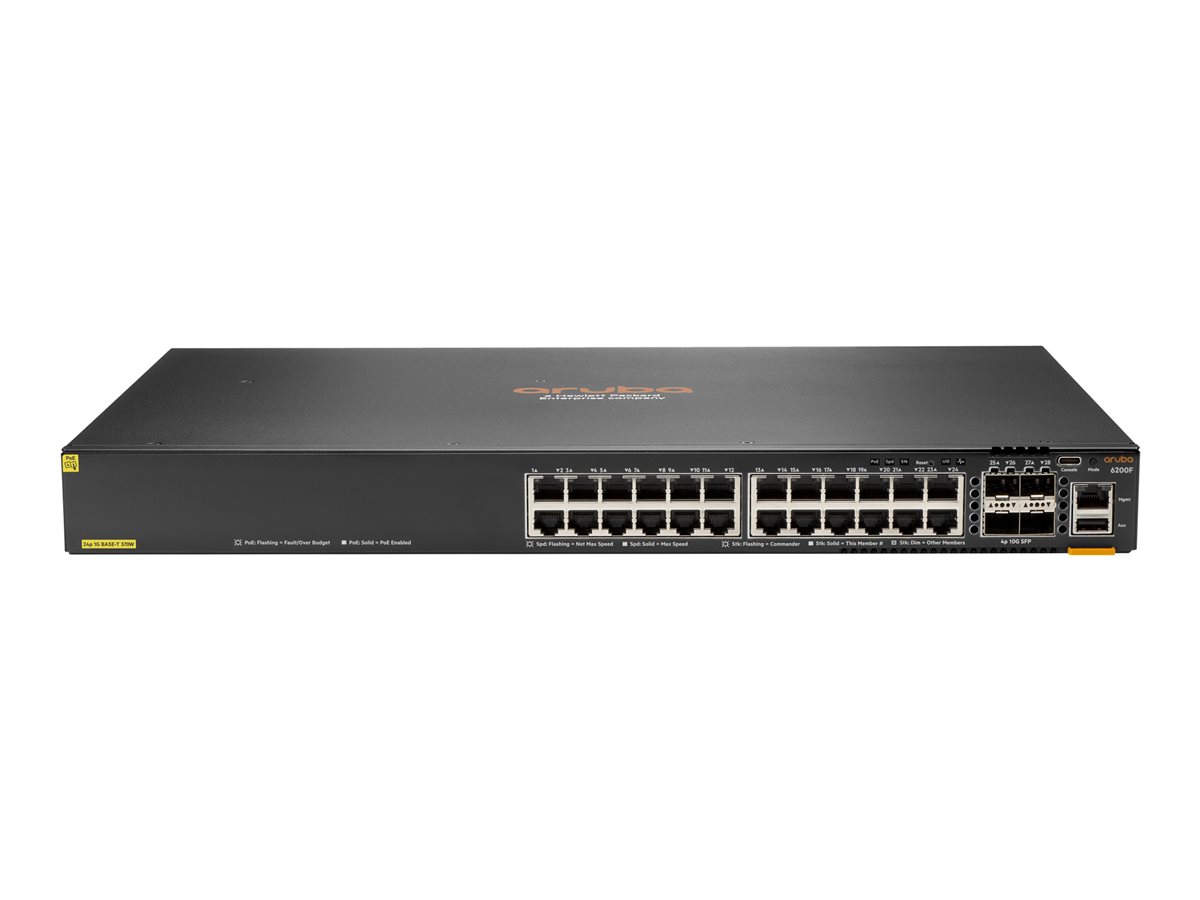

HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch
Switch
Max. Stacking Distance 10 kms
L3
Managed
24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
rack-mountable
PoE+ (370 W)
BTO
Weight: 6.14 KG
- 1.8 GHz ARM processor for high-performance networking
- 24 RJ-45 and 4 SFP+ ports offer extensive connectivity
- 370 W PoE budget supports a wide range of PoE+ devices
- Layer 3 switching for efficient traffic management
- Rack-mountable and stackable design for easy integration
Similar Products
Overview
The HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch is designed to meet the demands of modern network environments. It features a powerful 1.8 GHz ARM processor and advanced Layer 3 switching capabilities, providing both high performance and efficient network traffic management. With 24 RJ-45 ports for 10/100/1000 Base-T connections and 4 SFP+ ports, this switch offers flexible connectivity options for various networking needs. The switch's 370 W PoE budget allows for direct power supply to PoE+ devices, reducing the need for additional power sources and simplifying installations. Its compact, rack-mountable form factor, occupying only 1 rack unit, along with its stackable design, makes it an ideal solution for space-constrained environments looking for scalable network infrastructure. Whether you're upgrading an existing network or building a new one, the HPE Aruba 6200F switch provides the reliability, performance, and flexibility needed to support your network's growth.
Specifications
General
- Max Units In A Stack
- 8
- Subtype
- 10 Gigabit Ethernet
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- PoE Budget
- 370 W
- Enclosure Type
- Rack-mountable 1U
- Encryption Algorithm
- SSL, FIPS 140-2
- Power Over Ethernet (PoE)
- PoE+
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Jumbo Frame Support
- 9220 bytes
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- Performance
- Switching capacity: 128 Gbps Throughput: 95.2 Mpps Latency (1 Gbps): 2.28 µs Latency (10 Gbps): 1.46 µs Stacking bandwidth: 40 Gbps
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Capacity
- Packet buffer size: 8 MB IPv4 ACL entries (ingress): 5120 IPv6 ACL entries (ingress): 1280 MAC ACL entries (ingress): 5120 IPv4 ACL entries (egress): 2048 IPv6 ACL entries (egress): 512 MAC ACL entries (egress): 2048
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Features
- VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol
Connections & Expansion
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 4 x 100/1000/10G SFP+ uplink 1 x USB-C console 1 x console RJ-45 1 x management 1 x USB Type A host
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Localisation
- English / United Kingdom
- Pricing Type
- BTO
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, KC 62368-1: 2021-08, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, IEC 63000:2018
Power
- Power Device
- Internal power supply
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Humidity Range Storage
- 5 - 95% (non-condensing)
Weight & dimensions
- Height
- 4.37 cm
- Width
- 44.25 cm
- Weight
- 4.39 kg
- Depth
- 30.43 cm
