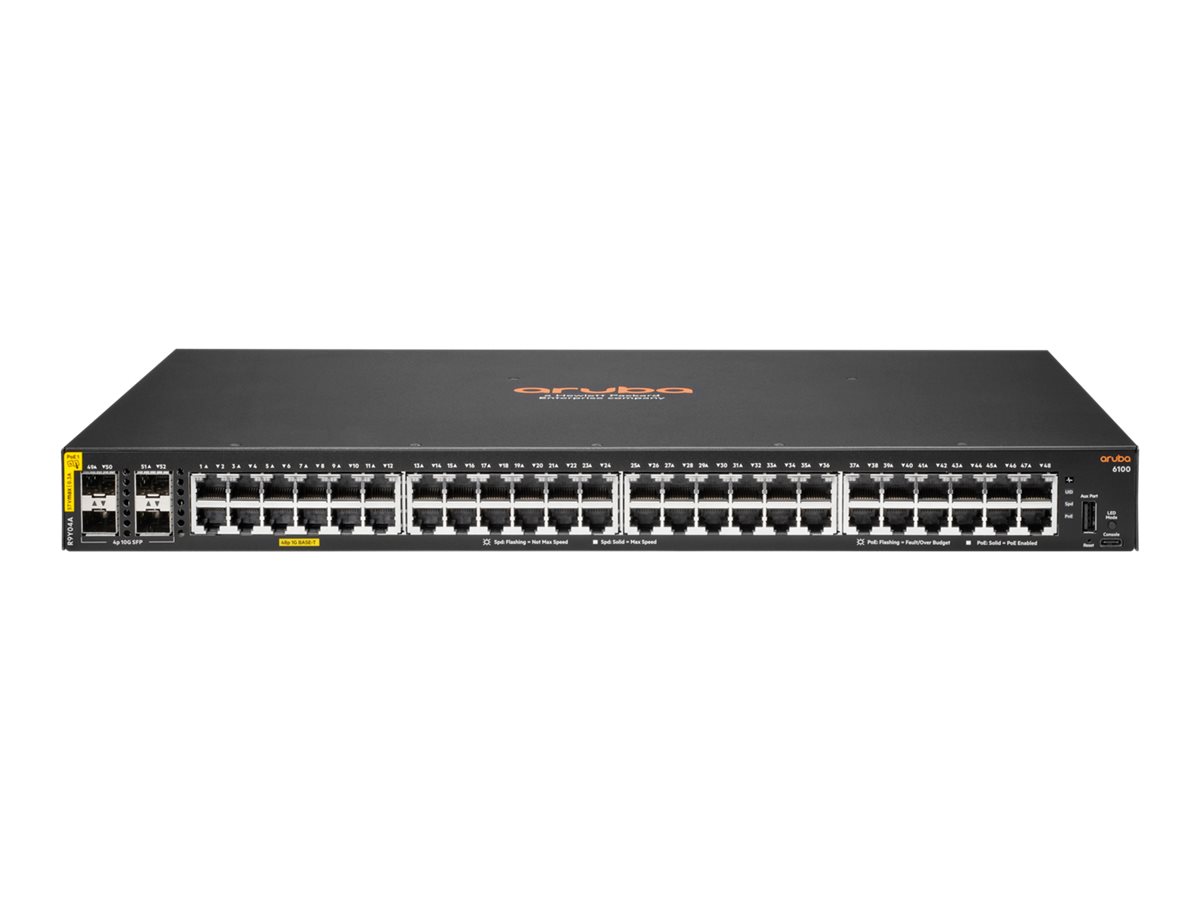

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
Switch
L3
Managed
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
side to side airflow
rack-mountable, wall-mountable
PoE+ (740 W)
remarketed
CTO
- Simplify IT operations with next-gen layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
- Silent deployment with compact and fanless 12 port PoE model
Similar Products
Overview
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740 W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Main Specifications
- Product Description
- HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Side to side airflow rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
- Capacity
- Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 host table capacity: 1024 ¦ IPv6 host table capacity: 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ Packet buffer size: 12.38 MB
- MAC Address Table Size
- 8192 entries
- Jumbo Frame Support
- 9220 bytes
- Routing Protocol
- IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Remote Management Protocol
- MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3
- Features
- LLDP, PoE Class 4, UTM, UDLD, CoS, ToS, Address Resolution Protocol, Layer 2 switching, RPVST+, RSTP support, MSTP support
- Compliant Standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az
- Power
- AC 100-127/200-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.25 cm x 32.42 cm x 4.39 cm
- Weight
- 4.7 kg
- System Requirements
- AOS-CX
- Localisation
- English / United Kingdom
- Pricing Type
- Remarketed - CTO
Associated Documents
Product Features
Entry level Aruba CX access layer switches
The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks. Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience. Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Performance and power
The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 740 W IEEE 802. 3at Class 4 Power over Ethernet for up to 30 W per port. Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Specifications
General
- Subtype
- Gigabit Ethernet
- Flash Memory
- 16 GB
- Encryption Algorithm
- SSL
- PoE Budget
- 740 W
- Power Over Ethernet (PoE)
- PoE+
- RAM
- 4 GB DDR3 SDRAM
- Device Type
- Switch - 48 ports - L3 - Managed
- MAC Address Table Size
- 8192 entries
- Jumbo Frame Support
- 9220 bytes
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Performance
- Switching capacity: 176 Gbps Throughput: 98.6 Mpps Latency (1 Gbps): 1.9 µs Latency (10 Gbps): 1.8 µs
- Enclosure Type
- Enclosure Type
- Capacity
- Switched virtual interfaces (SVIs) (dual stack): 16 IPv4 ACL entries (ingress): 256 IPv6 ACL entries (ingress): 128 MAC ACL entries (ingress): 256 IGMP groups: 512 MLD groups: 512 IPv4 host table capacity: 1024 IPv6 host table capacity: 512 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 Packet buffer size: 12.38 MB
- Processor
- 1 x ARM CortexTM A9: 1.016 GHz
- Routing Protocol
- IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Remote Management Protocol
- MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3
- Authentication Method
- RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
- Features
- LLDP, PoE Class 4, UTM, UDLD, CoS, ToS, Address Resolution Protocol, Layer 2 switching, RPVST+, RSTP support, MSTP support
- Compliant Standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az
Connections & Expansion
- Interfaces
- 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 4 x Gigabit / 10Gbit LAN SFP+ uplink 1 x USB-C console 1 x USB Type A host
Miscellaneous
- Localisation
- English / United Kingdom
- Pricing Type
- Remarketed - CTO
- Compliant Standards
- IEC 62368-1: 2014, EN 62368-1: 2018, IEC 62368-1:2018, UL 62368-1: 2014 2nd Ed., VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015 + A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, EN 60825-1:2014, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3
Power
- Power Provided
- 950 Watt
- Power Consumption Stand by
- 37.5 Watt
- Power Device
- Internal power supply
- Power Consumption Operational
- 49.7 Watt
- Voltage Required
- AC 100-127/200-240 V (50/60 Hz)
Software / System Requirements
- OS Required
- AOS-CX
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
- Humidity Range Operating
- 5 - 95% (non-condensing)
Weight & dimensions
- Weight
- 4.7 kg
- Height
- 4.39 cm
- Width
- 44.25 cm
- Depth
- 32.42 cm
