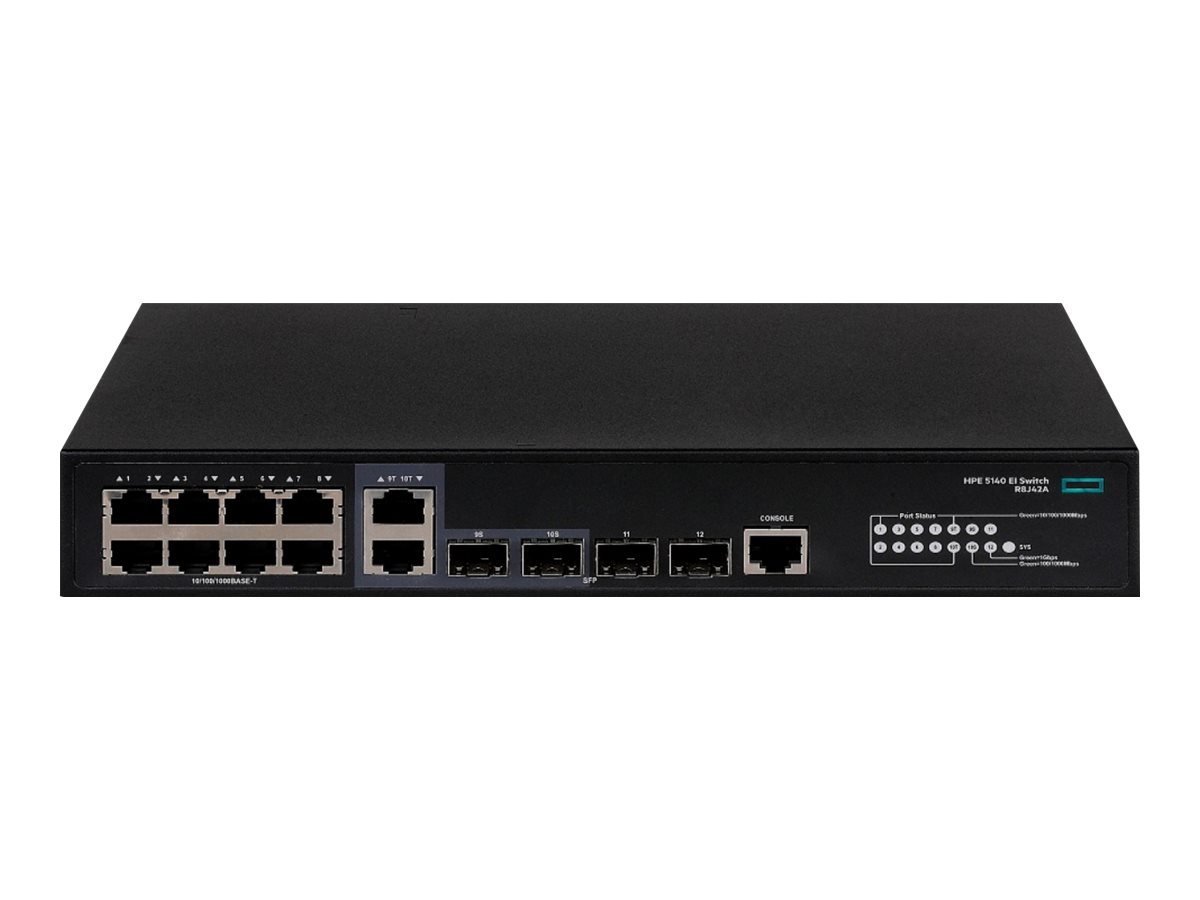

HPE FlexNetwork 5140 8G 2SFP 2XGT Combo EI - switch - 12 ports - smart - rack-mountable
Switch
L3
smart
8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T
rack-mountable
BTO
- Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks, and POE+ models for voice, video, and wireless
- Supports IRF technology that enables Plug and Play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization
- Includes embedded network management capabilities with Smart Management Center (SmartMC)
- Includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Sales & Technical Enquiries
Similar Products
HPE FlexNetwork 5140 8G 2SFP 2XGT Combo EI - switch - 12 ports - smart - rack-mountable
Product Summary
The HPE FlexNetwork 5140 EI Switch Series delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, and IPv6, and delivers energy savings with Energy Efficient Ethernet. The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.
Main Specifications
- Product Description
- HPE FlexNetwork 5140 8G 2SFP 2XGT Combo EI - switch - 12 ports - smart - rack-mountable
- Device Type
- Switch - 12 ports - L3 - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T
- Performance
- Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 18 Mpps ¦ Routing/switching capacity: 128 Gbps
- Capacity
- IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256 ¦ VLAN IDs: 4094
- MAC Address Table Size
- 16384 entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Features
- Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, High Availability, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, RADIUS support, DHCP server, MLD snooping, DLDP support, STP Root Guard, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, Smart Link Pass-Through, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP IRDP, Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.6 cm x 16 cm x 4.36 cm
- Weight
- 1.5 kg
- Pricing Type
- BTO
- Manufacturer Warranty
- Limited lifetime warranty
Associated Documents
Product Features
The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802. 1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
Extended Specification
Disclaimers
- Actual configuration might differ from illustration
