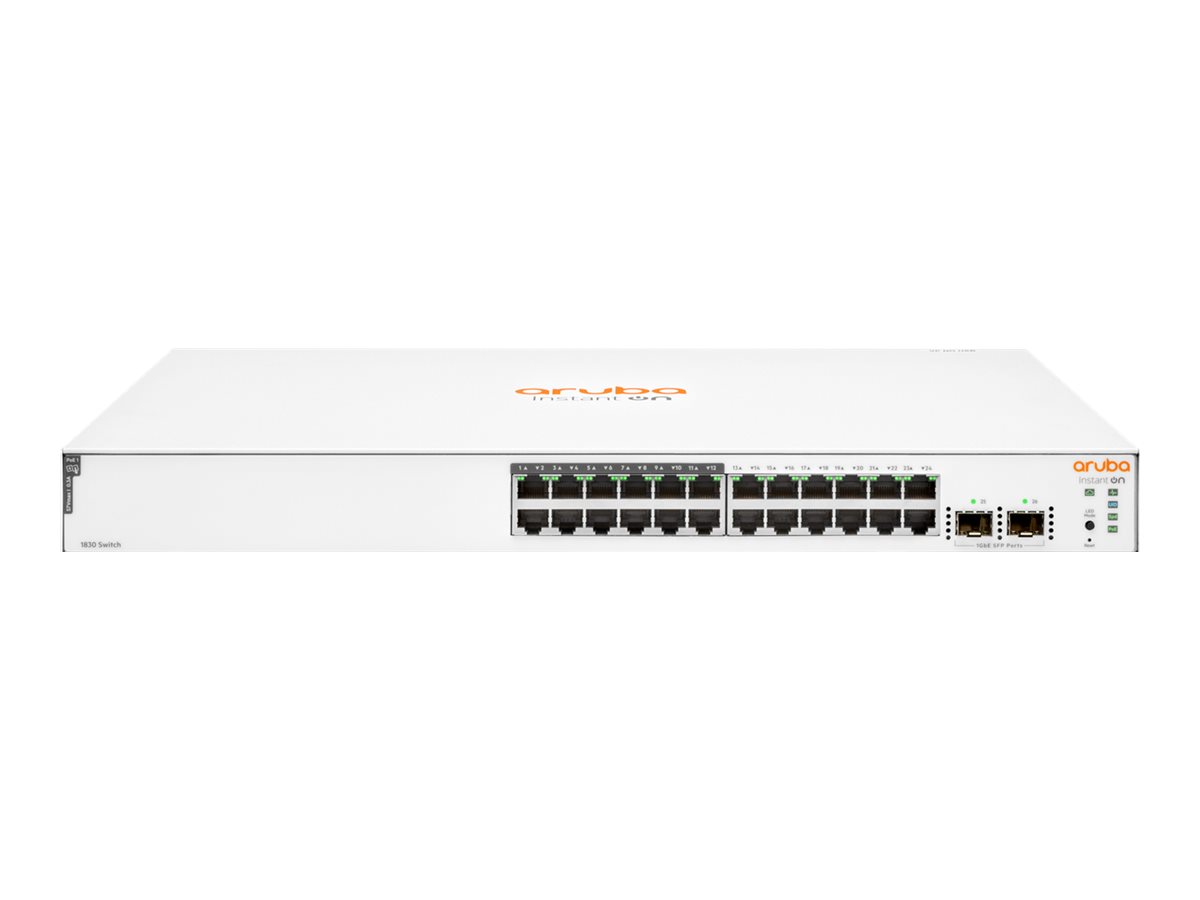

HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
Thumbnail 0

HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

Manuf P/N: JL813A#ACC
APAXON#: 7277038
EAN: 190017523798
HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
Switch
smart
12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
desktop, rack-mountable
PoE+ (195 W)
Weight: 4.82 KG
  • 24 Gigabit Ethernet ports for extensive connectivity
  • 12 PoE+ ports to power network devices efficiently
  • Cloud managed for easy remote network management
  • 52 Gbps switching capacity for high network performance
  • ENERGY STAR Ethernet (EEE) for reduced power consumption
UK Stock37
ConditionNew
Price £ 203.12
Price inc. VAT
£ 243.74
Quantity
|

Sales & Technical Enquiries

Product Summary

The HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch is designed to meet the demands of modern businesses, offering a blend of performance, security, and manageability. With 24 Gigabit Ethernet ports, including 12 with PoE+ capability, it provides the necessary infrastructure to support both current and emerging network devices. Security is a priority, with features like SSL encryption and DoS protection ensuring a secure network environment. The switch is also cloud-managed, offering flexibility and ease in network management from anywhere. Performance is ensured, with a 52 Gbps switching capacity and up to 38.68 Mpps throughput, ensuring smooth data flow even in high-demand scenarios. Additionally, its energy-efficient design not only reduces operational costs but also supports environmental sustainability initiatives. Ideal for businesses looking for a scalable, secure, and high-performing networking solution.

Extended Specification

General
Flash Memory
256 MB
Subtype
Gigabit Ethernet
RAM
512 MB SDRAM
Encryption Algorithm
SSL
PoE Budget
195 W
Power Over Ethernet (PoE)
PoE+
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Device Type
Switch - 24 ports - smart
Enclosure Type
Desktop, rack-mountable 1U
Processor
1 x ARM: 800 MHz
Performance
Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.8 µs Throughput: 38.68 Mpps Switching capacity: 52 Gbps
Ports
12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Routing Protocol
IGMP, IGMPv2
Remote Management Protocol
HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP
Features
Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support
Compliant Standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at
Status Indicators
Port status, link/activity, speed, port duplex mode
Connections & Expansion
Interfaces
12 x 1000Base-T RJ-45 2 x Gigabit LAN SFP 12 x 1000Base-T RJ-45 PoE+
Manufacturer Warranty
Service & Support
Limited warranty - lifetime Technical support - live chat - lifetime Technical support - phone consulting - 90 days from date of purchase
Miscellaneous
Localisation
English / United Kingdom
MTBF
96.6 years
Compliant Standards
AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
244.6 Watt
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Max Storage Temperature
70 °C
Min Storage Temperature
-40 °C
Humidity Range Operating
15 - 95% (non-condensing)
Humidity Range Storage
15 - 95% (non-condensing)
Weight & Dimensions
Depth
25.3 cm
Width
44.3 cm
Height
4.39 cm
Weight
3.47 kg
HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
