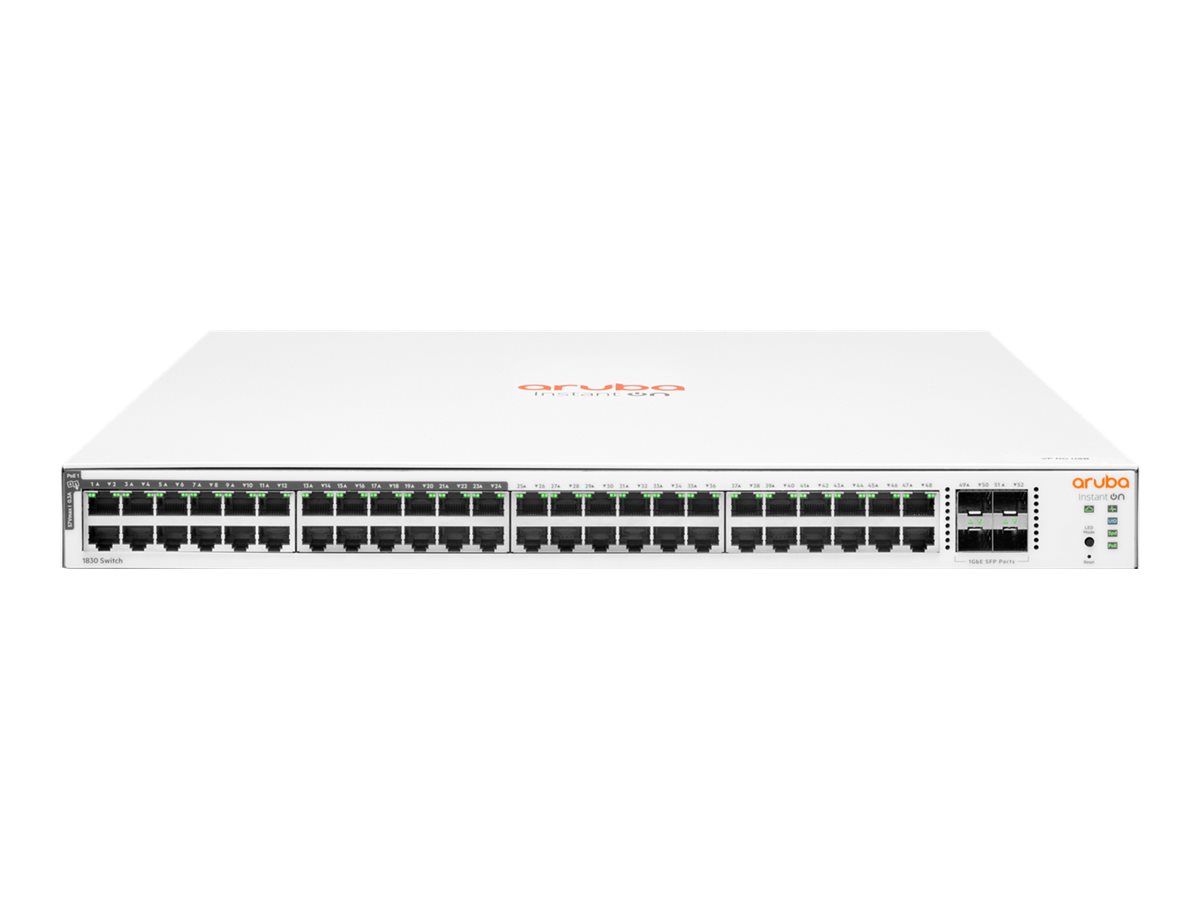

HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
Thumbnail 0

HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

Manuf P/N: JL815A#ACC
APAXON#: 7277042
EAN: 190017524474
HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
Switch
smart
24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
desktop, rack-mountable
PoE+ (370 W)
Weight: 6.66 KG
  • 48 Gigabit Ethernet ports for extensive connectivity
  • 24 PoE+ ports with a 370 W budget to power devices directly through the network cables
  • Advanced security features including SSL and DoS protection
  • ENERGY STAR Ethernet (EEE) for reduced power consumption
  • Cloud managed for easy remote access and management
UK Stock21
ConditionNew
Price £ 403.72
Price inc. VAT
£ 484.46
Quantity
|

Sales & Technical Enquiries

Product Summary

The HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch is a versatile and powerful networking solution designed for small to medium-sized businesses. This switch offers a robust set of features including 48 Gigabit Ethernet ports, 24 of which are PoE+ capable, allowing for direct power supply to connected devices, eliminating the need for additional power sources. With an impressive PoE budget of 370 W, it supports a wide range of power-dependent devices such as VoIP phones, wireless access points, and surveillance cameras. Designed to meet the demands of modern networks, it includes advanced networking features like Quality of Service (QoS), VLAN support, and Link Aggregation, which enhance network efficiency and security. The switch also supports ENERGY STAR Ethernet (EEE), making it an eco-friendly option that reduces operational costs. Additionally, its cloud-managed capability allows for easy setup, monitoring, and management from anywhere, providing flexibility and ease of use. With a comprehensive suite of security features, including SSL encryption, Trusted Platform Module (TPM), and protection against Denial of Service (DoS) attacks, the HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch ensures your network is secure. Its reliability is further underscored by an MTBF of 83.5 years, making it a dependable choice for businesses looking for a long-term networking solution.

Extended Specification

General
Flash Memory
256 MB
Subtype
Gigabit Ethernet
RAM
512 MB SDRAM
Encryption Algorithm
SSL
PoE Budget
370 W
Power Over Ethernet (PoE)
PoE+
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Device Type
Switch - 48 ports - smart
Enclosure Type
Desktop, rack-mountable 1U
Processor
1 x ARM: 800 MHz
Ports
24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Performance
Latency (100 Mbps): 5.2 µs, Latency (1 Gbps): 2.8 µs, Throughput: 77.37 Mpps, Switching capacity: 104 Gbps
Routing Protocol
IGMP, IGMPv2
Remote Management Protocol
HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP
Features
Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support
Compliant Standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at
Status Indicators
Port status, link/activity, speed, port duplex mode
Connections & Expansion
Interfaces
24 x 1000Base-T RJ-45, 4 x Gigabit LAN SFP, 24 x 1000Base-T RJ-45 PoE+
Manufacturer Warranty
Service & Support
Limited warranty - lifetime, Technical support - live chat - lifetime, Technical support - phone consulting - 90 days from date of purchase
Miscellaneous
Localisation
English / United Kingdom
MTBF
83.5 years
Compliant Standards
AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
462.5 Watt
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Max Storage Temperature
70 °C
Min Storage Temperature
-40 °C
Humidity Range Operating
15 - 95% (non-condensing)
Humidity Range Storage
15 - 95% (non-condensing)
Weight & Dimensions
Depth
35.1 cm
Width
44.3 cm
Height
4.39 cm
Weight
4.94 kg
HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
