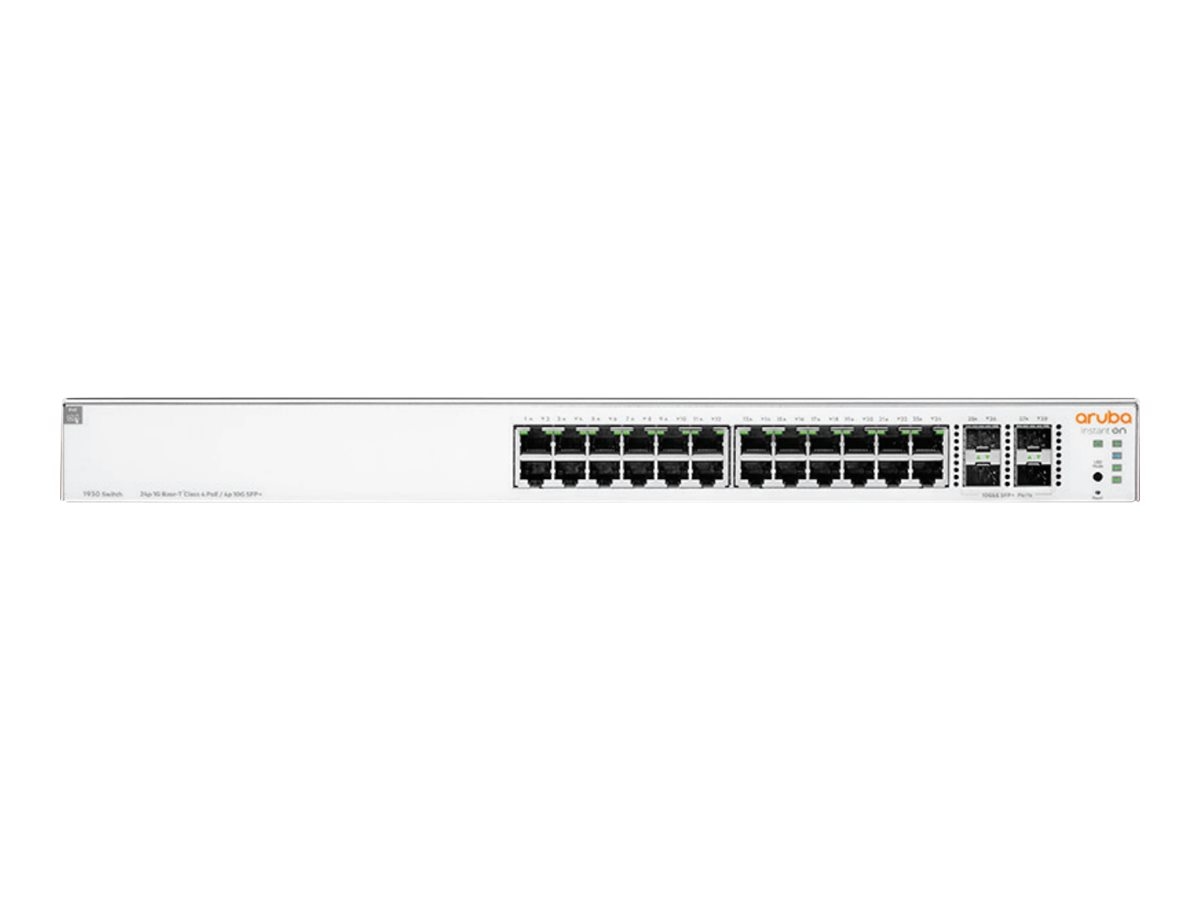

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
Thumbnail 0

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch

Manuf P/N: JL684B#ACC
APAXON#: 7784616
EAN: 190017593470
HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
Switch
L3
Managed
24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
rack-mountable
PoE (370 W)
Weight: 5.36 KG
  • 24 PoE ports and 4 SFP+ ports for extensive connectivity options
  • 128 Gbps switching capacity and 95.23 Mpps throughput for efficient data transmission
  • Supports advanced security features including ACL, SSL encryption, and RADIUS authentication
  • Flexible management via HTTP, HTTPS, SNMP, and RADIUS for efficient network administration
  • Designed for durability with a 71-year MTBF and compliance with environmental standards
UK Stock19
ConditionNew
Price £ 380.66
Price inc. VAT
£ 456.79
Quantity
|

Sales & Technical Enquiries

Product Summary

The HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch is a high-performance, rack-mountable network solution designed to meet the demands of modern businesses. With 24 PoE ports and 4 SFP+ ports, it offers extensive connectivity options for devices requiring high-speed network access and power over Ethernet. This switch has a robust 128 Gbps switching capacity and a throughput of 95.23 Mpps, ensuring efficient data flow across the network. Advanced security features such as Access Control List (ACL) support, SSL encryption, and RADIUS authentication provide a secure networking environment, safeguarding against unauthorized access and cyber threats. Additionally, the switch is manageable via multiple protocols, including HTTP, HTTPS, SNMP, and RADIUS, offering flexibility in network management and monitoring. Its durable design, evidenced by a 71-year mean time between failures (MTBF) and compliance with stringent environmental standards, ensures long-term reliability and performance. This makes the HPE Networking Instant On 1930 switch an ideal choice for businesses looking for a secure, manageable, and high-capacity networking solution.

Extended Specification

Environmental Parameters
Humidity Range Operating
15 - 95% (40 °C)
Humidity Range Storage
15 - 95% (60 °C)
AC 120 V (50/60 Hz)
0 °C
Max Operating Temperature
40 °C
Max Storage Temperature
70 °C
Min Storage Temperature
-40 °C
Weight & Dimensions
Weight
3.67 kg
Height
4.39 cm
Width
44.25 cm
Depth
26.47 cm
General
Flash Memory
256 MB
Subtype
Gigabit Ethernet
Authentication Method
RADIUS
RAM
512 MB SDRAM
Encryption Algorithm
SSL
Routing Protocol
Static IP routing
PoE Budget
370 W
Enclosure Type
Rack-mountable 1U
Power Over Ethernet (PoE)
PoE
Device Type
Switch - 28 ports - L3 - Managed
MAC Address Table Size
16000 entries
Status Indicators
Port status, power, PoE
Jumbo Frame Support
9216 bytes
Processor
1 x ARM: 800 MHz
Ports
24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
Capacity
Link aggregation ports: 8 IPv4 routes (static): 32 VLANs supported: 256 Access Control Entries (ACEs) per ACL: 480 Packet buffer size: 1.5 MB
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Performance
Switching capacity: 128 Gbps Throughput: 95.23 Mpps Latency (1 Gbps): 2.4 µs Latency (10 Gbps): 1.3 µs
Features
Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
Connections & Expansion
Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE - 370 W 4 x 1/10Gbit LAN SFP+
Miscellaneous
Service & Support
Limited warranty - lifetime
Localisation
English / United Kingdom
MTBF
71 years
Compliant Standards
CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017
Power
Power Consumption Operational
439 Watt
Power Device
Internal power supply
Voltage Required
AC 120 V (50/60 Hz)
HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
