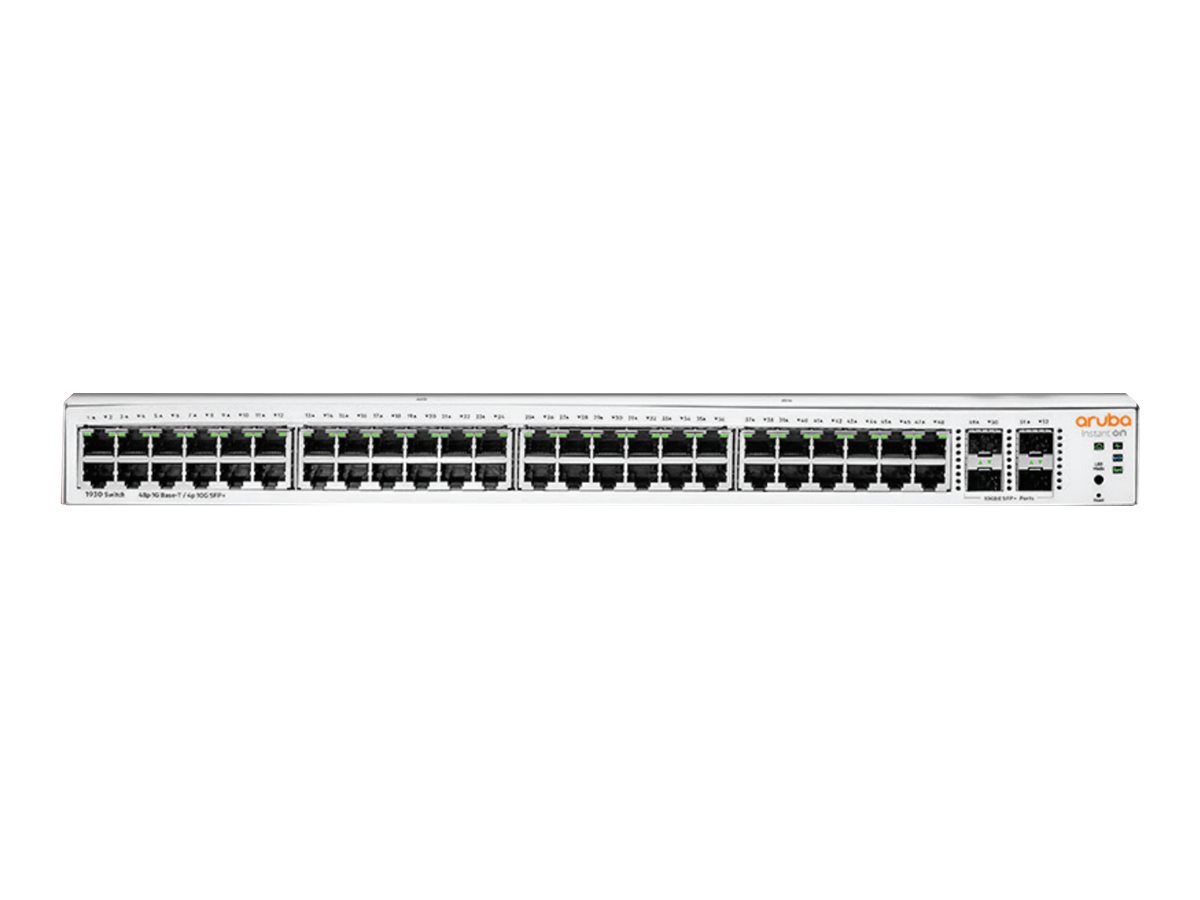

HPE Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch
Switch
L3
Managed
48 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
rack-mountable
PoE (370 W)
Weight: 6.30 KG
- 48 PoE ports and 4 SFP+ ports for versatile connectivity
- 176 Gbps switching capacity for high-speed data transmission
- Supports up to 256 VLANs for efficient network segmentation
- ENERGY STAR Ethernet and 370 W PoE budget for optimized power usage
- Advanced security with ACLs, SSL encryption, and RADIUS authentication
Sales & Technical Enquiries
Similar Products
Product Summary
The HPE Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch is a high-performance, rack-mountable network solution designed to meet the demands of modern businesses. With 48 PoE ports and 4 SFP+ ports, it offers extensive connectivity options for various devices, making it ideal for environments requiring high-speed networking and device power via Ethernet. This switch boasts a robust 176 Gbps switching capacity and supports up to 256 VLANs, ensuring efficient data traffic handling and network segmentation. Security is a priority, with features like Access Control Lists (ACLs), SSL encryption, and RADIUS authentication providing comprehensive protection for sensitive data. Additionally, its ENERGY STAR Ethernet and a generous 370 W PoE budget help minimize operational costs by optimizing power usage. Manageable via multiple protocols, including HTTP, HTTPS, SNMP, and RMON, it offers flexible and straightforward network management. Whether for a small business or a large enterprise, the HPE Networking Instant On 1930 switch is engineered to provide reliable, secure, and efficient network performance.
Main Specifications
- Product Description
- HPE Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch - switch - 52 ports - Managed - rack-mountable
- Device Type
- Switch - 52 ports - L3 - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 370 W
- Performance
- Switching capacity: 176 Gbps ¦ Throughput: 130.95 Mpps ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.2 µs
- Capacity
- Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
- Features
- Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
- Power
- AC 100-127/200-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.25 cm x 32.26 cm x 4.39 cm
- Weight
- 4.52 kg
- Localisation
- English / United Kingdom
- Manufacturer Warranty
- Limited lifetime warranty
Associated Documents
Product Features
With 48 PoE ports and 4 SFP+ ports, this switch offers extensive connectivity options for a variety of devices and high-speed networking, ensuring efficient operation and flexibility in deployment.
Boasting a switching capacity of 176 Gbps and support for up to 256 VLANs, the HPE Networking Instant On 1930 switch is designed to handle heavy data traffic, providing reliable and seamless network performance.
Equipped with Access Control Lists (ACLs), SSL encryption, and RADIUS authentication, this switch delivers robust security features to protect sensitive data and manage network access effectively.
Featuring ENERGY STAR Ethernet and a PoE budget of 370 W, it optimizes power usage, reducing operational costs while supporting devices requiring power over Ethernet.
Manageable via HTTP, HTTPS, SNMP, and RMON, this switch offers versatile management options for simplified network configuration, monitoring, and maintenance.
