HPE Smart Choice DL20 Gen11 E-2434 1P 32G 2LFF EU Svr
This HPE pre built server includes the following:
1x P64339-B21 = HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 Unbuffered Standard Memory Kit
2x 861681-B21 = HPE 2TB 6G 7.2K rpm HPL SATA LFF (3.5in) Low Profile MDL 1yr Warranty Digitally Signed Firmware HDD
1x P21649-B21 = HPE DL20 Gen10 290W Platinum Power Supply Kit
Weight: 15.16 KG
- 6-core Intel Xeon E-2436 processor with speeds up to 5 GHz for high efficiency
- 32 GB of DDR5 SDRAM, expandable to support memory-intensive applications
- 4 Gigabit Ethernet ports for high-speed network connectivity
- Hot-swap 2.5" SSDs for flexible, secure storage solutions
- Trusted Platform Module (TPM) security chip for enhanced data protection
Similar Products
Overview
The HPE ProLiant DL20 Gen11 server is designed to meet the demands of modern businesses, offering a blend of performance, security, and connectivity. Powered by an Intel Xeon E-2436 processor and equipped with 32 GB of DDR5 memory, it delivers the speed and efficiency needed for complex server tasks. Its robust security features, including a TPM security chip and remote management capabilities, ensure your data is protected. With flexible storage options and comprehensive connectivity, including Gigabit Ethernet and a variety of ports, this server is a versatile solution for any business looking to enhance its IT infrastructure.
Main Specifications
- Product Description
- HPE ProLiant DL20 Gen11 - rack-mountable Xeon E-2434 3.4 GHz - 32 GB - HDD 2 x 2 TB
- Type
- Server - rack-mountable
- Height (Rack Units)
- 1U
- Localisation
- Region: Europe
- Server Scalability
- 1-way
- Processor
- 1 x Intel Xeon E-2434 / 3.4 GHz (up to 5 GHz, (Quad-Core)
- Cache Memory
- 12 MB
- Cache Per Processor
- 12 MB
- RAM
- 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC
- Storage Controller
- SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID)
- Server Storage Bays
- Hot-swap 3.5"
- Hard Drive
- 2 x HDD 2 TB - SATA
- Optical Storage
- No optical drive
- Graphics Controller
- Matrox G200
- Video Memory
- 16 MB
- Networking
- 1GbE
- Power
- (50/60 Hz)
- Power Redundancy
- Optional
- OS Provided
- No operating system
- Software Included
- HPE iLO Management
- Dimensions (WxDxH)
- 43.46 cm x 38.22 cm x 4.32 cm
- Weight
- 12 kg
- Manufacturer Selling Program
- HPE Smart Choice
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Associated Documents
Product Features
Efficient Performance
Equipped with a 6-core Intel Xeon E-2436 processor and a clock speed of 2. 9 GHz that can turbo up to 5 GHz, the HPE ProLiant DL20 Gen11 delivers reliable and efficient performance for demanding server operations. Its upgradability ensures it can adapt to future workloads.
Advanced Connectivity
This server boasts a comprehensive set of connectivity options including 4 Gigabit Ethernet ports powered by a Broadcom BCM5719 controller, ensuring high-speed network connections. Additionally, it features a variety of ports including USB 3. 2 Gen 1, DisplayPort, and VGA, catering to diverse connectivity needs.
Robust Security
With an embedded Trusted Platform Module (TPM) security chip, the HPE ProLiant DL20 Gen11 offers a secure foundation for your data, protecting against unauthorized access and ensuring data integrity. Integrated Lights-Out 6 remote management further enhances security and management capabilities.
Flexible Storage Solutions
Featuring hot-swap 2. 5" SSDs and support for up to 4 hot-swap bays, the server provides flexible storage options that can be tailored to meet the needs of any business, ensuring data is stored efficiently and securely.
High-Capacity Memory
With 32 GB of DDR5 SDRAM installed and the capability to expand, this server supports memory-intensive applications, ensuring smooth operation and improved data processing speeds for all your business needs.
What's in the box
HPE ProLiant DL20 Gen11, 3 high performance non-hot plug and non-redundant fans
Specifications
General
- Hot-Swap Bays Qty
- 2
- Type
- Server
- Built-in Devices
- Led panel
- Server Scalability
- 1-way
- Product Form Factor
- Rack-mountable - 1U
- Embedded Security
- Trusted Platform Module (TPM 2.0) Security Chip
- Localisation
- Region: Europe
Connections & Expansion
- Bays
- 2 (total) / 2 (free) x 3.5" LFF
- Slots
- 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 (external)
- Interfaces
- 1 x HPE iLO - Type A (service port) 5 x USB 3.2 Gen 1x1 - Type A 2 x USB 3.2 Gen 2x1 (2 internal) 1 x DisplayPort 1 x VGA 4 x LAN (Gigabit Ethernet) - RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
RAM
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2400 MHz
- Configuration Features
- 1 x 32 GB
- Form Factor
- DIMM 288-pin
- Slots
- 4 (Total) / 3 (empty)
- Technology
- DDR5 SDRAM - ECC
- Installed Size
- 32 GB (installed) / 128 GB (max)
- Features
- HPE Standard Memory, unbuffered
Network
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- Broadcom BCM5719
- Features
- ACPI support, PXE support, Wake on LAN (WoL)
- Remote Management Protocol
- IPMI 2.0, SNMP 3
Miscellaneous
- Security Slot Type
- Kensington security slot
- Theft/Intrusion Protection
- Security lock slot (cable lock sold separately), padlock eye
- Manufacturer Selling Program
- HPE Smart Choice
- Included Accessories
- 3 high performance non-hot plug and non-redundant fans
- Compliant Standards
- ACPI 6.3, PCIe 5.0, SMBIOS 3.2, UEFI 2.9, Redfish API, AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, PCI DSS, FIPS 140-2, IPv6 Ready, WEEE 2002/95/EC, EU Lot 9
Power
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Device Type
- Power supply - hot-plug
- Power Provided
- 290 Watt
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Voltage Required
- AC 100-120/200-240 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% RH (non-condensing)
Storage Controller
- Type
- 1 x SATA
- Controller Interface Type
- SATA 6Gb/s
- Storage Controller Name
- Intel VROC SATA Software RAID
- RAID Level
- RAID 1, RAID 0, RAID 5, RAID 10
Cache Memory
- Installed Size
- 12 MB
- Cache Per Processor
- 12 MB
Optical Storage
- Type
- No optical drive
Operating System / Software
- OS Provided
- No operating system
- Software
- HPE iLO Management
- OS Certified
- Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux (RHEL) 7.3 and higher (not 8.x), SUSE Linux Enterprise Server, Canonical Ubuntu
Graphics Controller
- Monitor Type
- None
- Video Memory
- 16 MB
- Graphics Processor
- Matrox G200
Weight & dimensions
- Type
- HDD
- Interface Type
- SATA
- Capacity
- 2 x 2 TB
- Weight
- 12 kg
- Height
- 4.32 cm
- Width
- 43.46 cm
- Depth
- 38.22 cm
Processor / Chipset
- CPU Qty
- 1
- Max CPU Qty
- 1
- CPU Upgradability
- Upgradable
- Max Turbo Speed
- 5 GHz
- Clock Speed
- 3.4 GHz
- Number of Cores
- Quad-Core
- Chipset Type
- Intel C262
- CPU
- Intel Xeon E-2434
Sustainability
- ENERGY STAR Version
- 4.0
- ENERGY STAR Certified
- Yes
Shop the HPE Smart Choice purchase program: Our most popular servers, fully configured and ready to ship - now! HPE ProLiant DL20 Gen11 server with one Intel® Xeon® E-2434 Processor, 32 GB (1x32 GB UDIMM) Dual Rank Memory, Embedded Intel® VROC SATA (formerly known as Intel® RSTe), support for two LFF drives, three high performance fans, two HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDDs, one HPE ProLiant DL20 Gen10 Plus 290W FIO Power Supply Kit, and a 3/3/3 warranty
Supports Intel Xeon E-2400 series processors, up to 8 cores.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
One PCIe Gen5 slot for greater I/O bandwidth.
One OCP slot for greater I/O bandwidth.

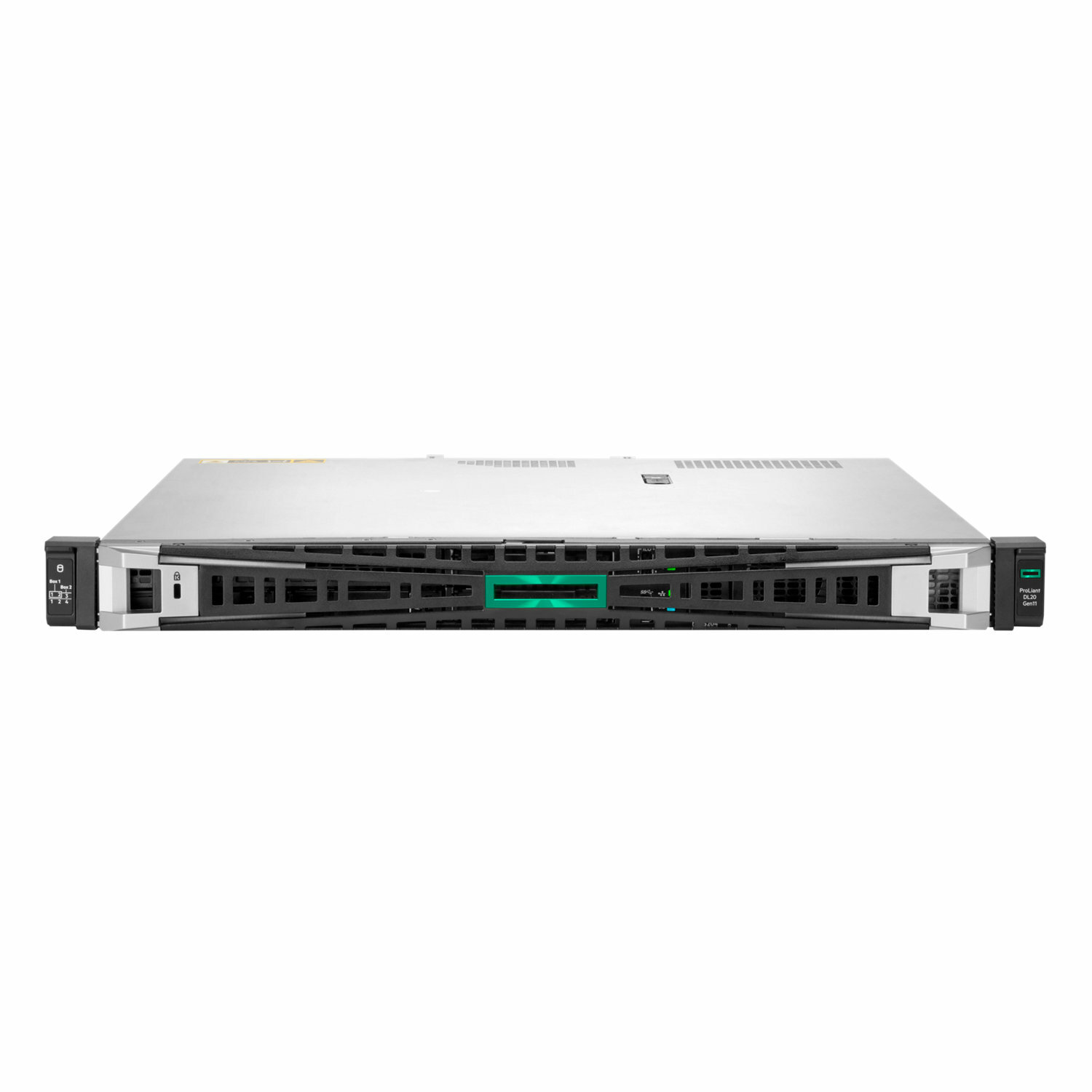

Compact, Secure, and Reliable Design for an Affordable Solution
HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen11 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle a range of light workloads to more demanding requirements with affordable configuration choices and a wide variety of Hewlett Packard Enterprise qualified options.

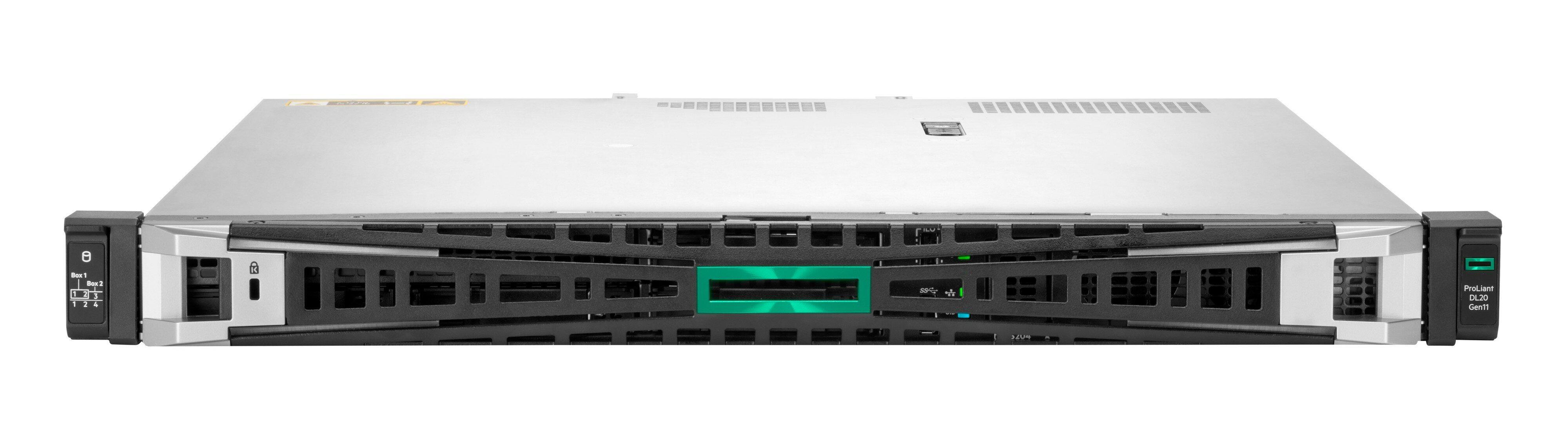

Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs
HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
Experience outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR5 ECC UDIMMs, 290W, 500W, 800W or 1000W power supplies, and a more efficient deployment of options via HPE PCIe and OCP slots - now supporting PCIe 5.0.
The reliable HPE ProLiant DL20 Gen11 server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
Along with an embedded 4 x 1GbE, you have a choice of HPE PCIe standup adapters that offer a choice of networking bandwidth (1GbE to 10GbE) and fabric, so you can adapt and grow to changing business needs.
HPE iLO6 provides a more efficient and easier server management. It enables large-scale firmware deployment, improved GUI to simplify management with industry-standard APIs, and easy system debug access.

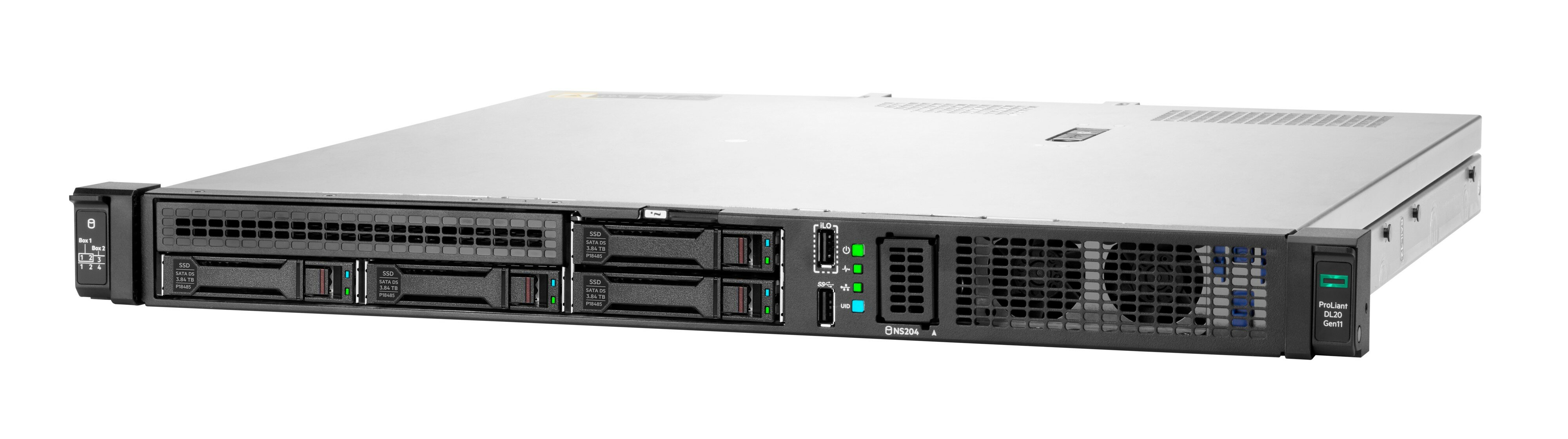

Security Innovations
Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
Millions of lines of firmware code run before the server operating system boots. With Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours, verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.
Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorized access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection Kit logs and alerts when the server hood is removed for further protection.

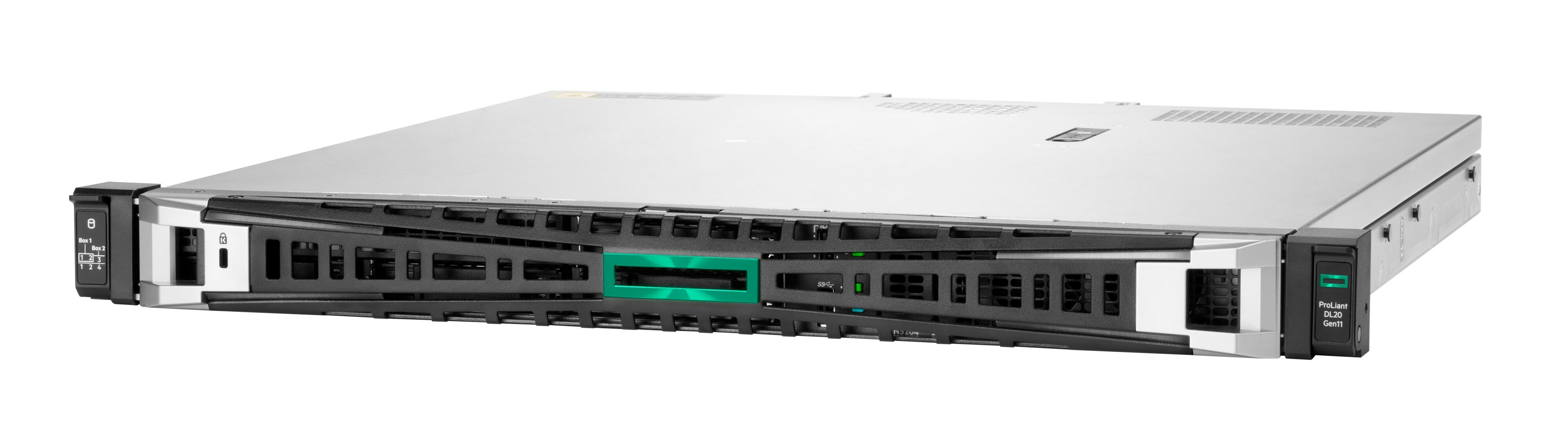

Industry-leading Services and Ease of Deployment
HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.
Operational Services from HPE Services includes: HPE Complete Care, HPE Tech Care and project-based services, such as Integration and Performance services. Additional services can be added to customize your experience at any stage of your IT lifecycle.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
