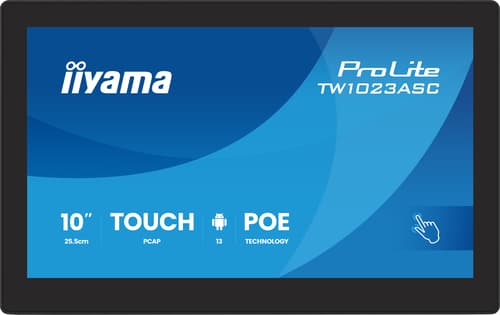

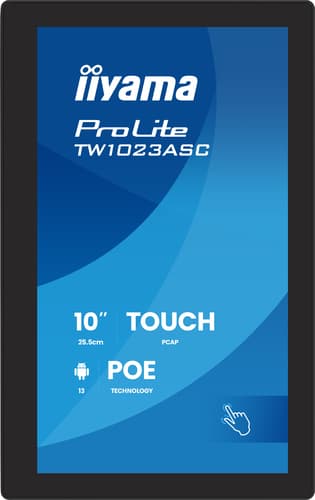

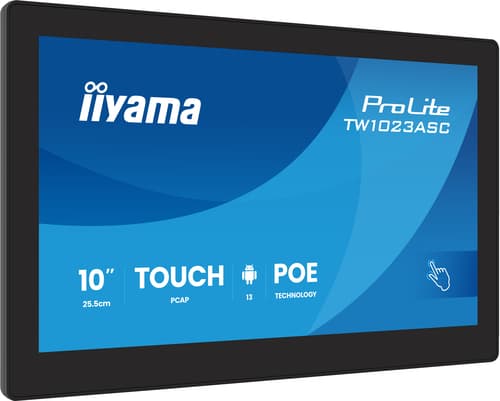

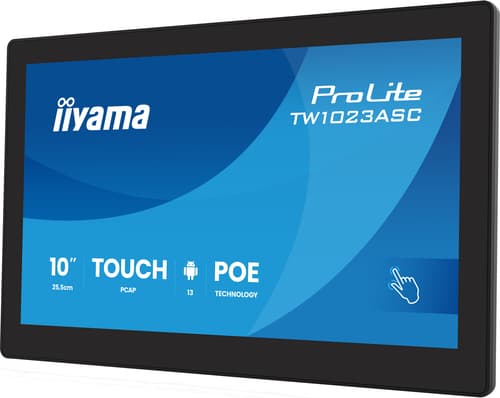

iiyama TW1023ASC-B3P 10.1" Projective Ca
iiyama TW1023ASC-B3P. Product design: Kiosk design. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display brightness: 385 cd/m², HD type: WXGA, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Similar Products
Overview
iiyama TW1023ASC-B3P, Kiosk design, 25.6 cm (10.1"), 1280 x 800 pixels, Wi-Fi, 24/7
Specifications
Display
- HD type
- WXGA
- Touchscreen
- Yes
- Panel type
- IPS
- Touchscreen technology
- Projected capacitive system
- Number of simultaneous touchpoints
- 10
- Display number of colours
- 16.7 million colours
- Multi-touch
- Yes
- Viewing angle, horizontal
- 160° °
- Display diagonal (metric)
- 25.5 cm cm
- Active display area (W x H)
- 216.6 x 135.4 mm mm
- Display diagonal
- 25.6 cm (10.1") cm
- Display resolution
- 1280 x 800 pixels pixels
- Display brightness
- 385 cd/m² cd/m²
- Native aspect ratio
- 16:10
- Response time
- 25 ms ms
- Contrast ratio (typical)
- 1000:1
- Pixel pitch
- 0.1692 x 0.1692 mm mm
- Glass thickness
- 1.25 mm mm
- Colour depth
- 8 bit bit
- Surface hardness
- 6H
- Viewing angle, vertical
- 160° °
Ports & interfaces
- Compatible memory cards
- SD
- DC-in jack
- Yes
- USB connector type
- Micro-USB, USB Type-A
- PC Audio in
- Yes
- USB ports quantity
- 4
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- DVI port
- No
- DisplayPorts quantity
- 0
- HDMI input ports quantity
- 1
- Mini HDMI ports quantity
- 1
- USB port
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Card reader integrated
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Design
- Product design
- Kiosk design
- Fingerprint resistant
- Yes
- VESA mounting
- Yes
- Orientation
- Horizontal/Vertical
- Bezel colour
- Black
- Product colour
- Black
Weight & dimensions
- Height
- 172 mm mm
- Display weight
- 800 g g
- Display width
- 255 mm mm
- Display depth
- 30.5 mm mm
- Weight
- 800 g g
- Display height
- 172 mm mm
- Width
- 255 mm mm
- Depth
- 30.5 mm mm
Performance
- Number of microphones
- 1
- Operating hours (hours/days)
- 24/7
- Purpose
- Universal
Power
- Power consumption (typical)
- 18 W W
- Power consumption (standby)
- 0.5 W W
- Power consumption (off)
- 0.3 W W
- Input voltage
- 12 V V
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 3 W W
Computer system
- Processor manufacturer
- Rockchip
- Processor family
- ARM Rockchip
- Processor model
- RK3568
- Processor cores
- 4
- Operating system installed
- Android
- Internal storage capacity
- 32 GB GB
- Operating system version
- 13
- Built-in processor
- Yes
- Processor frequency
- 2 GHz GHz
- Internal memory
- 4 GB GB
- On-board graphics card model
- Mali-G52 MC1
- Google applications
- Google Chrome, Gmail, Google Calendar
Technical details
- Compliance certificates
- CE, EAC, REACH, RoHS, UKCA, WEEE
- Audio in (mini jack)
- Yes
- User controls
- Power, home, brightness +, brightness -, volume +, volume -
- Sustainability certificates
- ErP
Packaging data
- Package width
- 398 mm mm
- Package height
- 223 mm mm
- Package depth
- 68 mm mm
- Package weight
- 1.36 kg kg
Certificates
- Certification
- CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Other features
- Bluetooth
- Yes
- Megapixel (approx.)
- 5 MP MP
- RJ-45 ports quantity
- 1
- USB 2.0 ports quantity
- 2
- Power supply type
- External
- Micro-USB ports quantity
- 1
- Viewable size, vertical
- 13.5 cm cm
- Cable management
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
- Viewable size, horizontal
- 21.7 cm cm
- Audio input
- Y
- Bluetooth version
- 5.2
- Built-in microphone
- Yes
- Brightness
- 385 cd/m² cd/m²
- Built-in camera
- Yes
Packaging content
- Power adapter included
- Yes
- Cables included
- AC
Logistics data
- Products per pallet
- 256 pc(s) pc(s)
- Pallet gross length
- 100 cm cm
- Pallet gross width
- 2.15 m m
- Pallet gross height
- 120 cm cm
Features
- Suitable for indoor use
- Yes
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

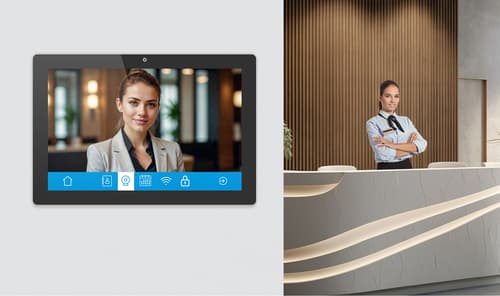

Build-in webcam, microphone and speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
