This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

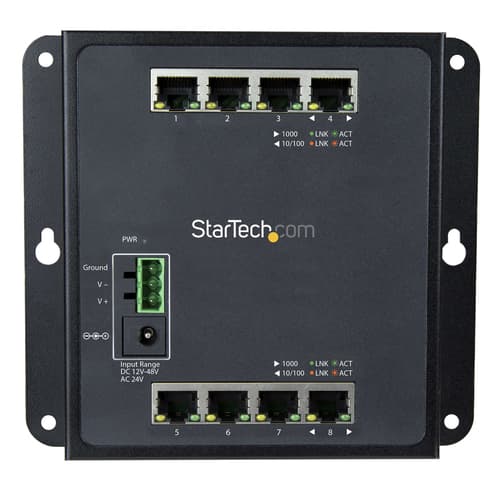

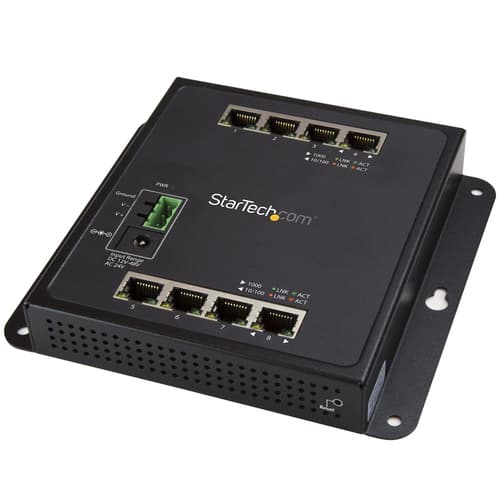

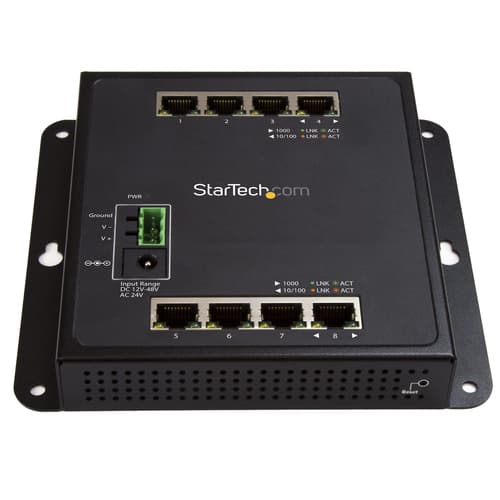

INDUSTRIAL 8 PORT GIGABIT MANAGED WA
- Easy access to ports and indicators with front-facing port configuration
- Achieve optimal network performance with L2 management
- Expands your network with 8 RJ45 ports in one Gigabit network switch
- Designed for harsh industrial environments with IP30 rugged metal housing and extended temperature range
- Install discreetly with the compact wall-mount or DIN-rail mount design
Similar Products
Overview
StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Installed SFP+ modules quantity
- 0
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Power connector
- DC-in jack
Network
- Auto MDI/MDI-X
- Yes
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-TX
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Tagged VLAN
Data transmission
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Store-and-forward
- Yes
Security
- Access Control List (ACL)
- Yes
Performance
- Maximum data transfer rate
- 2000 Mbit/s Mbit/s
- Plug and Play
- Yes
- Mean time between failures (MTBF)
- 100000 h h
- Maximum cable length
- 100 m m
- Buffer size
- 512 KB KB
Power
- Power supply included
- Yes
- DC input voltage
- 12 - 48 V V
- Power plug type
- Type M
- Output current
- 1.5 A A
- Output voltage
- 12 V V
Other features
- Terminal block port
- Yes
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C °C
- Storage temperature (T-T)
- -40 - 90 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
Weight & dimensions
- Width
- 148 mm mm
- Depth
- 134 mm mm
- Height
- 25 mm mm
- Weight
- 490 g g
Protocols
- Management protocols
- IPv4, IPv6
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Activity, Link, Power
- Wall mountable
- Yes
- International Protection (IP) code
- IP30
Packaging data
- Pinlock included
- Yes
- Washers included
- Yes
- DIN rail included
- Yes
- Dust cap included
- Yes
- Package width
- 170 mm mm
- Package depth
- 300 mm mm
- Package weight
- 1 kg kg
- Terminal block included
- Yes
- Package height
- 90 mm mm
- AC adapter included
- Yes
- Screws included
- Yes
Logistics data
- Master (outer) case width
- 480 mm mm
- Products per master (outer) case
- 10 pc(s) pc(s)
- Master (outer) case length
- 420 mm mm
- Master (outer) case height
- 365 mm mm
- Harmonized System (HS) code
- 85176990
Management features
- Switch type
- Managed
- Switch layer
- L2
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No

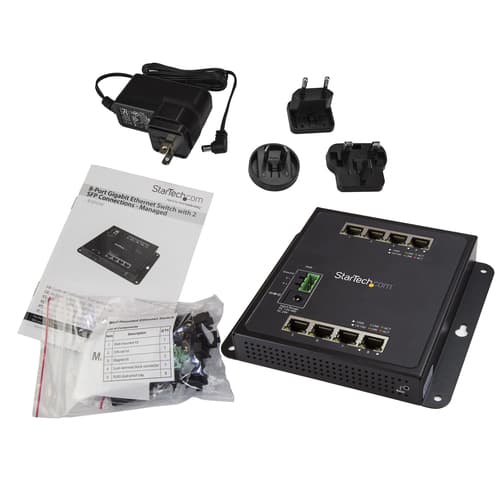

Packaging content
- Quick start guide
- Yes
Certificates
- Certification
- CE, FCC, RoHS, TAA
