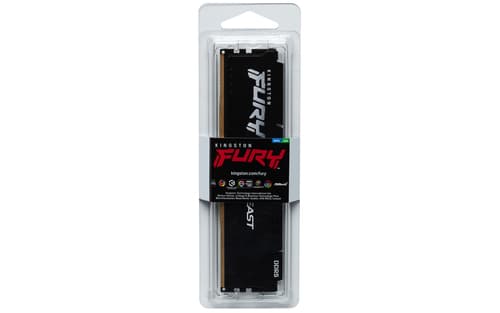

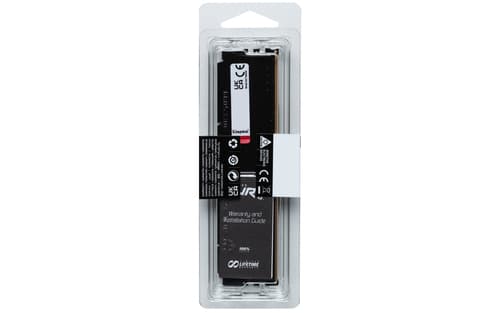

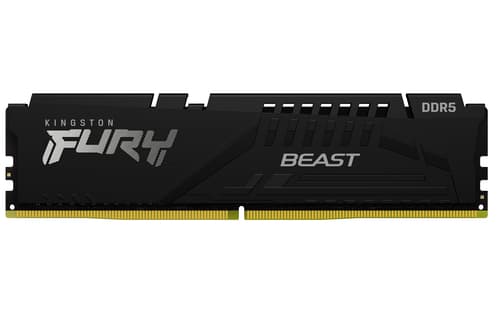

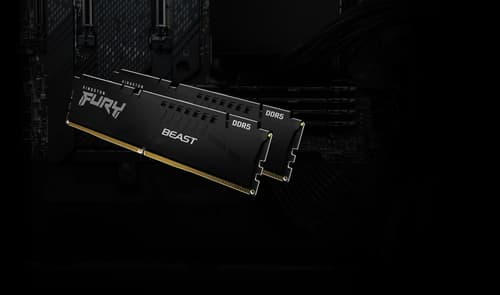

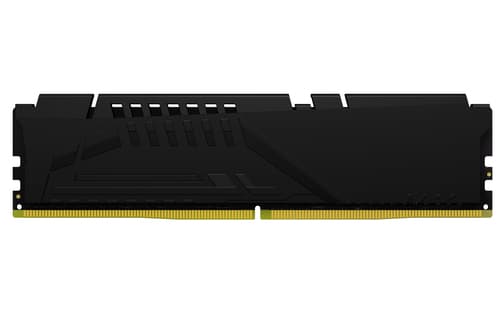

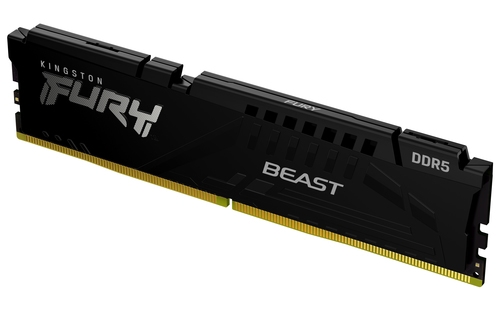

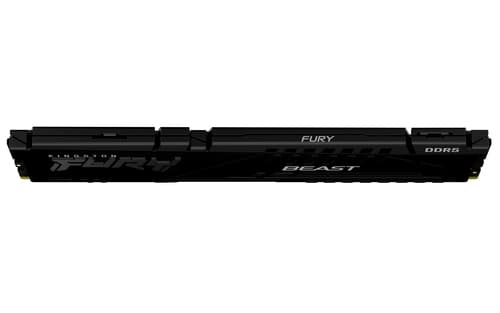

Kingston FURY Beast - DDR5 - module - 32 GB - DIMM 288-pin

Kingston FURY Beast - DDR5 - module - 32 GB - DIMM 288-pin

Name: Kingston FURY Beast - DDR5 - module - 32 GB - DIMM 288-pin
Brand: Kingston
SKU: KF556C40BB-32
Price: 122.67 GBP
Availability: InStock

Manuf P/N: KF556C40BB-32

APAXON#: 7337041

EAN: 740617326567

Kingston FURY Beast - DDR5 - module - 32 GB - DIMM 288-pin - 5600 MT/s / PC5-44800 - CL40 - 1.25 V - unbuffered - on-die ECC

AMD EXPO certified
Qualified by the world’s leading motherboard manufacturers*

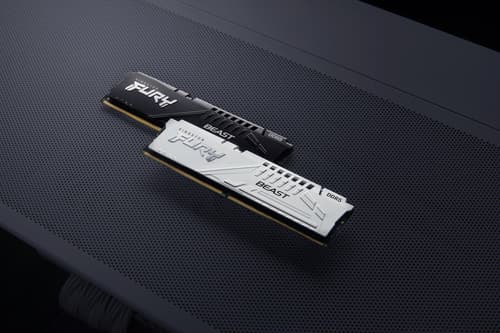

Low-profile heat spreader design in black or white

Stock22

Price £122.67

Quantity

Notify me when available.

Product Summary

Kingston FURY KF556C40BB-32 is a 4G x 64-bit (32 GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25 V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1 V. Each 288-pin DIMM uses gold contact fingers.

Extended Specification

General

Capacity

32 GB GB

Features

Memory layout (modules x size)

1 x 32 GB GB

Memory data transfer rate

5600 MT/s MT/s

Memory voltage

1.25 V V

Row cycle time

48 ns ns

Refresh row cycle time

295 ns ns

Row active time

32 ns ns

Programming power voltage (VPP)

1.8 V V

Internal memory

32 GB

Memory layout (modules x size)

1 x 32 GB

Memory data transfer rate

5600 MT/s

Component for

ECC

Buffered memory type

Unregistered (unbuffered)

On-Die ECC

Yes

CAS latency

Memory ranking

Memory voltage

1.25 V

Module configuration

4096M x 64

Row cycle time

48 ns

Refresh row cycle time

295 ns

Row active time

32 ns

Intel Extreme Memory Profile (XMP)

Yes

Intel Extreme Memory Profile (XMP) version

3.0

Programming power voltage (VPP)

1.8 V

Country of origin

China, Taiwan

Cooling type

Heatsink

Lead plating

Gold

JEDEC standard

Yes

Operational conditions

Operating temperature (T-T)

0 - 85 °C °C

Storage temperature (T-T)

-55 - 100 °C °C

Operating temperature (T-T)

0 - 85 °C

Storage temperature (T-T)

-55 - 100 °C

Weight & dimensions

Width

6.62 mm mm

Depth

133.3 mm mm

Height

34.9 mm mm

Weight

34.59 g g

Width

6.62 mm

Depth

133.3 mm

Height

34.9 mm

Weight

34.59 g

Packaging data

Package width

57.1 mm mm

Package depth

14 mm mm

Package height

171.4 mm mm

Package weight

54.1 g g

Package width

57.1 mm

Package depth

14 mm

Package height

171.4 mm

Package weight

54.1 g

Logistics data

Master (outer) case width

196.8 mm mm

Master (outer) case length

311.1 mm mm

Master (outer) case height

61 mm mm

Master (outer) case gross weight

1.5 kg kg

Products per master (outer) case

25 pc(s) pc(s)

Master (outer) case width

196.8 mm

Master (outer) case length

311.1 mm

Master (outer) case height

61 mm

Harmonized System (HS) code

84733020

Master (outer) case gross weight

1.5 kg

Products per master (outer) case

25 pc(s)

Memory

Technology

DDR5 SDRAM

Form Factor

288-pin DIMM

Speed

5600 MT/s (PC5-44800)

Disclaimers

* Featured on the Qualified Vendor Lists (QVL) of the world’s leading motherboard manufacturers.
