This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

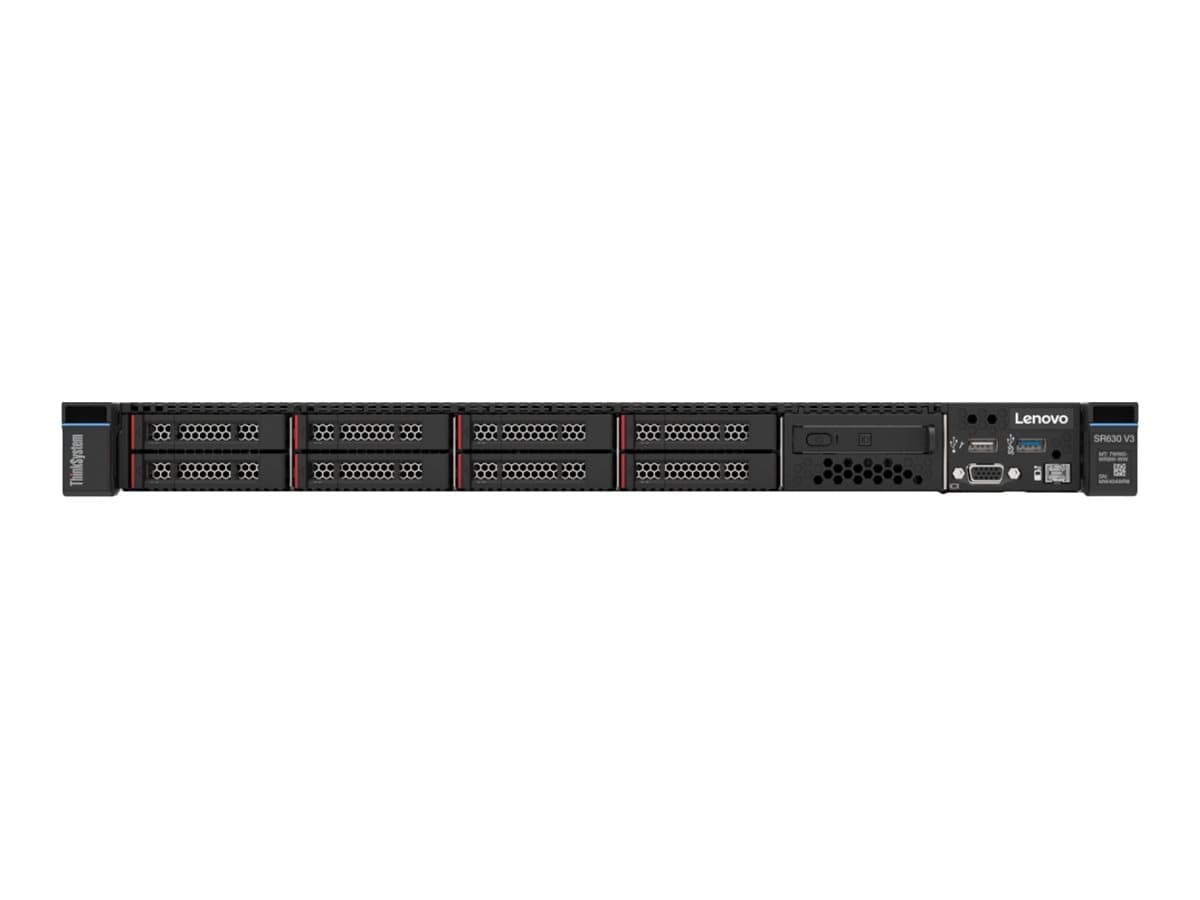

Lenovo ThinkSystem SR630 V3 7D73
Server
rack-mountable 1U
2-way
1 x Xeon Silver 4510 / up to 4.1 GHz
RAM 32 GB
SAS
hot-swap 2.5" bay(s)
no HDD
AST2600
no OS
monitor: none
- 6 performance fans for optimal cooling
- 8 hot-swap bays for flexible storage scalability
- Trusted Platform Module (TPM 2.0) for enhanced security
- Multiple USB and VGA ports for high-speed connectivity
- Supports up to 32 DIMM slots with DDR5 SDRAM for improved memory performance
Similar Products
Overview
The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. Combining performance and flexibility, the SR630 V3 server is a great choice for enterprises of all sizes. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
Main Specifications
- Product Description
- Lenovo ThinkSystem SR630 V3 - rack-mountable Xeon Silver 4510 2.4 GHz - 32 GB - no HDD
- Type
- Server - rack-mountable
- Height (Rack Units)
- 1U
- Localisation
- Region: EMEA
- Server Scalability
- 2-way
- Processor
- 1 x Intel Xeon Silver 4510 / 2.4 GHz (up to 4.1 GHz, (12-core)
- Cache Memory
- 30 MB L3 Cache
- Cache Per Processor
- 30 MB
- RAM
- 32 GB (installed) / 8 TB (max) - DDR5 SDRAM - ECC
- Storage Controller
- RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 9350-8i)
- Server Storage Bays
- Hot-swap 2.5"
- Hard Drive
- No HDD
- Optical Storage
- No optical drive
- Graphics Controller
- ASPEED AST2600
- Video Memory
- 16 MB
- Power
- (50/60 Hz)
- Power Redundancy
- Optional
- OS Provided
- No operating system
- Dimensions (WxDxH)
- 44 cm x 77.3 cm x 4.3 cm
- Weight
- 20.8 kg
- Environmental Standards
- EPEAT Bronze
- Manufacturer Warranty
- Limited warranty - 3 years - on-site - response time: next business day
Associated Documents
Product Features
Efficient cooling system
Equipped with 6 performance fans, this server ensures optimal cooling, maintaining performance even under heavy workloads.
Scalable storage options
With 8 hot-swap bays and support for 2. 5" SAS drives, the system offers flexible storage scalability, allowing for easy upgrades and maintenance.
Robust security features
Featuring a Trusted Platform Module (TPM 2. 0) security chip and a chassis intrusion switch, it provides enhanced security measures to protect critical data.
High-speed connectivity
Offers a variety of USB 3. 2 Gen 1 and USB 2. 0 ports along with VGA and management RJ-45 connectors, ensuring high-speed connectivity and easy management.
Advanced memory support
Supports up to 32 DIMM slots with DDR5 SDRAM technology, allowing for significant memory expansion and performance improvements in a two-processor configuration.
Specifications
Cache Memory
- Installed Size
- L3 Cache - 30 MB
- Cache Per Processor
- 30 MB
Optical Storage
- Type
- No optical drive
Operating System / Software
- OS Provided
- No operating system
Monitor
- Monitor Type
- None
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
- Graphics Processor
- ASPEED AST2600
Hard drive
- Type
- No HDD
Weight & dimensions
- Width
- 44 cm
- Height
- 4.3 cm
- Depth
- 77.3 cm
Processor / Chipset
- CPU Qty
- 1
- Max CPU Qty
- 2
- Clock Speed
- 2.4 GHz
- Number of Cores
- 12-core
- Max Turbo Speed
- 4.1 GHz
- Chipset Type
- Intel C741
- CPU
- Intel Xeon Silver 4510
Sustainability
- EPEAT Compliant
- EPEAT Bronze
General
- Type
- Server
- Hot-Swap Bays Qty
- 8
- Server Scalability
- 2-way
- Product Form Factor
- Rack-mountable - 1U
- Embedded Security
- Trusted Platform Module (TPM 2.0) Security Chip
- Localisation
- Region: EMEA
- Built-in Devices
- 6 x performance fans
RAM
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5"
- Interfaces
- 5 x USB 3.2 Gen 1 (1 front, 3 rear, 1 internal) 1 x USB 2.0 (1 in front) 1 x VGA (1 rear) 1 x management - RJ-45
- Service & Support
- Limited warranty - 3 years - on-site - response time: next business day
- Configuration Features
- 1 x 32 GB
- Effective Memory Speed
- 2200 MHz
- Rated Memory Speed
- 2200 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 32 (Total) / 31 (empty)
- Features
- Registered, Memory Mirroring, slots 17 - 32 are available in two-processor configuration only
- Technology
- DDR5 SDRAM - ECC
- Installed Size
- 32 GB (installed) / 8 TB (max)
Network
- Remote Management Protocol
- SNMP 3, IPMI 2.0
- Remote Management Controller
- XClarity Controller 2 (XCC2) Platinum
Miscellaneous
- Theft/Intrusion Protection
- Chassis intrusion switch
- Compliant Standards
- FCC Class A certified, EN 61000-3-2, GS, EN55024, GB 17625.1, VCCI Class A, GB 4943.1, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, CISPR 32 Class A, CISPR 35, TP TC 004/2011, TP TC 020/2011, HJ 2507-2011, CNS 15663, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, EN61000-3-3, EN55032 Class A, CNS14336-1, EN55035, EN50581-1 (RoHS), UL2819, BIS 13252 (Part 1)
Power
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Device Type
- Power supply - hot-plug
- Power Provided
- 1100 Watt
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- 80 PLUS Certification
- 80 PLUS Titanium
- Voltage Required
- AC 100-240 V (50/60 Hz)
Storage Controller
- Channel Qty
- 8
- Buffer Size
- 2 GB
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Type
- 1 x RAID - PCIe 3.0 x8
- Storage Controller Name
- ThinkSystem RAID 9350-8i
