Next-working-day delivery. Order before 17:30 (England & Wales) or 16:00 (Northern Ireland, Republic of Ireland, Scotland) to receive next-working-day delivery. Orders placed before 17:30 Friday are delivered Monday; after 17:30 Friday arrive Tuesday. Upgrades — pre-9, pre-10:30, pre-noon, special and secure bulk — available at extra cost.
Orders over £100 (ex VAT) receive FREE next-working-day delivery across the UK.
Instant digital delivery. Software licences, subscriptions, warranties & insurance, and electronic copies are delivered the same day via email — provided a valid email address is entered at checkout.
Currently Unavailable
This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

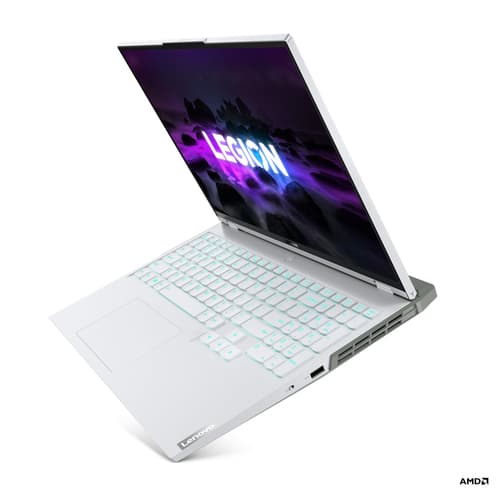

LEGION5P PRO R7 16GB 1TB RTX3070
Lenovo Legion 5 Pro 16ACH6H. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 7, Processor model: 5800H, Processor frequency: 3.2 GHz. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon Graphics. Operating system installed: Windows 10 Home. Product colour: Black, Grey
- 1TB SSD M.2 2280 PCIe 3.0x4 NVMe
- Windows 10 Home 64
- AMD Ryzen 7 5800H (8C/16T, 3.2/4.4GHz, 4MB L2/16MB L3)
- NVIDIA GeForce RTX 3070 8GB , Boost Clock 1560 / 1620MHz, TGP 140W
- 2x 8GB SO-DIMM DDR4-3200
Similar Products
Overview
Lenovo Legion 5 Pro 16ACH6H, AMD Ryzen™ 7, 3.2 GHz, 40.6 cm (16"), 2560 x 1600 pixels, 16 GB, 1 TB
Specifications
Storage
- SSD interface
- PCI Express
- Card reader integrated
- No
- Optical drive type
- No
- Total SSDs capacity
- 1 TB TB
- Number of SSDs installed
- 1
- Storage media
- SSD
- SSD capacity
- 1 TB TB
- Total storage capacity
- 1 TB TB
- SSD form factor
- M.2
Security
- Fingerprint reader
- No
- Password protection
- Yes
- Password protection type
- HDD, Power on, Supervisor
Weight & dimensions
- Width
- 356 mm mm
- Weight
- 2.45 kg kg
- Depth
- 264.4 mm mm
- Height (front)
- 2.17 cm cm
- Height (rear)
- 2.69 cm cm
Design
- Colour name
- Storm grey (top) Black (bottom)
- Housing material
- Aluminium
- Market positioning
- Gaming
- Product type
- Laptop
- Product colour
- Black, Grey
- Form factor
- Clamshell
Display
- Display diagonal
- 40.6 cm (16") cm
- Panel type
- IPS
- LED backlight
- Yes
- Display brightness
- 500 cd/m² cd/m²
- Display resolution
- 2560 x 1600 pixels pixels
- Touchscreen
- No
- HD type
- WQXGA
- Native aspect ratio
- 16:10
- Anti-glare screen
- Yes
- Maximum refresh rate
- 165 Hz Hz
Processor
- Processor family
- AMD Ryzen™ 7
- Processor model
- 5800H
- Processor frequency
- 3.2 GHz GHz
- Processor generation
- AMD Ryzen 5000 Series
- Processor manufacturer
- AMD
- Processor cores
- 8
- Processor boost frequency
- 4.4 GHz GHz
Memory
- Maximum internal memory
- 32 GB GB
- Internal memory
- 16 GB GB
- Internal memory type
- DDR4-SDRAM
- Memory clock speed
- 3200 MHz MHz
- Memory layout (slots x size)
- 2 x 8 GB GB
- Memory form factor
- SO-DIMM
- Memory slots
- 2x SO-DIMM
Ports & interfaces
- Combo headphone/mic port
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Sleep-and-Charge ports
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- HDMI ports quantity
- 1
- USB Sleep-and-Charge
- Yes
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB4 Gen 3x2 ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- HDMI version
- 2.1
Performance
- Motherboard chipset
- AMD SoC
Graphics
- On-board graphics card
- Yes
- Discrete graphics card
- Yes
- On-board graphics card model
- AMD Radeon Graphics
- Discrete graphics card memory
- 8 GB GB
- Discrete graphics memory type
- GDDR6
- On-board GPU manufacturer
- AMD
- Discrete graphics card model
- NVIDIA GeForce RTX 3070
Audio
- Number of built-in speakers
- 2
- Audio chip
- Realtek ALC3306
- Speaker power
- 2 W W
- Built-in microphone
- Yes
- Number of microphones
- 2
Keyboard
- Pointing device
- Touchpad
- Keyboard backlit
- Yes
- Keyboard language
- UK English
- Numeric keypad
- Yes
Software
- Operating system installed
- Windows 10 Home
- Trial software
- Office
- Operating system architecture
- 64-bit
Camera
- Privacy camera
- Yes
- Front camera
- Yes
- Front camera HD type
- HD
- Privacy type
- Privacy shutter
Network
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s Mbit/s
- Mobile network connection
- No
- Antenna type
- 2x2
- Bluetooth
- Yes
- Bluetooth version
- 5.1
Battery
- Battery capacity
- 80 Wh Wh
- Fast charging
- Yes
- Fast charging time (50%)
- 30 min min
- Battery technology
- Lithium Polymer (LiPo)
- Battery life (max)
- 4.2 h h
Operational conditions
- Operating relative humidity (H-H)
- 8 - 95% %
- Operating temperature (T-T)
- 5 - 35 °C °C
- Storage temperature (T-T)
- 5 - 43 °C °C
- Storage relative humidity (H-H)
- 5 - 95% %
Power
- DC-in jack
- Yes
- USB Power Delivery (USB PD)
- Yes
- AC adapter power
- 300 W W
Certificates
- Compliance certificates
- RoHS
- Certification
- TUV Low Blue Light, ErP Lot 3
Ultimate performance. Uncompromised battery life.
With the all-new AMD Ryzen™ 5000 H-Series Mobile Processors, you can enjoy the best competitive gaming performance on a thin and light notebook with amazing battery life. Never compromise on your gaming laptop again.
Strike hard. Strike true.
The Legion TrueStrike Keyboard features innovative soft-landing switches that deliver deeper strokes with equal force on every strike. This enables you to strike enemies with extreme precision, hair-trigger speeds, and satisfying keystrokes. The superior layout is also illuminated via an optional 4-zone RGB backlight (select models only).
Buy this PC and get a Free upgrade to Windows 11 when available. 1
1Upgrade rollout plan is being finalized and is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device. Certain features require specific hardware, see https://www.microsoft.com/windows/windows-11-specifications.
Cooler. Smarter. Coldfront 3.0.
Building on a generational legacy of max clock speeds for hours of gaming with zero throttling, the Legion 5 Pro’s Legion Coldfront 3.0 takes first-class thermal performance even further. It deploys an intelligent intake system, turbo-charged dual fan design, thermal intake vents beneath keyboard switches, and a quad channel exhaust system.Heat sinks combine with a new intelligent mode to AI-optimize the most demanding eSports titles for next-gen performance—with no framerate drops or stutters at QHD resolution. You can even control the fan speed and voltage with Q Control 4.0 for that full-throttle flow or to extend battery life.
Immersive 3D Nahimic Audio for gamers
Nahimic drastically improves your gaming experience with its immersive 3D audio and engaging features for gamers. Build a competitive advantage with the sound tracker. Experience crystal-clear communication with teammates. Nahimic is a new way of playing and Legion Gamers can exclusively enjoy BT Link, an innovative audio solution that turns any Bluetooth speaker into a surround sound system.
Introducing the Lenovo Legion AI Engine
Take a revolutionary leap forward in your gaming with the Lenovo Legion AI Engine, a system of AI solutions that delivers the highest framerates on today's top AAA games.
Ultimate performance for gamers & creators
Experience ultimate performance with the latest NVIDIA® GeForce RTX™ 30 Series Laptop GPUs for gamers and creators. Supercharged with Ray Tracing Cores, Tensor Cores, and streaming multiprocessors, our thin and light design delivers the most realistic ray-traced graphics, cutting-edge new features, and the power of AI.
Xbox Game Pass. Discover your next favorite game.
Play over 100 high-quality PC games for one low monthly price. EA Play is included and gives you more of the games you love, with access to top Electronic Arts titles on PC, more rewards, and more exclusive content! Use the Xbox app on PC to download and play new games like Halo Infinite the same day they release. With games added all the time, you'll always have something new to play.
Expand your winning zone
Rise above FHD gaming to a new degree of visual superiority with the world’s first 16" QHD gaming display, supporting NVIDIA G-Sync and AMD FreeSync. It boasts 34% increased pixel density, Dolby Vision™, VESA DisplayHDR™ 400 support, and 100% sRGB colour accuracy with over 500 nits peak brightness. Ensure you’re leagues ahead of the pack with overdrive technology, powering up-to-165Hz refresh rates and 3ms response times.
