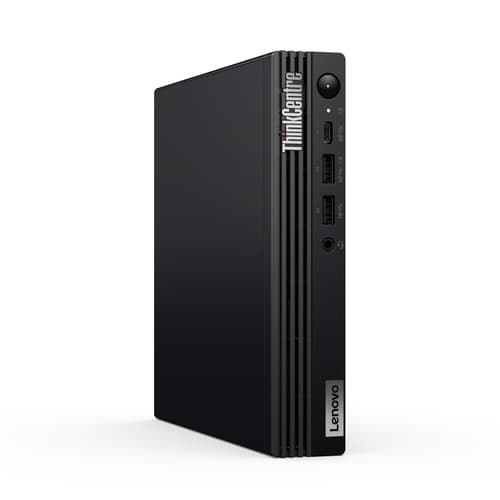

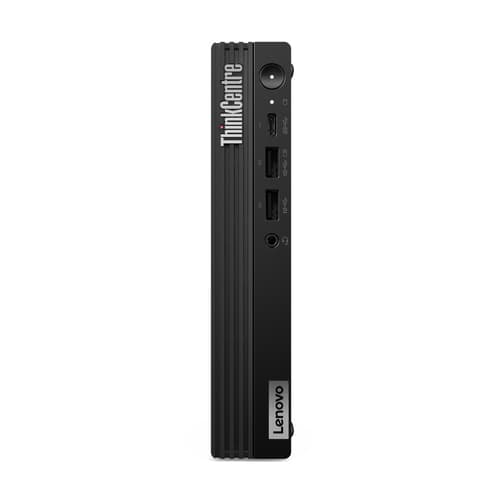

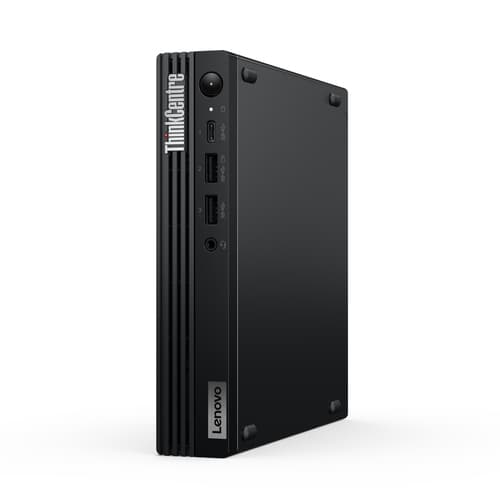

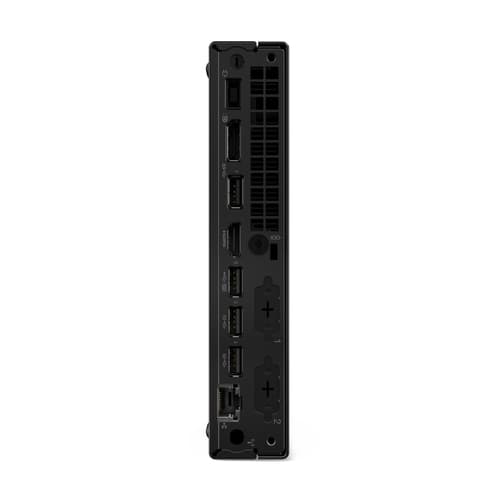

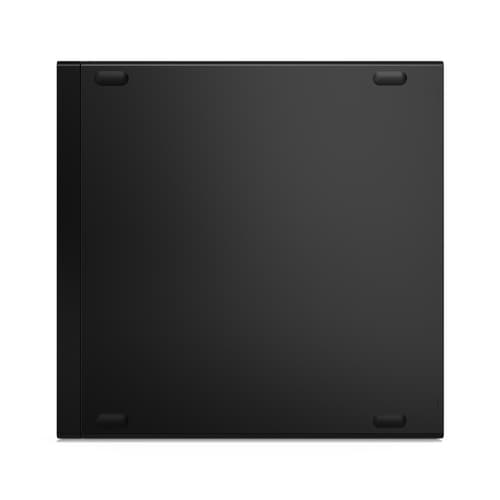

Lenovo ThinkCentre M70q Gen 5 12TD
Manuf P/N: 12TD003QUK
APAXON#: 11261309
EAN: 0198155440359
Lenovo ThinkCentre M70q Gen 5 12TD - Tiny Core i5 i5-14400T / up to 4.5 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption, NVMe - UHD Graphics 730 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: UK - black - Lenovo TopSeller - with 3 Years Lenovo Onsite Support + 1 Year Lenovo Premier Support
- 1x 8GB SO-DIMM DDR5-4800
- 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- Intel UHD Graphics 730
- Windows 11 Pro
- Intel Core i5-14400T, 10C (6P + 4E)/16T, P-core 1.5/4.5GHz, E-core 1.1/3.2GHz, 20MB
Stock434
Price £546.17
Quantity
|
Similar Products
Product Summary
The Lenovo ThinkCentre M70q Gen 5 redefines efficiency and security in a compact package. Designed to fit into any workspace, this ultraslim form factor PC does not compromise on performance or connectivity. At its heart lies a powerful 14th Generation Intel Core i5 processor, supported by advanced DDR5 memory, ensuring swift and responsive computing. Security is paramount, with features like a chassis intrusion switch and a Discrete TPM 2.0 chip safeguarding your data. Connectivity is versatile, with options including USB 3.2 Gen 2, USB-C, and multiple video outputs to support up to three monitors, facilitating an efficient multitasking environment. Wireless connectivity includes Bluetooth 5.3 and Wi-Fi 6E ensuring fast and reliable connections. The Lenovo ThinkCentre M70q Gen 5 is not only powerful and secure but also environmentally conscious, boasting ENERGY STAR 8.0 and EPEAT Silver ratings, making it an ideal choice for eco-aware businesses looking to minimize their carbon footprint without sacrificing performance.
Extended Specification
Processor
Processor family
Intel® Core™ i5
Processor manufacturer
Intel
Processor model
i5-14400T
Processor generation
Intel® Core™ i5 (14th gen)
Processor cores
10
Processor threads
16
Processor boost frequency
4.5 GHz GHz
Performance cores
6
Efficient cores
4
Performance-core Max Turbo Frequency
4.5 GHz GHz
Efficient-core Max Turbo Frequency
3.2 GHz GHz
Performance-core base frequency
1.5 GHz GHz
Efficient-core base frequency
1.1 GHz GHz
Processor cache
20 MB MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
35 W W
Maximum turbo power
82 W W
Memory
Internal memory
8 GB GB
Maximum internal memory
64 GB GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 8 GB GB
Memory slots
2x DIMM
Memory clock speed
4800 MHz MHz
ECC
No
Non-ECC
Yes
Memory channels
Dual-channel
Storage
Total storage capacity
256 GB GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Total SSDs capacity
256 GB GB
Number of SSDs installed
1
SSD capacity
256 GB GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel UHD Graphics 730
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet LAN data rates
100,1000 Mbit/s Mbit/s
Cabling technology
10/100/1000Base-T(X)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Thunderbolt 3 ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4a
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
M.2 card slot (wireless)
1
M.2 card slot (storage)
2
Number of rear USB ports
4
Number of front USB ports
3
Number of front audio ports
1
Design
Chassis type
Mini PC
Product colour
Black
Colour name
Black
Volume
1 L L
VESA mounting
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Performance
Product type
Mini PC
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC233VB
Audio system
High Definition Audio
Built-in speaker(s)
Yes
Number of speakers
1
Password protection
Yes
Password protection type
BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
Windows 11 Pro
Operating system architecture
64-bit
Operating system language
English
Power
Power supply
90 W W
Power supply input voltage
100 - 240 V V
Power supply input frequency
50/60 Hz Hz
Operational conditions
Operating temperature (T-T)
5 - 35 °C °C
Storage temperature (T-T)
-40 - 60 °C °C
Operating relative humidity (H-H)
20 - 80% %
Storage relative humidity (H-H)
10 - 90% %
Operating altitude
0 - 3048 m m
Non-operating altitude
0 - 12192 m m
Certificates
Compliance certificates
RoHS
Certification
ENERGY STAR,TCO,EPEAT Silver,RoHS
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Weight & dimensions
Width
179 mm mm
Depth
182.9 mm mm
Height
36.5 mm mm
Weight
1.25 kg kg
Package width
490 mm mm
Package depth
128 mm mm
Package height
250 mm mm
Package weight
3.2 kg kg
Packaging content
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Keyboard connectivity
Wired
Display
Display included
No
