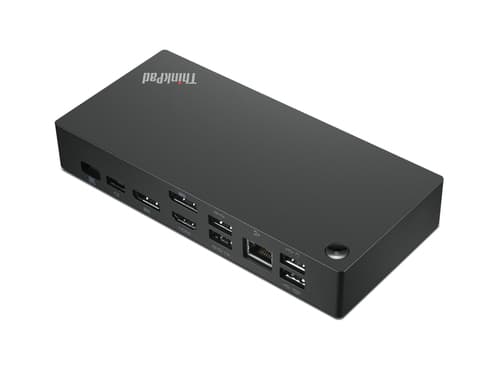

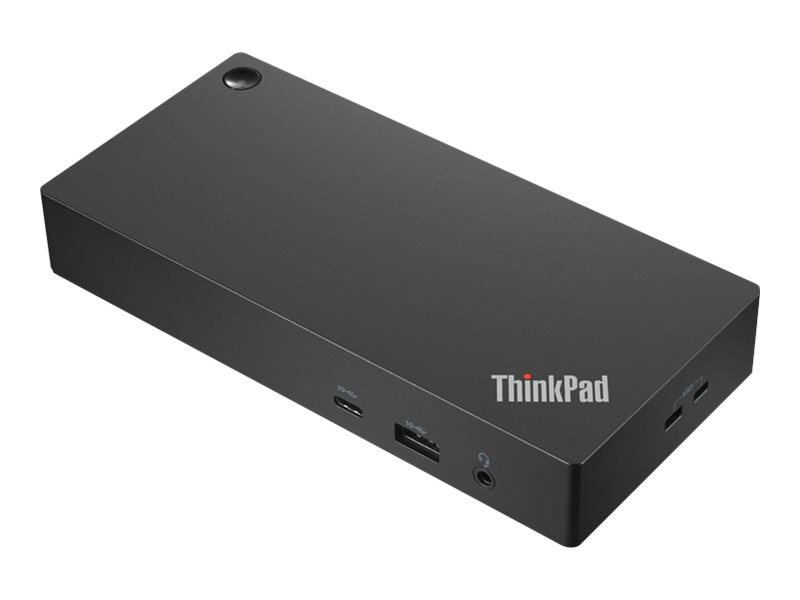

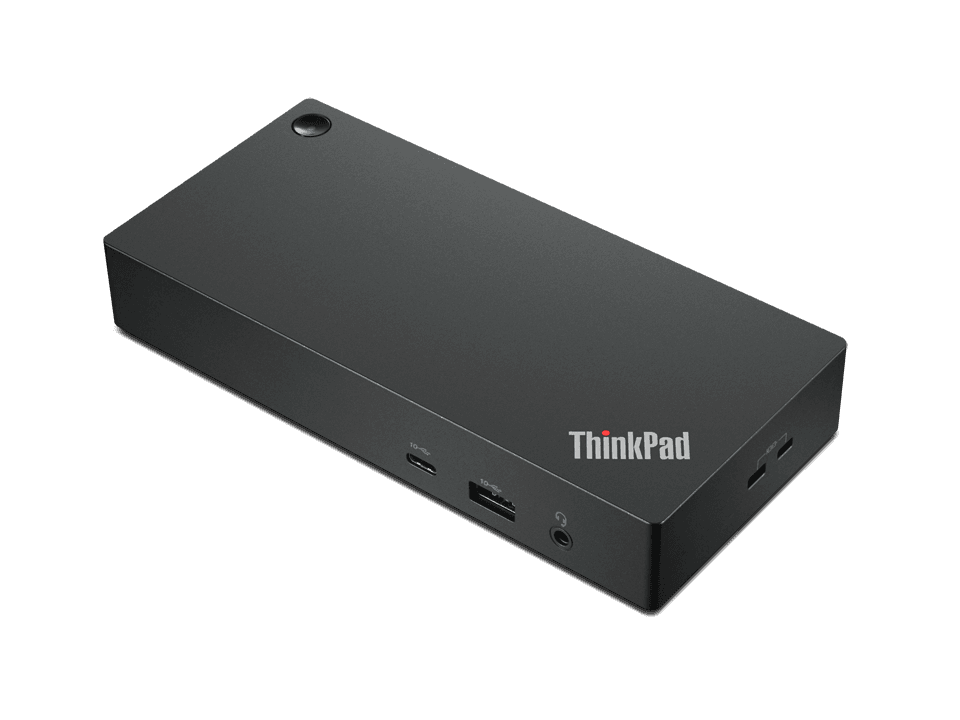

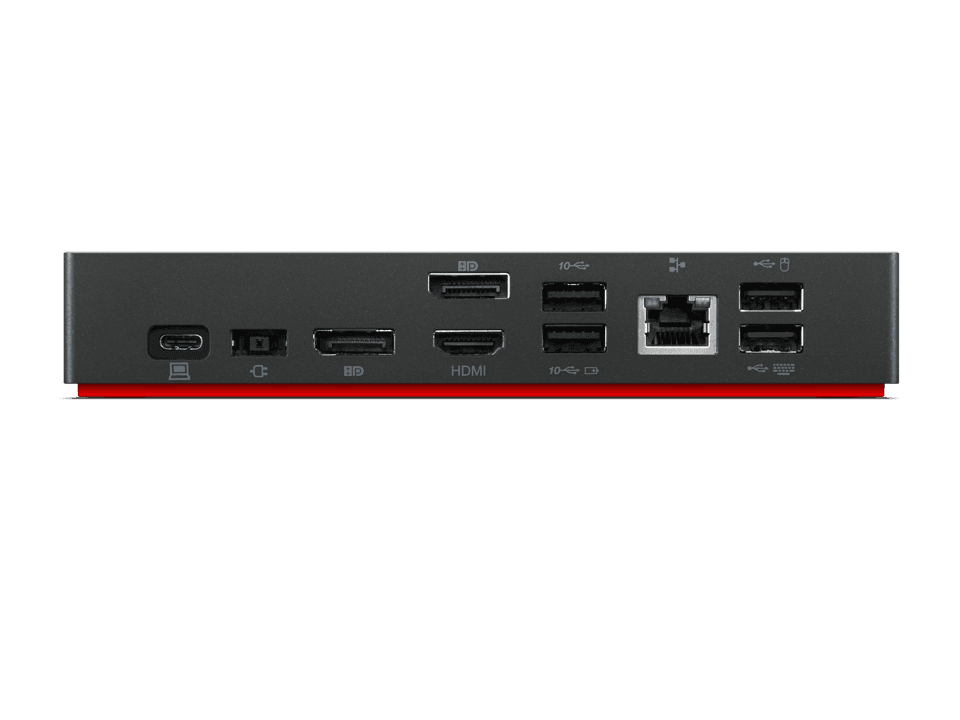

Lenovo ThinkPad Universal USB-C Dock
Thumbnail 0
Thumbnail 1

Lenovo ThinkPad Universal USB-C Dock

Manuf P/N: 40AY0090UK
APAXON#: 6750192
EAN: 195348192033
Lenovo ThinkPad Universal USB-C Dock
Docking station
USB-C
HDMI, 2 x DP
1GbE
90 Watt
Weight: 1.02 KG
  • Broad compatibility
  • One connection, no limitations
  • Ready for your command
Stock1531
Price £138.02
Quantity
|

Similar Products

Lenovo ThinkPad Universal USB-C Dock
Lenovo ThinkPad Universal USB-C Dock
Your Choice
English
United Kingdom
1
Personal computer
N/A GB
Stock
1531
£138.02
Lenovo - Docking station
Lenovo - Docking station
Cheaper
English
United Kingdom
1
Personal computer
N/A GB
Stock
42
£49.81
Lenovo - Docking station
Lenovo - Docking station
Cheaper
English
United Kingdom
1
Personal computer
N/A GB
Stock
0
£68.33
Lenovo Docking station
Lenovo Docking station
Cheaper
English
United Kingdom
1
Personal computer
N/A GB
Stock
96
£98.73
Lenovo USB-C Mini Dock
Lenovo USB-C Mini Dock
Cheaper
English
United Kingdom
1
Personal computer
N/A GB
Stock
136
£98.73

Product Summary

Lenovo understands that modern business depends on a wide variety of PCs and even brands to meet their business needs. To make this easier Lenovo USB-C dock is compatible with Lenovo notebooks as well as with notebooks from other manufacturers.

Main Specifications

Product Description
Lenovo ThinkPad Universal USB-C Dock - docking station - USB-C - HDMI, 2 x DP - 1GbE
Product Type
Docking station
Docking Interface
USB-C
Video Interfaces
HDMI, 2 x DP
Dimensions (WxDxH)
17.1 cm x 8 cm x 3.075 cm
Weight
340 g
Colour
Black
Localisation
United Kingdom, Hong Kong, Singapore, Sri Lanka
Networking
Gigabit Ethernet
Power
Power adapter 90 Watt Power Provided
Manufacturer Warranty
3-year warranty

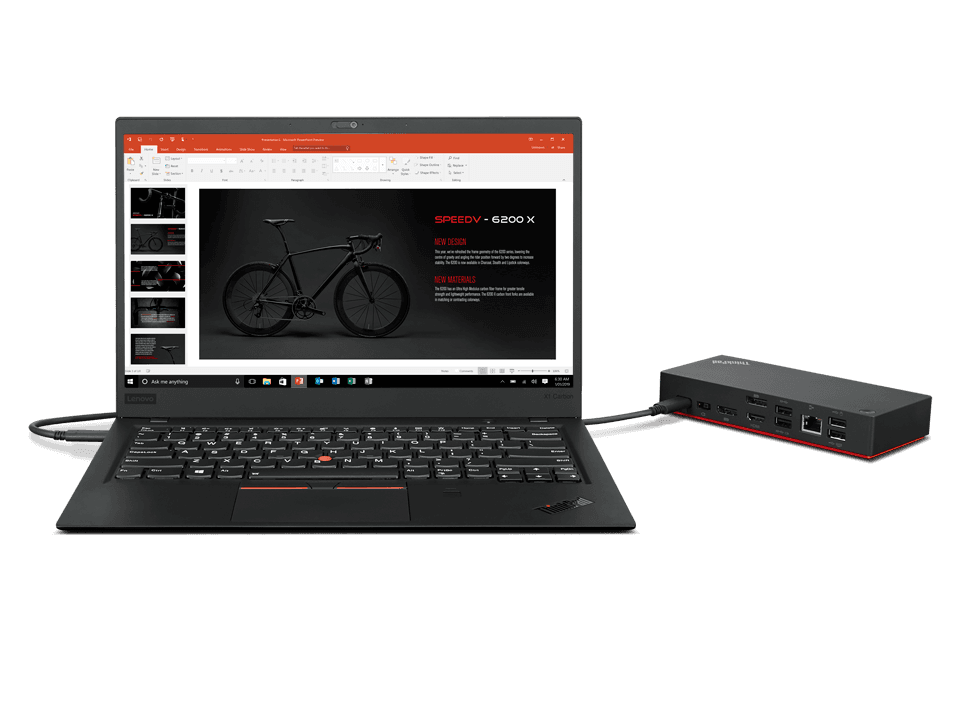

Broad compatibility

Lenovo Docking station is compatible with Lenovo and non-Lenovo notebooks to expand data, power, and video.

One connection, no limitations

Think of all the time you'd save if you could connect all your peripherals at once, transfer USB data at 10 Gbps speeds, have access to a stable, stress-free wired network connection.

Ready for your command

Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN from sleep mode, hibernate mode, and power off mode. It also supports passing ThinkPad MAC address through the dock. Those features are supported on selected ThinkPad notebooks.

Extended Specification

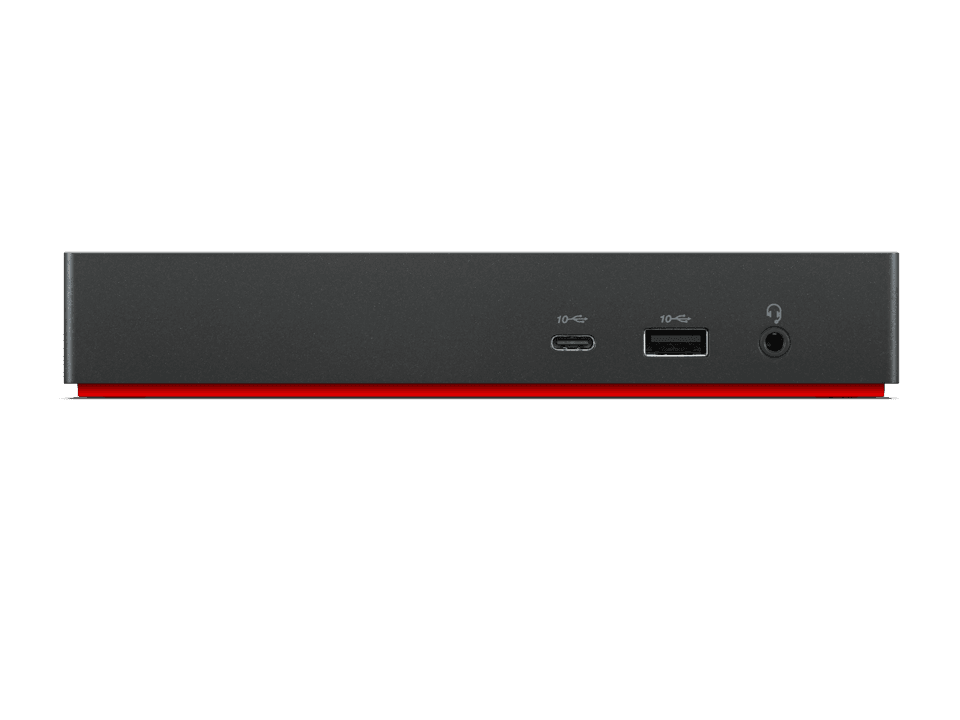

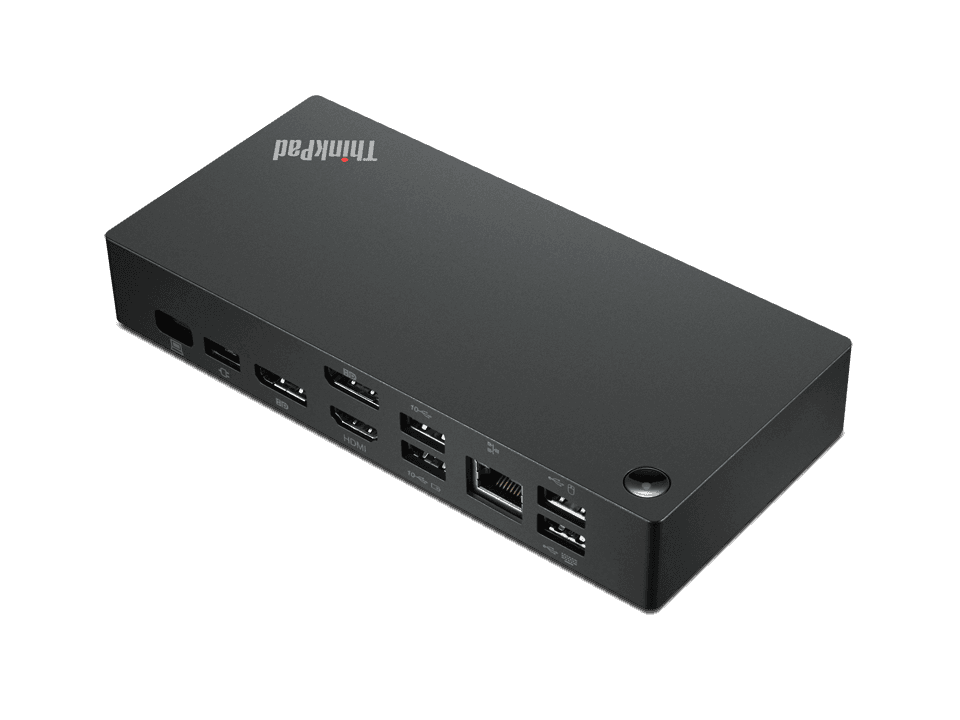

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Microphone in
No
Headphone outputs
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
DisplayPorts quantity
2
Combo headphone/mic port
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Product colour
Black
Card reader integrated
No
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3

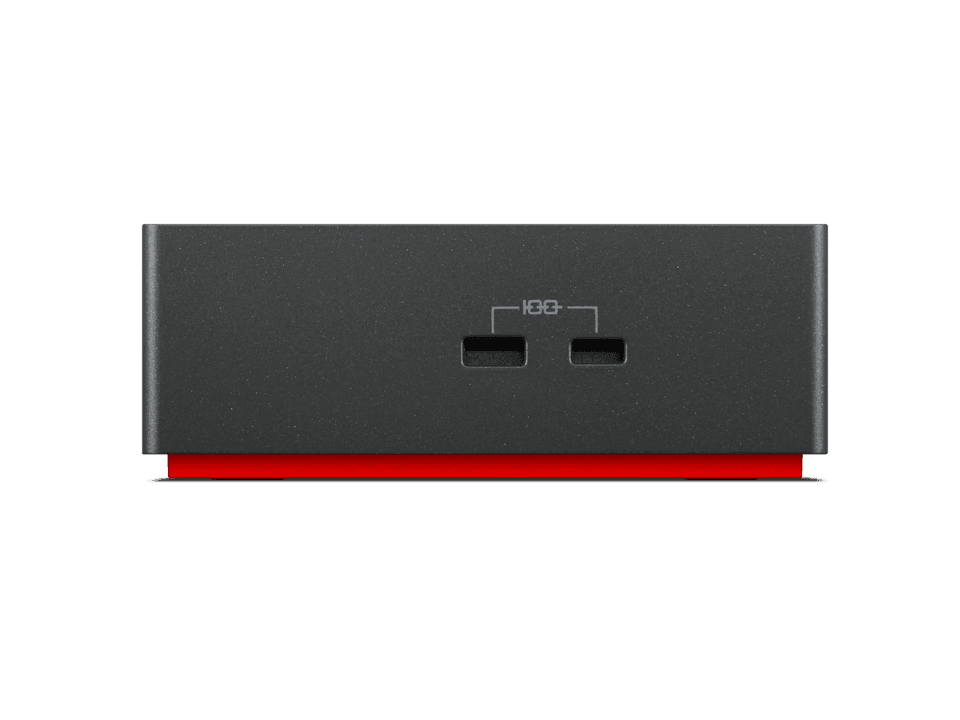

Cable lock slot
Yes
Cable lock slot type
Kensington
On/off switch
Yes
Certification
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Power
Power source type
USB
Power connector
USB Type-C
Power supply
90 W
Software
Windows operating systems supported
Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
171 mm
Depth
80 mm
Height
30.8 mm
Weight
340 g
Packaging data
Quantity per pack
1 pc(s)
Package width
210 mm
Package depth
158 mm
Package height
75 mm
Package weight
955 g

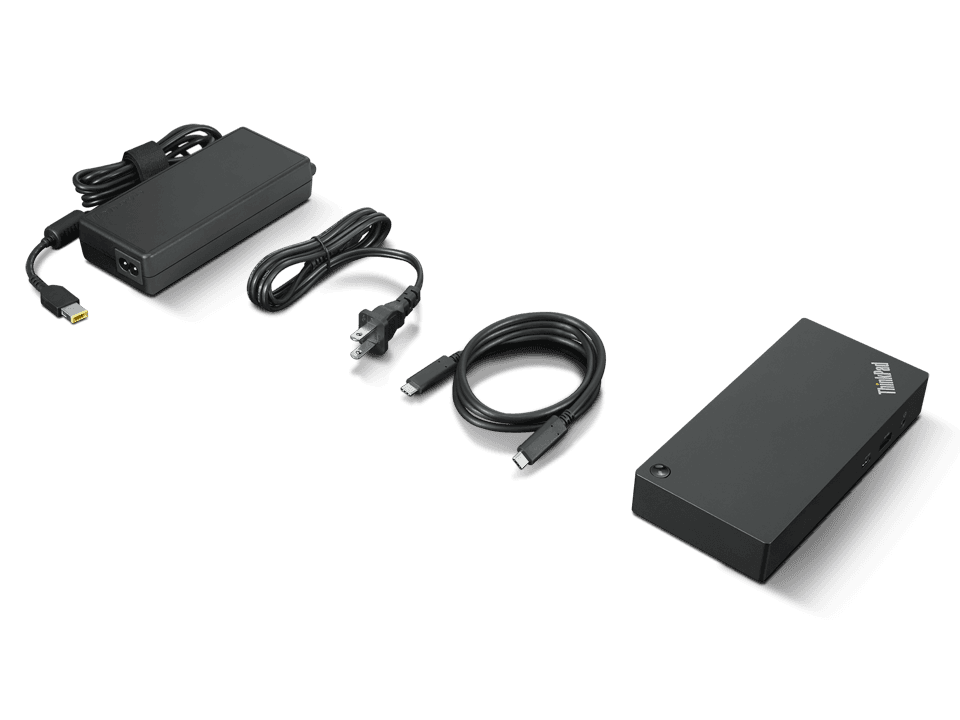

Packaging content
Cables included
USB Type-C
Technical details
Compliance certificates
CE
Logistics data
Harmonized System (HS) code
84733020
