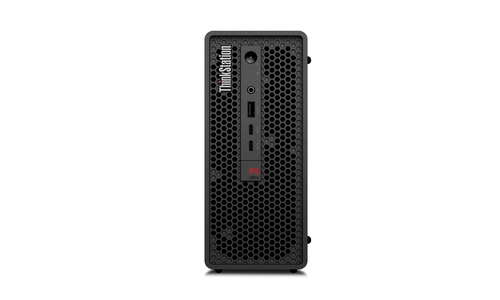

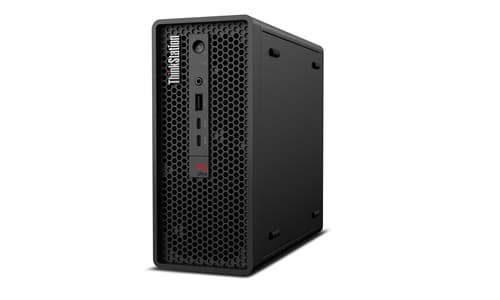

Lenovo ThinkStation P3 Ultra Gen 2 30J5
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10

Lenovo ThinkStation P3 Ultra Gen 2 30J5

Manuf P/N: 30J5002HUK
APAXON#: 11795614
EAN: 0198157892736
Lenovo ThinkStation P3 Ultra Gen 2 30J5
MT 1 x Core Ultra 7 265 / up to 5.3 GHz
vPro Enterprise
RAM 32 GB
SSD 1 TB
TCG Opal Encryption, NVMe, Performance
RTX A400
Gigabit Ethernet
Win 11 Pro
monitor: none
keyboard: UK
Lenovo TopSeller
with 1 Year Lenovo Premier Support
Weight: 5.68 KG
  • 20-core Intel Core Ultra 7 processor for efficient performance
  • 1 TB SSD with RAID support for data security and speed
  • Dual-channel DDR5 SDRAM for seamless multitasking
  • Integrated high definition audio for immersive audio experience
  • Compact mini-tower design for space-saving placement
Stock16
Price £1,644.10
Quantity
|

Product Summary

Enhance performance with the Lenovo ThinkStation P3 Ultra Gen 2, a powerful workstation designed for demanding tasks. Equipped with a 20-core Intel Core Ultra 7 processor, this workstation ensures efficient operations, accelerating workflows and multitasking. With 1 TB of SSD storage and advanced RAID support, users can relish quick data access and enhanced security for important files. The workstation is built with dual-channel DDR5 SDRAM for smooth operations and integrates a Realtek ALC623-CG audio solution for high definition audio output, providing a complete experience for both productivity and multimedia content. The Lenovo ThinkStation P3 Ultra Gen 2 is designed with an emphasis on adaptability and connectivity. Featuring multiple expansion slots, users can enhance performance with additional SSDs or WLAN options. The small form factor allows for easy placement without sacrificing power or performance. Additionally, this workstation stands compliant with various industry standards, including RoHS and TCO certification, ensuring a commitment to environmental sustainability.

Extended Specification

Graphics
On-board graphics card model
Intel Graphics
Discrete GPU manufacturer
NVIDIA
Discrete graphics card memory
4 GB GB
Discrete graphics card model
NVIDIA RTX A400
Discrete graphics card
Yes
On-board graphics card
Yes
Number of discrete graphics cards
1
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Graphics
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Thunderbolt 3 ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
2
DisplayPorts quantity
3
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Design
Chassis type
SFF
Product colour
Black
Cable lock slot
Yes
Cable lock slot type
Kensington
Performance
Product type
Workstation
Motherboard chipset
Intel W880
Audio chip
Realtek ALC623-CG
Audio system
High Definition Audio
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Operating system architecture
64-bit
Power
Power supply
230 W W
Power supply input voltage
100 - 240 V V
Power supply input frequency
50/60 Hz Hz
Weight & dimensions
Width
87 mm mm
Depth
223 mm mm
Height
202 mm mm
Weight
3.6 kg kg
Packaging content
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Keyboard connectivity
Wired
Processor
Processor family
Intel Core Ultra 7
Processor manufacturer
Intel
Processor model
265
Processor generation
Intel Core Ultra (Series 2)
Processor cores
20
Processor threads
20
Processor boost frequency
5.3 GHz GHz
Performance cores
8
Efficient cores
12
Performance-core Max Turbo Frequency
5.2 GHz GHz
Efficient-core Max Turbo Frequency
4.6 GHz GHz
Performance-core base frequency
2.4 GHz GHz
Efficient-core base frequency
1.8 GHz GHz
Processor cache
30 MB MB
Processor cache type
Smart Cache
Processor base power
65 W W
Maximum turbo power
182 W W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
33 TOPs TOPs
NPU performance up to
13 TOPs TOPs
GPU performance up to
8 TOPs TOPs
RAM
Installed Size
32 GB GB
Maximum internal memory
128 GB GB
Storage
Total storage capacity
1 TB TB
Optical drive type
No
Storage media
SSD
Total SSDs capacity
1 TB TB
Number of SSDs installed
1
SSD capacity
1 TB TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Memory
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz MHz
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Display
Display included
No
Lenovo ThinkStation P3 Ultra Gen 2 30J5

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
