Logitech Extend
Thumbnail 0

Logitech Extend

Manuf P/N: 952-000199
APAXON#: 10524455
EAN: 5099206130036
Logitech Extend
Video/audio extender
USB-C, 10Mb LAN
over CAT 5e/6
up to 100 m
Weight: 1.60 KG
  • Supports 4K maximum video resolution
  • Includes a variety of connection interfaces like HDMI and USB-C
  • Capable of transferring data over a distance of 100 m
  • Wall-mountable design for installation
  • Wall-mountable design for installation
Stock69
Price £659.99
Quantity
|

Product Summary

The Logitech Extend offers a reliable solution for extending your video and audio with ease. This external video/audio extender includes various connection options such as HDMI, USB 2.0, Ethernet, and micro-USB, allowing for versatile usage in a range of environments. With support for resolutions up to 4K and a maximum transfer distance of 100 m, it ensures high-quality performance in both home and professional settings. Designed with practicality in mind, the Extend features a wall-mountable design and comes with a mounting kit for installation. Its robust plastic housing provides durability, while the built-in encryption algorithm (SHA-256) ensures security for your data during transmission. Operating in a wide range of temperatures, from 0°C to 40°C, and humidity levels between 10% and 90%, this extender is built to perform reliably in various conditions.

Main Specifications

Product Description
Logitech Extend - video/audio extender - USB-C, 10Mb LAN
Device Type
Video/audio extender
Form Factor
External
Data Link Protocol
USB-C, 10Mb LAN
Transmission Medium
CAT 5e/6
Max Transfer Distance
100 m
Power
AC 100-240 V
System Requirements
Windows 10 / 11 or later, Apple macOS 13 or later
Dimensions (WxDxH)
14.3 cm x 14.3 cm x 3.45 cm
Manufacturer Warranty
2-year warranty

Associated Documents

TD SYNNEX Product Data Sheet - Logitech Extend(952-000199).pdf
TD SYNNEX Product Data Sheet - Logitech Extend(952-000199).pdf
High-resolution video support

The Extend supports a maximum video resolution of 4K, delivering sharp and detailed visuals.

Versatile connectivity options

Featuring HDMI, USB 2. 0, Ethernet, and micro-USB ports, this extender allows for flexible connections to various devices.

Durable and secure design

Constructed with a plastic housing, the extender is designed to withstand regular use while the SHA-256 encryption algorithm ensures the security of your data.

User-friendly installation

The included mounting kit enables easy wall-mountable installation, making it convenient to set up.

Wide operational range

Operating efficiently in temperatures from 0°C to 40°C and humidity levels between 10% and 90%, this extender is prepared for various conditions.

Extended Specification

Miscellaneous
Mounting Kit
Included
Compliant Standards
FSC

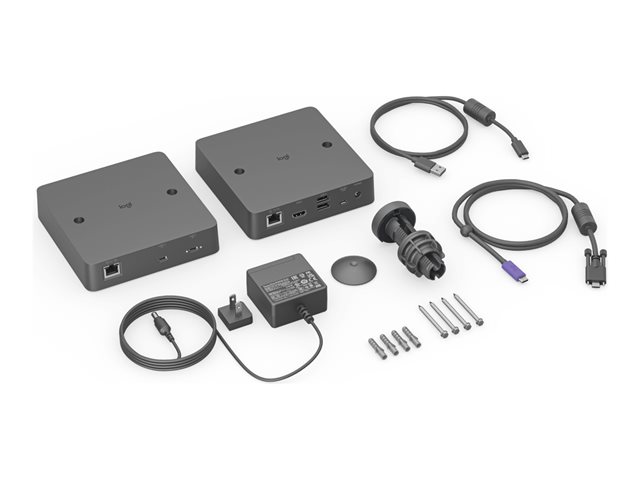

Included Accessories
Grommet adapter (25.4 mm), magnetic dock
Cables Included
1 x power adapter - 1.5 m 1 x USB-C 3.2 Gen 1 cable - 1.5 m 1 x micro-USB to USB-A cable - 1 m
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
General
Form Factor
External
Device Type
Video/audio extender
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Weight & Dimensions
Width
14.3 cm
Depth
14.3 cm
Height
3.45 cm
Dimensions (WxDxH) / Weight Details
Power adapter: 7.35 cm x 5.3 cm x 3.5 cm
Network
Max Transfer Distance
100 m
Connectivity Technology
Wired
Encryption Algorithm
SHA-256
Max Resolution
4K @ 60 Hz
Data Link Protocol
USB-C, 10Mb LAN
Features
4:4:4 chroma subsampling support, wall mountable, plastic housing, BYOD mode, DisplayPort Alternate mode
Power
Voltage Required
AC 100-240 V
Power Device
External power adapter
Connections & Expansion
Interfaces
1 x HDMI - 19 pin HDMI Type A female 2 x USB 2.0 - Type A female 1 x micro-USB 2 x Ethernet - RJ-45 1 x USB - Type C 1 x USB (power input) - Type C
Software / System Requirements
OS Required
Windows 10 / 11 or later, Apple macOS 13 or later
Logitech Extend
