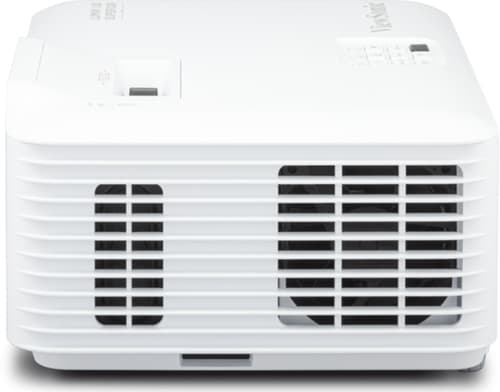

LSD401HD 0.65" 1080P Laser Phosphor sys
- 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
- Centralized LAN control for efficient management
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
Similar Products
Overview
Viewsonic LSD401HD, 4000 ANSI lumens, DLP, 1080p (1920x1080), 3000000:1, 762 - 7620 mm (30 - 300"), 0.75 - 9.76 m
Specifications
Projector
- Projection technology
- DLP
- Projector native resolution
- 1080p (1920x1080)
- Screen size compatibility
- 762 - 7620 mm (30 - 300") mm
- Keystone correction, horizontal
- +-30° °
- Matrix type
- DMD
- Horizontal synchronization (min)
- 15 kHz kHz
- Horizontal synchronization (max)
- 135 kHz kHz
- Contrast ratio (typical)
- 3000000:1
- Projection distance
- 0.75 - 9.76 m m
- Projector brightness
- 4000 ANSI lumens ANSI lumens
- Smart projector
- No
- Number of colours
- 1.07 billion colours
- Keystone correction, vertical
- +-30° °
- Vertical synchronization (min)
- 0.024 kHz kHz
- Matrix size
- 1.65 cm (0.65") cm
- Vertical synchronization (max)
- 0.12 kHz kHz
- Screen size (max)
- 7.62 m (300") m
Ports & interfaces
- Audio (L/R) in
- 0
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 2
- Composite video in
- 0
- Component video (YPbPr/YCbCr) in
- 0
- HDMI version
- 2.0
- DVI port
- No
- Serial interface type
- RS-232
- HDMI connector type
- Full-size
- USB 2.0 Type-A ports quantity
- 1
- PC Audio out
- Yes
Network
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi
- No
- Smart TV
- No
- Ethernet LAN
- Yes
Features
- Noise level
- 32 dB dB
- On Screen Display (OSD)
- Yes
- HDCP
- Yes
- HDCP version
- 2.2
- Noise level (economic mode)
- 27 dB dB
- On Screen Display (OSD) languages
- Multi
Design
- Cable lock slot
- Yes
- Product type
- Standard throw projector
- Product colour
- White
Display
- Built-in display
- No
Power
- Power source
- AC
- AC input voltage
- 100 - 240 V V
- Power consumption (standby)
- 0.5 W W
- Power consumption (typical)
- 143 W W
- AC adapter output voltage
- 19.5 V V
Logistics data
- Pallet gross width
- 122 cm cm
- Quantity per pack
- 1 pc(s) pc(s)
- Pallet gross height
- 181 cm cm
- Products per master (outer) case
- 1 pc(s) pc(s)
- Harmonized System (HS) code
- 8528620000
- Pallet gross length
- 102 cm cm
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h h
- Service life of light source (economic mode)
- 30000 h h
- Light source brightness
- 4400 lm lm
Lens system
- Focus
- Manual
- Focal length range
- 16.9 - 21.61 mm mm
- Aperture range (F-F)
- 2.43 - 2.78
- Zoom capability
- Yes
- Throw ratio
- 1.13 - 1.47
- Digital zoom
- 2x x
- Vertical lens shift range
- 0 - 60% %
- Offset
- 132% %
- Optical zoom
- 1.3x x
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 15 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
Weight & dimensions
- Weight
- 3.1 kg kg
- Depth
- 216 mm mm
- Package depth
- 155 mm mm
- Width
- 286 mm mm
- Height
- 129 mm mm
- Package width
- 400 mm mm
- Package height
- 280 mm mm
- Package weight
- 4.6 kg kg
Packaging content
- Cables included
- AC
- Remote control included
- Yes
- Warranty card
- Yes
Video
- Full HD
- Yes
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 3840 x 2160
Storage
- Card reader integrated
- No
Technical details
- Image lag time
- 16.7 ms ms
