MSI PRODUCTS BAREBONE CASE
- Up to 12th Gen Intel® Core™ i7 Processors
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- Experience 75% lower latency with WiFi 6E technology(optional)
- FW TPM design secures your confidential data with encryption keys
- Supports standard VESA-mount
Similar Products
Overview

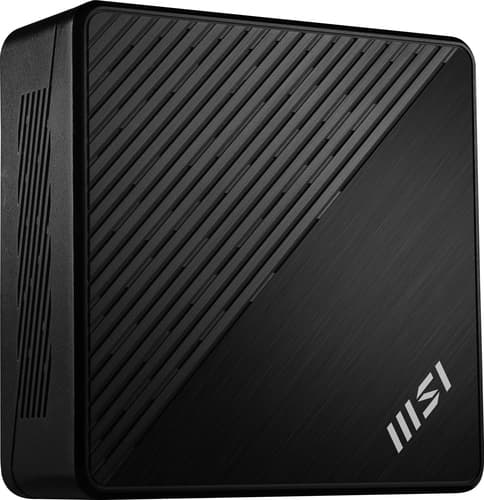

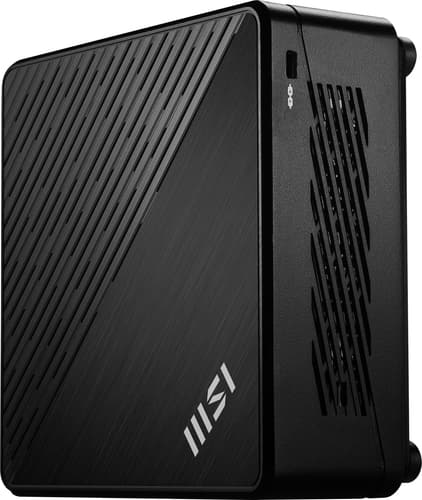

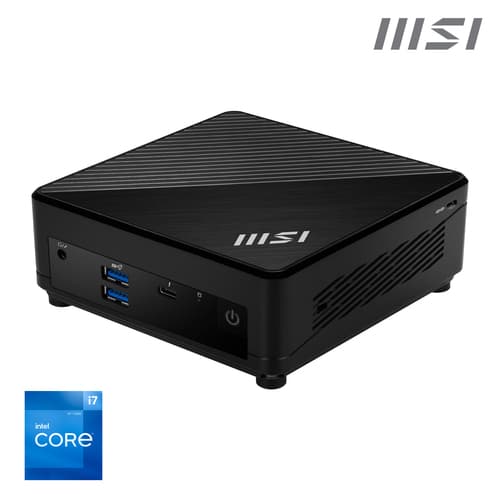

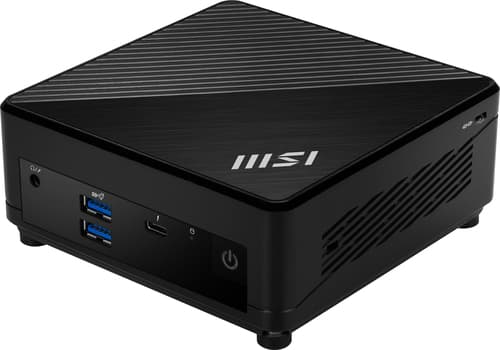

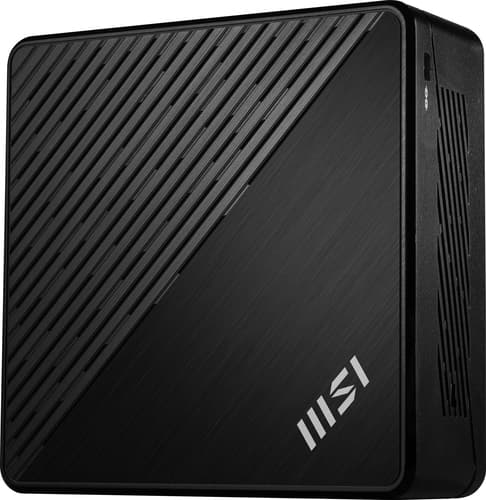

MSI Cubi 5 12M Intel Core i7 1255U Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPort/Dual LAN/WiFi 6E/BT 5.3/VESA, 0.66L sized PC, Mini PC barebone, Intel SoC, M.2, Serial ATA III, Wi-Fi 6E (802.11ax), 65 W
Specifications
Processor
- Built-in processor
- Yes
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i7
- Processor generation
- 12th gen Intel® Core™ i7
- Processor model
- i7-1255U
- Processor cores
- 10
- Processor threads
- 12
- Processor boost frequency
- 4.7 GHz GHz
- Performance cores
- 2
- Efficient cores
- 8
- Processor lithography
- 14 nm nm
- Performance-core boost frequency
- 4.7 GHz GHz
- Efficient-core boost frequency
- 3.5 GHz GHz
- Processor cache
- 12 MB MB
- Thermal Design Power (TDP)
- 15 W W
Memory
- Memory slots type
- SO-DIMM
- Number of memory slots
- 2
- Maximum internal memory
- 64 GB GB
- Supported memory clock speeds
- 3200 MHz MHz
- Memory channels
- Dual-channel

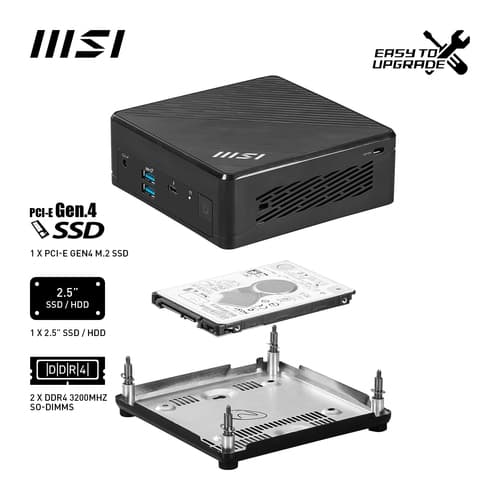

Storage
- Supported storage drive types
- HDD & SSD
- Storage drive sizes supported
- 2.5,M.2 "
- SSD form factor
- 2.5"
- Storage drive interface
- M.2, Serial ATA III
- NVMe
- Yes
- Number of storage drives supported
- 2
Graphics
- On-board graphics card
- Yes
- Graphics card family
- Intel
- On-board graphics card model
- Intel Iris Xe Graphics
- Number of displays supported
- 3
Audio
- Built-in speaker(s)
- No

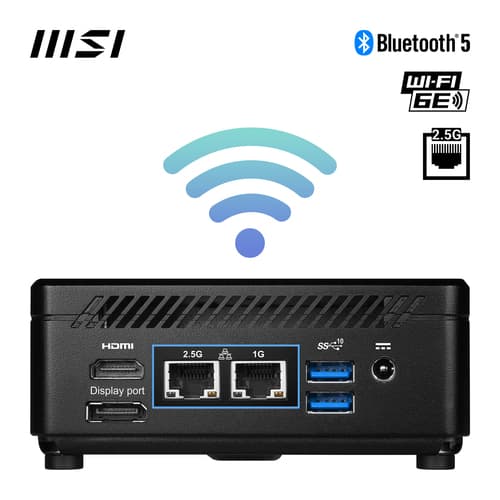

Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- WLAN controller model
- Intel Wi-Fi 6E AX211
- LAN controller
- Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
- Bluetooth
- Yes
- Bluetooth version
- 5.3

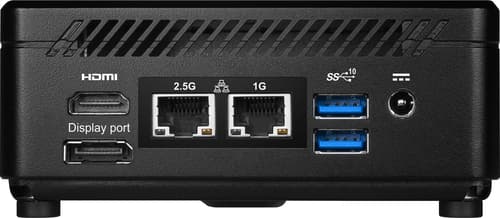

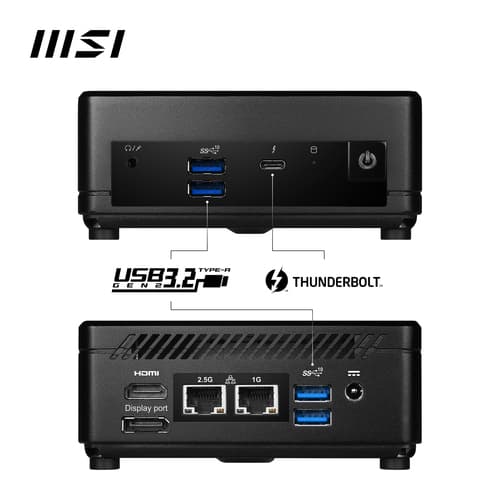

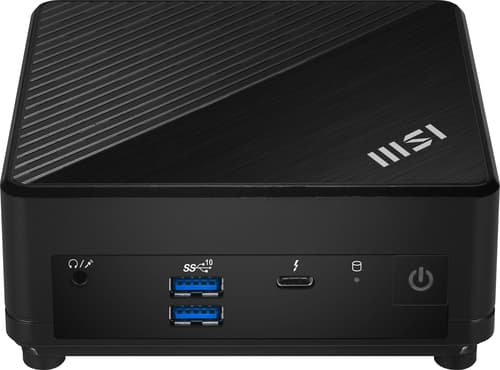

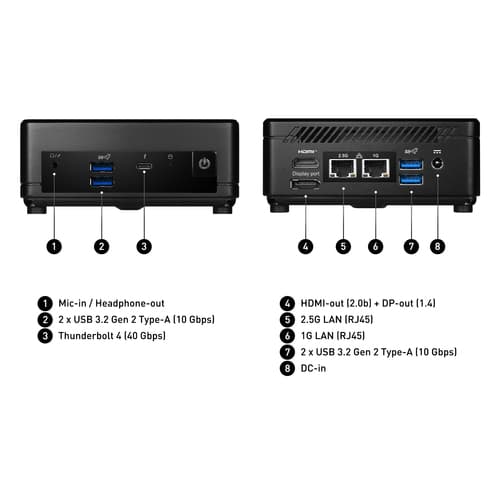

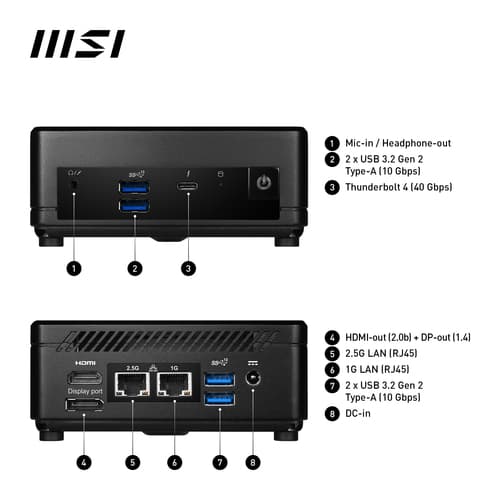

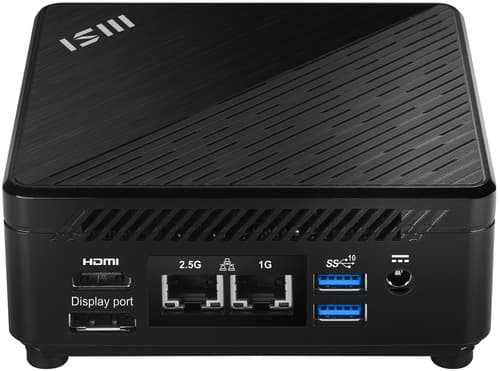

Ports & interfaces
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- HDMI ports quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Mini HDMI ports quantity
- 0
- HDMI version
- 2.0b
- DVI port
- No
- DVI-D ports quantity
- 0
- DisplayPorts quantity
- 1
- Mini DisplayPorts quantity
- 0
- DisplayPort version
- 1.4
- Combo headphone/mic port
- Yes
- Thunderbolt 4 ports quantity
- 1
- DC-in jack
- Yes
Expansion slots
- Number of M.2 (M) slots
- 1
Design
- Chassis type
- 0.66L sized PC
- Product colour
- Black
- Cooling type
- Active
- Product type
- Mini PC barebone
- On/off switch
- Yes
- LED indicators
- Yes
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm mm
Performance
- Motherboard form factor
- NUC
- Motherboard chipset
- Intel SoC
- Number of processors supported
- 1
Certificates
- Certification
- FCC, CB/CE, UL & CUL, VCCI, RCM
Software
- Operating system installed
- No
Power
- Power supply type
- External AC adapter
- Power supply
- 65 W W
- Number of power supply units
- 1
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 85% %
- Storage relative humidity (H-H)
- 0 - 90% %

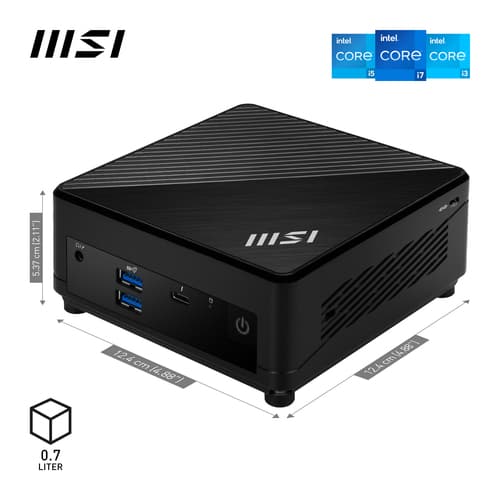

Weight & dimensions
- Width
- 124 mm mm
- Depth
- 124 mm mm
- Height
- 53.7 mm mm
- Weight
- 590 g g
- Package width
- 221 mm mm
- Package depth
- 506 mm mm
- Package height
- 469 mm mm
- Package weight
- 1.33 kg kg
Packaging content
- Power cord included
- Yes
- AC adapter included
- Yes
- Quick start guide
- Yes
- Drivers included
- Yes
- Display included
- No
- Mouse included
- No
- Keyboard included
- No
Other features
- Country of origin
- China
- Warranty period
- 2 year(s) year(s)
