Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

See Alternatives Email Sales 0161 464 9941

Non Cancellable/Non Returnable (NCNR) HP TB4 ULTRA 280W G6 DOCK SWISS

Manuf P/N: AW5M5UT##UUZ

*Non Cancellable/Non Returnable (NCNR)* HP TB4 ULTRA 280W G6 DOCK SWISS

Find true momentum with uninterrupted connections to your devices. HP Quick Connect[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 280W[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology[2] and all the ports you need to connect your setup.
Cloud manageability with Poly Lens[4] unlocks hands-off manageability from anywhere. Administer automatic firmware updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.
Prevent potential threats with HP Wolf Security[5], interlacing HP Sure Start[6] and Zero Trust Framework to provide complete end-to-end security. Work and rest easy knowing everything from the dock to the cloud is protected.

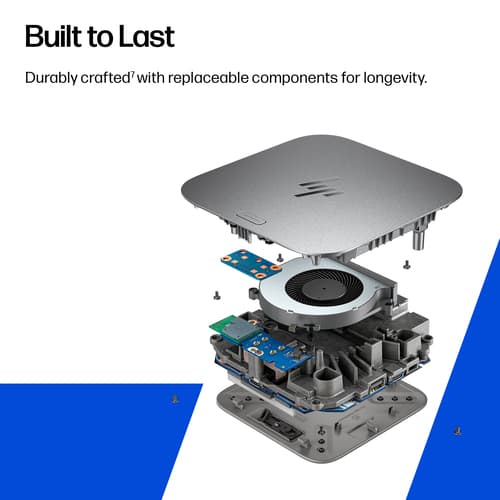

Thoughtfully designed with longevity in mind. Durably crafted[7] with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Consciously wrapped in plastic-free packaging[8].

StockOut of Stock

ConditionNew

Quantity

Notify me when available

Sales & Technical

Phone: 0161 464 9941

Email: sales@apaxon.co.uk

Manufacturer Warranty

Yes

Apaxon® is an authorised reseller of HEWLETT PACKARD INCORPORATED. Warranty claims, repairs, replacements, and credits are fulfilled strictly in accordance with the manufacturer's terms and conditions.

Returns Policy

Business & Consumer Purchases

Orders placed for business use, resale, or onward supply are treated as Business-to-Business (B2B) transactions. B2B sales do not carry an automatic right of cancellation.

Nothing in this policy affects statutory consumer rights under UK law.

Consumer Cancellation (B2C Only)

Consumers may cancel within 14 days of delivery under the Consumer Contracts Regulations 2013.
Cancellation must be confirmed in writing within 14 days of delivery.
Goods must be returned within 14 days of cancellation.
Items must be unused beyond reasonable inspection and in resaleable condition.
Return shipping costs are the customer's responsibility.
Prepaid return labels are not provided for change-of-mind returns.
Refunds are processed after inspection and issued to the original payment method.

Faults & Delivery Issues

Transit damage or shortages must be reported within 48 hours of delivery.
Visible defects must be reported within 7 days of delivery.
Hidden faults must be reported within 7 days of discovery.
Returns require prior authorisation and a valid RMA reference.
Failure to report within these timeframes may affect eligibility for return or claim.

Business Returns (B2B)

Business customers do not have an automatic right to return non-faulty goods.

Supply chain authorisation
Restocking fees (typically 15–25%)
Inspection approval
Non-refundable outbound carriage

Return shipping is the responsibility of the buyer unless agreed otherwise.

Non-Returnable Items

Software, licences, activation keys, and digital products
Special-order or non-standard procurement items
Opened consumables
Items not in resaleable condition

Overview

HP Thunderbolt 4 Ultra 280W G6 Dock, Wired, Thunderbolt 4, 280 W, 10,100,1000,2500 Mbit/s, Grey, 8K Ultra HD

Specifications

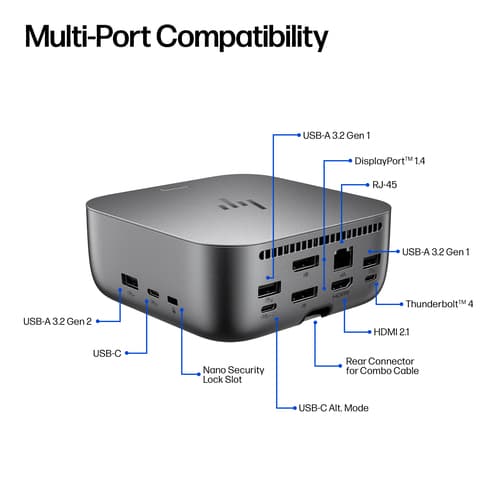

Ports & interfaces

Connectivity technology: Wired
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
USB Power Delivery up to: 280 W W
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Thunderbolt 4 ports quantity: 1
Host interface: Thunderbolt 4
USB 2.0 ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Microphone in: No
Headphone outputs: 0
USB Power Delivery (USB PD): Yes

Operational conditions

Operating temperature (T-T): 0 - 35 °C °C
Operating relative humidity (H-H): 10 - 90% %
Storage relative humidity (H-H): 5 - 95% %
Operating altitude: -15 - 3048 m m
Storage temperature (T-T): -20 - 60 °C °C
Non-operating altitude: -15 - 12192 m m

Sustainability

Sustainable technologies and materials: 35% post-consumer recycled plastic

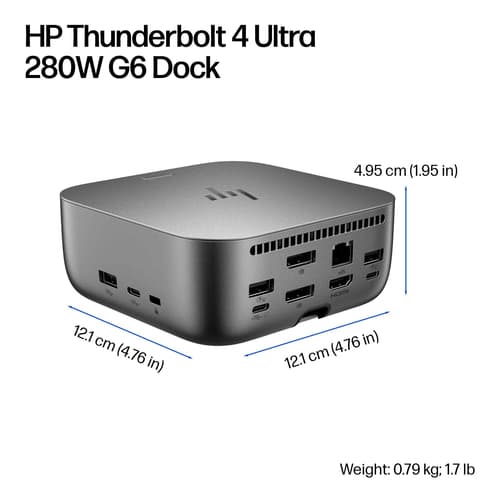

Weight & dimensions

Width: 121 mm mm
Depth: 121 mm mm
Height: 49.5 mm mm
Weight: 790 g g

Performance

Cable lock slot: Yes
Cable lock slot type: Nano
LED indicators: Power
Compatibility: Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
HP segment: Business
Product colour: Grey
Maximum refresh rate: 360 Hz Hz
Card reader integrated: No
HD type: 8K Ultra HD
Country of origin: China, Thailand

Software

Windows operating systems supported: Windows 10, Windows 11
Other operating systems supported: ChromeOS
Linux operating systems supported: Yes
Mac operating systems supported: MacOS

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s Mbit/s

Power

Power supply: 330 W W

Packaging content

Warranty card: Yes
Cables included: AC

Carbon footprint

Total carbon emissions, w/o use phase (kg of CO2e): 2
Total carbon footprint (kg of CO2e): 10
Carbon emissions, manufacturing (kg of CO2e): 7
Carbon emissions, logistics (kg of CO2e): 0.3
Carbon emissions, end-of-life (kg of CO2e): 0.1

Technical details

General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Box contents: HP Thunderbolt 4 Ultra 280W G6 Dock; 330 W power adapter; Thunderbolt™ 4 and 4.5 mm power barrel combination cable (1 m); Power cord; Product notice; Warranty card

Other features

Bundled software: Poly Lens with automatic firmware updates
Compatible operating systems: Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
Special features: Intel vPro support
Pallet dimensions (W x D x H) (imperial): 1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51") mm
Pallet dimensions (W x D x H): 1200 x 1000 x 140 mm mm
UNSPSC-code: 43211602

Packaging data

Package width: 396 mm mm
Package depth: 171 mm mm
Package height: 95 mm mm
Package weight: 1.14 kg kg

Brand-specific features

HP GTIN (EAN/UPC) with options: (ABB) 198701752547; (ABU) 198701752615
HP GTIN (EAN/UPC): 198701752547, 198701752615

Logistics data

Master (outer) cases per pallet layer: 28 pc(s) pc(s)

*Non Cancellable/Non Returnable (NCNR)* HP TB4 ULTRA 280W G6 DOCK SWISS — image 1

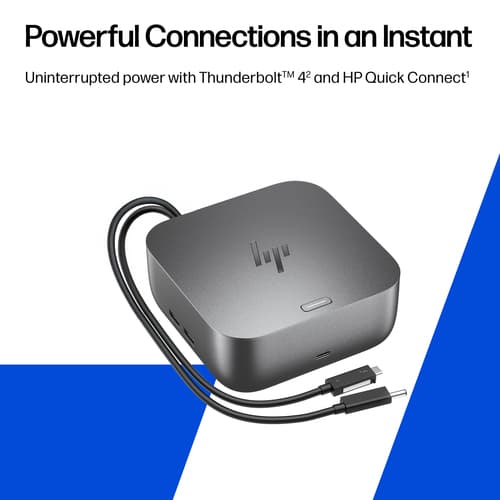

Powerful connections in an instant

Find true momentum with uninterrupted connections to your devices. HP Quick Connect^[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 280W^[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology^[2] and all the ports you need to connect your setup.

Hands-off manageability

Cloud manageability with Poly Lens^[4] unlocks hands-off manageability from anywhere. Administer automatic firmware updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.

^[1] HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth required. Not available on TAA versions. Contact your local sales representative to learn more.
^[2] For full data and video capability, the PC must support either: DisplayPort™ alt mode, Thunderbolt™ 3 alt mode, or USB4 through its USB-C port. Charging and port replication are supported on notebooks that have implemented the USB-C Power Delivery specifications. HP Quick Connect, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
^[3] Up to 280W power delivery through the Thunderbolt™ 4 cable available on PC's that support PD 3.1.
^[4] Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
^[5] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
^[6] Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing firmware, Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports firmware integrity verification and recovery during dock start-up and disconnect. It does not include real-time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
^[7] HP Total Test Process testing is not a guarantee of future performance under these test conditions. Damage under the HP Total Test Process test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
^[8] HP packaging for this product is reported by suppliers as plastic free. Packaging refers to the primary product box and all materials inside, excluding any additional boxes provided by third parties, bulk packaging, and packaging for accessories and spare parts.
Technical specification disclaimers:
Requires DisplayPort™ 1.4 support with Display Stream Compression.
For full data and video capability, the PC must support either: DisplayPort™ alt mode, Thunderbolt™ 3 alt mode, or USB4 through its USB Type-C port. Charging and port replication are supported on notebooks that have implemented the USB Type-C Power Delivery specifications. HP Quick Connect, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing firmware, Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports firmware integrity verification and recovery during dock start-up and disconnect. It does not include real-time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
Operating systems supported: Windows 10 22H2 and up, Win 10 IoT Enterprise LTSC 2021, Windows 11 23H2 and up, ChromeOS M133 and up, Ubuntu Linux 22.04 LTS with 5.15 kernel, ThinPro OS 8.0 and MacOS Sonoma 14. Not all features work with all operating systems, ask your sales representative about compatibility with your PC. Linux, ChromeOS, MacOS, and ThinPro OS testing currently underway and expected to be completed after launch.
The dock power button may support non-HP notebooks that have implemented USB Power Delivery specification to support Extended Alert messages.
Please refer to the User Guide for LED light behaviors. The User Guide can be found on https://support.hp.com/ .
Your computer might support Wake on LAN from the Off, Sleep or Hibernate States, or only when the computer is On or in Sleep.
Your computer might support MAC address pass-through on the On, Off, Sleep or Hibernate States, or only when the computer is On or in Sleep. Thunderbolt™ host systems require Thunderbolt™ software (minimum SW17.x). Ethernet drivers need to be installed separately on non-HP Windows systems for headset auto switching functionality. Drivers available on HP website. For Apple PCs, HP does not provide ethernet and audio drivers. Firmware updates on Window-based host systems only. Certain features are not functional on non-HP supported nor non-HP notebooks:
• Power button to turn on or wake the system.
• Wake on LAN from warm and cold dock.
• Wake on LAN from S4/S5.
• MAC Address pass-through S0, S3, S4, S5 when connecting an on or off notebook to the dock.
Feature(s) not available on TAA docks.
Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth required. Not available on TAA versions. Contact your local sales representative to learn more.
Video resolution and support is dependent on the maximum capability of the notebook.
Compatible with the following HP locks: 63B28AA - HP Nano Combination Cable Lock, 63B31AA - HP Essential Nano Combination Cable Lock.
Up to 280 W power delivery through the Thunderbolt 4 cable available on PC's that support PD 3.1.
Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
The European Union Data Act is a compliance regulation concerning connected devices placed on the European Union market. Customers who
own HP devices sold in this market can request the data from their devices. For more information, see https://support.hp.com/us-en/document/ish_12884929-12885022-16 or visit https://compliance-euda.hp.com/.
