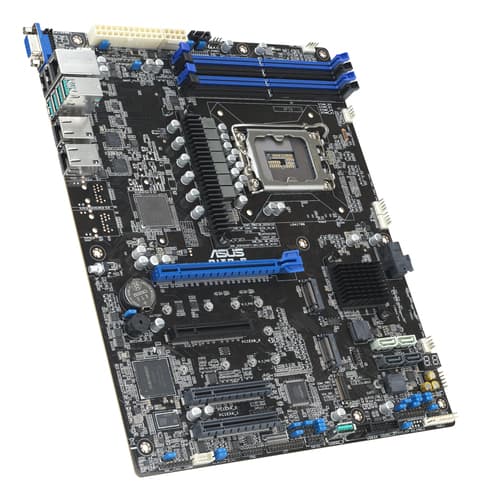

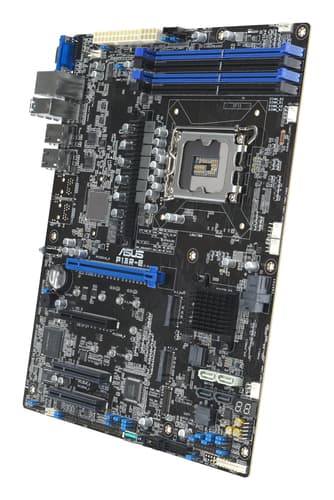

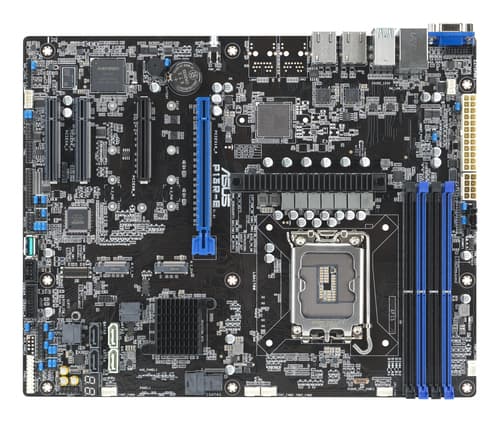

P13R-E
- Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP
- Flexible expandability with eight SATA ports, two PCIe 5.0 slots and two PCIe 4.0 slots
- Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
- Four DDR5 ECC UDIMM slots for up to 128 Gbps and two M.2 22110 slots for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- ATX motherboard featuring high computing capability -- an ideal platform for SMB general purpose, compute and storage servers
Similar Products
Overview
ASUS P13R-E, Intel, LGA 1700, Intel® Pentium®, Intel Xeon 6300, Intel Xeon E, LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Processor socket
- LGA 1700
- Processor manufacturer
- Intel
- Compatible processor series
- Intel® Pentium®, Intel Xeon 6300, Intel Xeon E
- Supported processor sockets
- LGA 1700
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 8
- Front panel connector
- Yes
- Chassis intrusion connector
- Yes
- USB 2.0 connectors
- 1
- Number of chassis fan connectors
- 6
- Number of COM connectors
- 1
- ATX Power connector (24-pin)
- Yes
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- Number of EPS power connectors (8-pin)
- 1
- 12V power connector
- Yes
Memory
- Number of memory slots
- 4
- Memory channels
- Dual-channel
- Supported memory types
- DDR5-SDRAM
- Memory slots type
- DIMM
- Supported memory clock speeds
- 3600,4000,4400 MHz MHz
- Maximum internal memory
- 128 GB GB
- ECC сompatibility
- ECC
- Supported memory clock speed (max)
- 4400 MHz MHz
- Maximum internal memory per slot
- 32 GB GB
Storage controllers
- Supported storage drive interfaces
- PCI Express 4.0, SATA III
- Number of HDDs supported
- 8
- Supported storage drive types
- HDD & SSD
- Number of storage drives supported
- 10
Graphics
- Parallel processing technology support
- Not supported
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- HDMI ports quantity
- 0
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- DVI-D ports quantity
- 0
Expansion slots
- 1st M.2 largest key size
- 22110
- PCI Express x8 (Gen 5.x) slots
- 1
- 1st M.2 highest PCI Express generation
- 4.0
- PCI Express x4 (Gen 4.x) slots
- 2
- 2nd M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 2
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 10 - 50 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
Network
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- No
- Ethernet LAN
- Yes
Features
- Motherboard chipset family
- Intel
- Component for
- Server
- Product colour
- Black
- PC health monitoring
- CPU, Fan, Temperature
- Motherboard form factor
- ATX
- Motherboard chipset
- Intel C266
- Cooling type
- Passive
- Power source type
- ATX
Packaging data
- Package width
- 341 mm mm
- Package depth
- 281 mm mm
- Package height
- 78 mm mm
- Package weight
- 1.5 kg kg
Weight & dimensions
- Height
- 68 mm mm
- Depth
- 244 mm mm
- Width
- 305 mm mm
Other features
- Weight
- 800 g g
