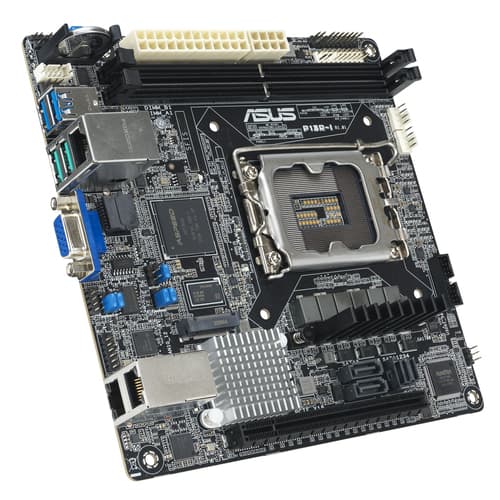

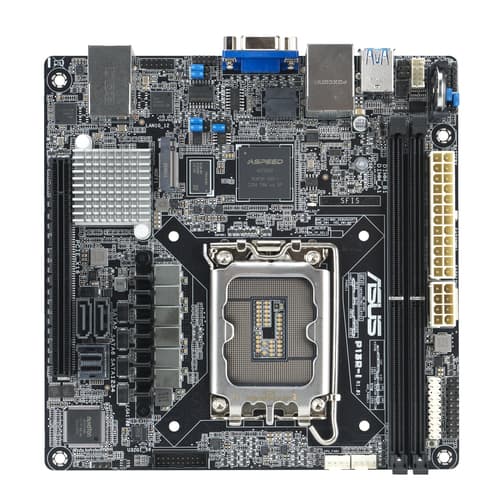

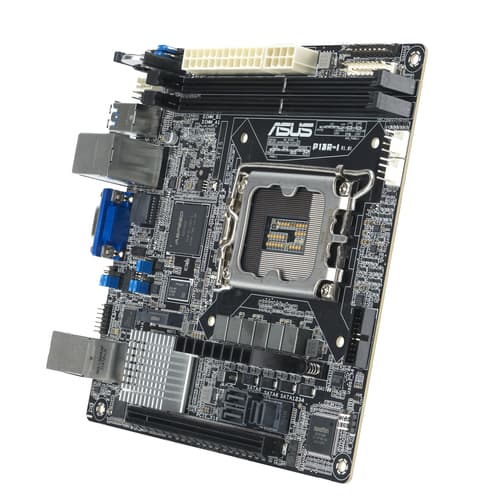

P13R-I - 3YR CHANNEL
- Flexible expandability with six native SATA ports and one PCIe 5.0 x16 slot
- Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
- One M.2 slot for faster OS booting, and two DDR5 ECC UDIMM slots up to 64 Gbps
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Mini-ITX board in a compact footprint, making it a popular choice for SMB general purpose, mail and storage applications
- Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP
Similar Products
Overview
ASUS P13R-I, Intel, LGA 1700, Intel® Pentium®, Intel® Xeon®, Intel Xeon E, LGA 1700, DDR5-SDRAM, 64 GB
Specifications
Graphics
- Graphics card
- AST2600
- On-board graphics card memory
- 64 MB MB
- Parallel processing technology support
- Not supported
Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 6
- Number of chassis fan connectors
- 2
- USB 2.0 connectors
- 0
- TPM connector
- Yes
- Front panel connector
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 0
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Chassis intrusion connector
- Yes
- Number of COM connectors
- 1
Rear panel I/O ports
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 3
- HDMI ports quantity
- 0
- DVI-D ports quantity
- 0
Network
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- No
- Ethernet LAN
- Yes
Features
- Component for
- Server
- Motherboard form factor
- mini ITX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel C262
- Product colour
- Black
- Cooling type
- Passive
Packaging data
- Package height
- 78 mm mm
- Package weight
- 1.2 kg kg
- Package width
- 341 mm mm
- Package depth
- 281 mm mm
Processor
- Processor manufacturer
- Intel
- Supported processor sockets
- LGA 1700
- Compatible processor series
- Intel® Pentium®, Intel® Xeon®, Intel Xeon E
- Processor socket
- LGA 1700
Memory
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Supported memory clock speeds
- 3600,4000,4400,4800 MHz MHz
- ECC сompatibility
- ECC
- Supported memory clock speed (max)
- 4800 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Maximum internal memory
- 64 GB GB
- Memory channels
- Dual-channel
Storage controllers
- Number of storage drives supported
- 7
- Supported storage drive interfaces
- PCI Express 4.0, SATA III
- Number of HDDs supported
- 6
- Supported storage drive types
- HDD & SSD
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 1
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 10 - 50 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
Weight & dimensions
- Width
- 170 mm mm
- Depth
- 170 mm mm
