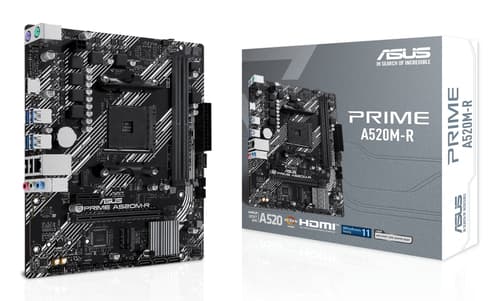

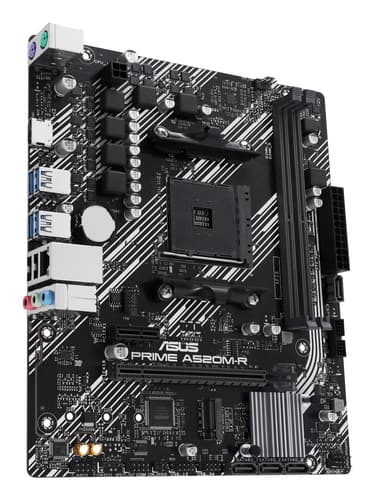

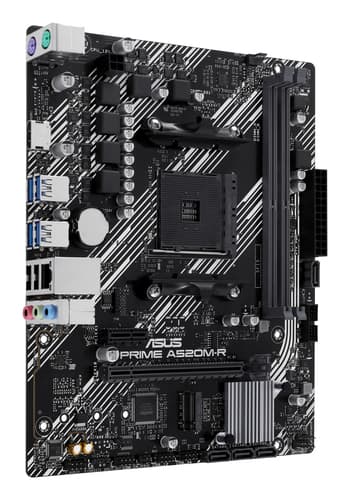

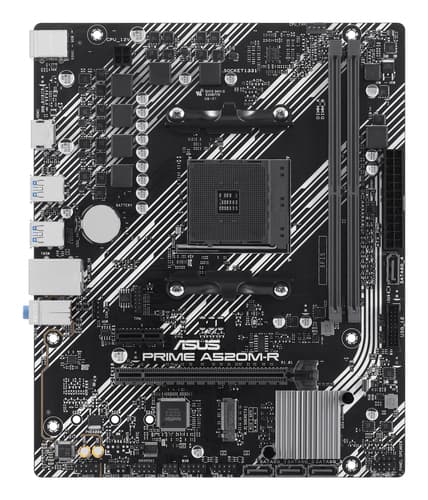

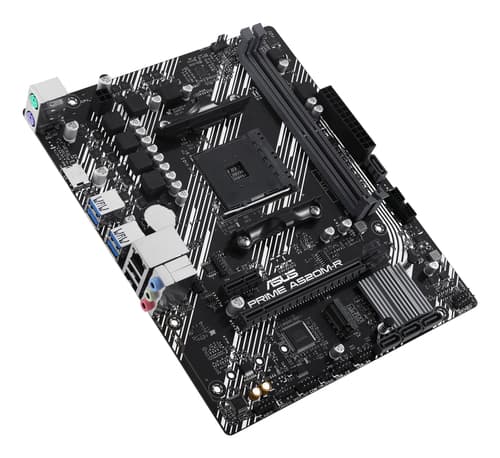

PRIME A520M-R
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- 5X Protection III: Multiple hardware safeguards for all-around system protection
- AMD AM4 Socket: Ready for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- Ultrafast Connectivity: M.2 support, 1Gb Ethernet, rear and front USB 5Gbps support
Similar Products
Overview
ASUS PRIME A520M-R, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR5-SDRAM, 64 GB
Specifications
Internal I/O
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 1
- Peripheral (Molex) power connectors (4-pin)
- 1
- Number of COM connectors
- 1
- 12V power connector
- Yes
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported processor sockets
- Socket AM4
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Maximum internal memory
- 64 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4666,4866,5100 MHz MHz
- Supported memory clock speed (max)
- 5100 MHz MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 5
- RAID support
- Yes
- RAID levels
- 0, 1, 10
Graphics
- Parallel processing technology support
- Not supported
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- PS/2 ports quantity
- 2
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- AMD
- Motherboard chipset
- AMD A520
- Audio output channels
- 7.1 channels channels
- Product colour
- Black
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- Number of M.2 (M) slots
- 1
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit Mbit
Packaging data
- Package width
- 270 mm mm
- Package depth
- 263 mm mm
- Package height
- 51.5 mm mm
- Package weight
- 880 g g
Weight & dimensions
- Width
- 236 mm mm
- Depth
- 193 mm mm

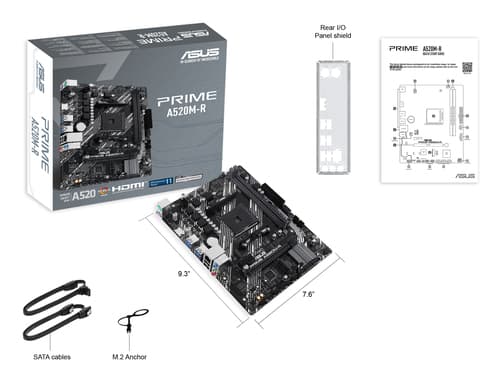

Packaging content
- Cables included
- SATA
