ASUS PRIME GeForce RTX 5060 Ti 16GB

Manuf P/N: 90YV0MH2-M0NA00
APAXON#: 11765615
EAN: 4711387994054

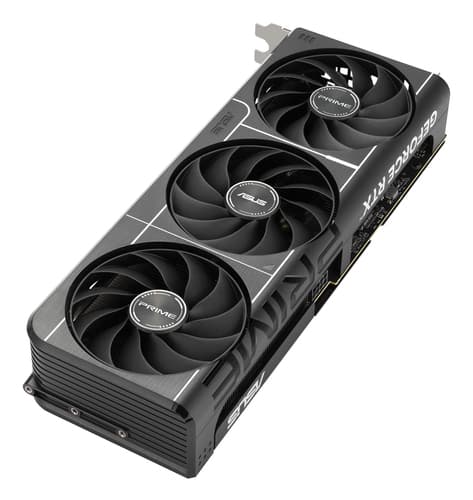

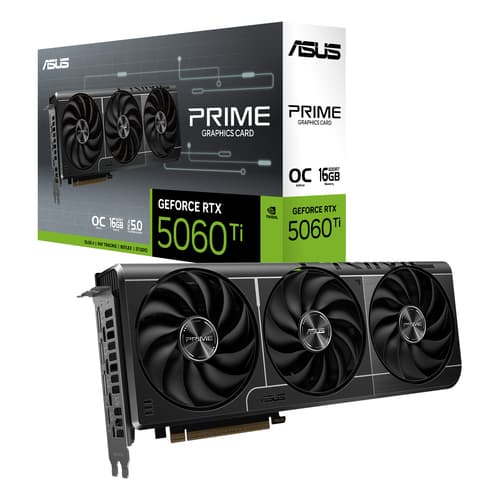

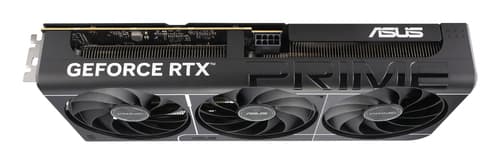

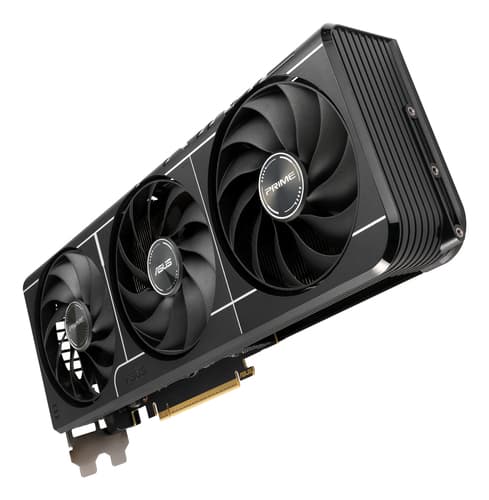

ASUS PRIME GeForce RTX 5060 Ti 16GB
OC Edition
graphics card
GeForce RTX 5060 Ti
16 GB GDDR7
PCI Express 5.0

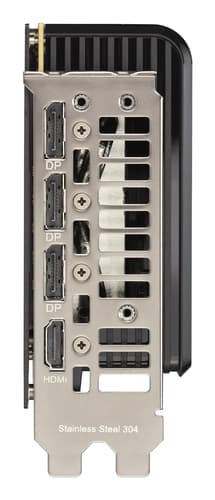

3 x DisplayPort, HDMI
Weight: 1.54 KG
  • 16 GB GDDR7 SDRAM for performance
  • Supports up to 7680 x 4320 external resolution

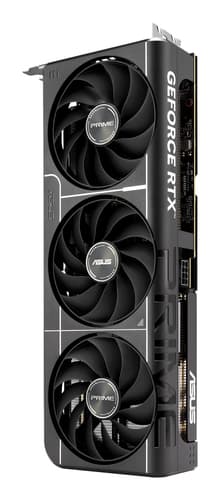

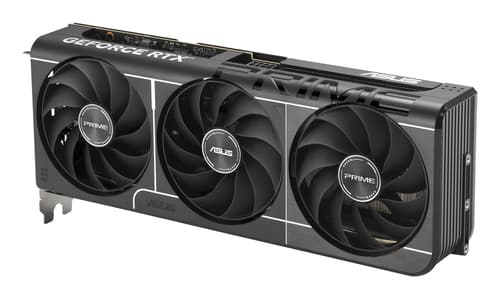

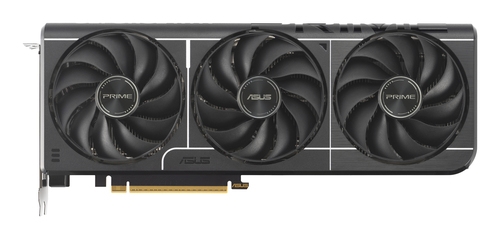

  • Triple fan design for cooling
  • NVIDIA G-Sync ready for gameplay
  • Dual BIOS for operation
Stock49
Price £456.02
Quantity
|

Product Summary

The ASUS PRIME GeForce RTX 5060 Ti graphics card offers an immersive gaming and content creation experience, powered by NVIDIA's technology. With 16 GB of GDDR7 SDRAM memory and a memory speed of 28 Gbps, this graphics card ensures smooth performance for high-resolution gaming and multitasking. It supports a maximum external resolution of 7680 x 4320 and can connect up to 4 monitors, making it suitable for gamers and professionals. Equipped with a 2.5-slot fan cooler and a triple fan design, the efficient cooling system keeps the card running at optimal temperatures even during intense workloads. The ASUS PRIME GeForce RTX 5060 Ti is compatible with standards, including HDCP 2.3 and DisplayPort 2.1b, ensuring seamless connectivity to a variety of displays. Features such as NVIDIA G-Sync readiness, dual BIOS, and NVIDIA Reflex 2 technology provide a competitive edge in gaming. The card's innovative features, such as 0dB technology for silent operation and axial-tech fan design, contribute to a quieter experience. With NVIDIA DLSS 4 and support for OpenGL 4.6, this graphics card meets the demands of modern applications while enhancing image quality and performance.

Extended Specification

Processor
Maximum resolution
7680 x 4320 pixels pixels
Processor boost clock speed
2617 MHz MHz
Processor frequency (OC mode)
2647 MHz MHz
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5060 Ti
Maximum resolution
7680 x 4320 pixels
CUDA
Yes
Parallel processing technology support
Not supported
CUDA cores
4608
Processor boost clock speed
2617 MHz
Processor frequency (OC mode)
2647 MHz
Stream processors
4
Maximum displays per videocard
4
Memory
Discrete graphics card memory
16 GB GB
Memory bus
128 bit bit
Data transfer rate
28 Gbit/s Gbit/s
Size
16 GB
Graphics card memory type
GDDR7
Memory bus
128 bit
Data transfer rate
28 Gbit/s
Performance
NPU performance up to
772 TOPs TOPs
OpenGL version
4.6
Dual Link DVI
No
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
NVIDIA G-SYNC
Yes
NPU performance up to
772 TOPs
Design
Number of fans
3 fan(s) fan(s)
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Number of slots
2.5
SFF ready
Yes
Product colour
Multicolour
Power
Minimum system power supply
550 W W
Minimum system power supply
550 W
Supplementary power connectors
1x 8-pin
Weight & dimensions
Weight
898 g g
Length
304 mm mm
Depth
50 mm mm
Height
120 mm mm
Weight
898 g
Length
304 mm
Depth
50 mm
Height
120 mm
Packaging data
Package width
405 mm mm
Package depth
233 mm mm
Package height
88.5 mm mm
Package weight
1.49 kg kg
Package width
405 mm
Package depth
233 mm
Package height
88.5 mm
Package weight
1.49 kg
Package type
Box
Ports & interfaces
Interface type
PCI Express 5.0
HDMI ports quantity
1
DVI-D ports quantity
0
DVI-I ports quantity
0
DisplayPorts quantity
3
Thunderbolt 3 ports quantity
0
Mini HDMI ports quantity
0
HDMI version
2.1b
Mini DisplayPorts quantity
0
DisplayPort version
2.1b
System requirements
Windows operating systems supported
Yes
General
Max Monitors Supported
4
Device Type
Graphics card
CUDA Cores
4608
Interfaces Details
3 x DisplayPort, HDMI
Max Resolution
7680 x 4320
API Supported
OpenGL 4.6
Bus Type
PCI Express 5.0
Boost Clock
2617 MHz
Graphics Engine
NVIDIA GeForce RTX 5060 Ti
Features

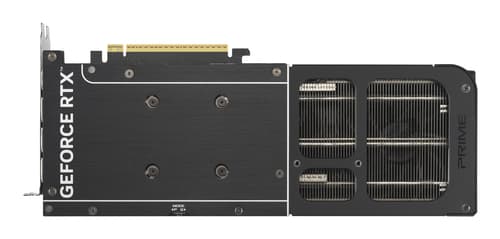

NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, vented backplate, Dual ball Bearing Fans, Dual Bios, NVIDIA Ansel, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, stainless steel mounting bracket, protection plate, AUTO-EXTREME technology, Triple Fan Design, HDCP
Boost Clock (OC)
2647 MHz
