This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

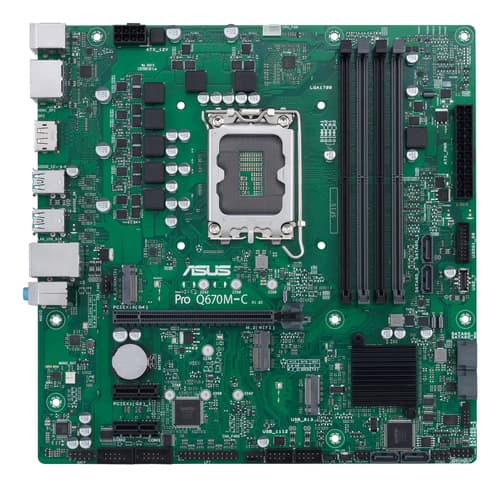

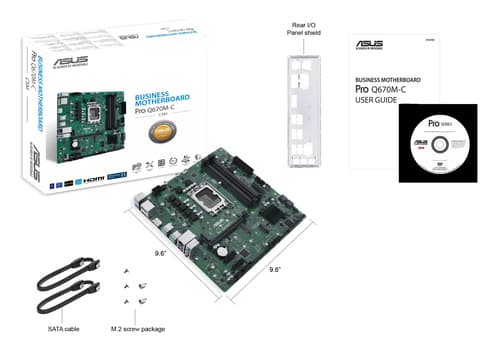

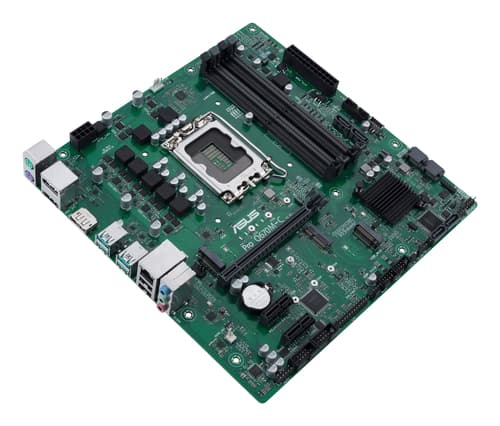

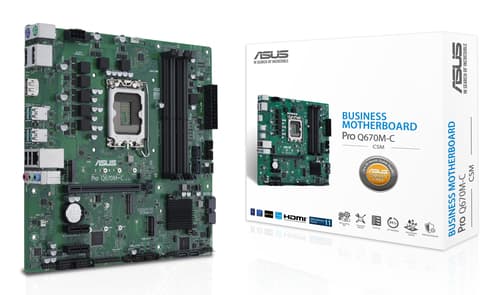

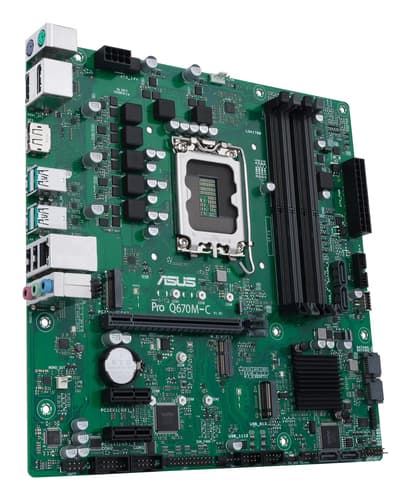

PRO Q670M-C-CSM
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Similar Products
Overview
ASUS PRO Q670M-C-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR5-SDRAM, 192 GB
Specifications
Internal I/O
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 2
- CPU fan connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 6
- Audio connector
- Yes
- Number of chassis fan connectors
- 2
Rear panel I/O ports
- Ethernet LAN (RJ-45) ports
- 1
- DVI-D ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- PS/2 ports quantity
- 2
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Headphone outputs
- 2
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- Microphone in
- Yes
Network
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Ethernet interface type
- Gigabit Ethernet
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel Q670
- Audio output channels
- 7.1 channels channels
- Cooling type
- Active
- Number of mounting holes
- 8
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
Storage controllers
- Number of storage drives supported
- 8
- Supported storage drive interfaces
- M.2, SATA III
- RAID support
- Yes
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 6
- RAID levels
- 0, 1, 5, 10
Processor
- Supported processor sockets
- LGA 1700
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Memory
- Number of memory slots
- 4
- Maximum internal memory
- 192 GB GB
- Supported memory types
- DDR5-SDRAM
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4800,5000,5200,5400,5600 MHz MHz
Graphics
- Parallel processing technology support
- Not supported
BIOS
- BIOS memory size
- 256 Mbit Mbit
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- Number of M.2 (M) slots
- 2
Weight & dimensions
- Width
- 244 mm mm
- Depth
- 244 mm mm
Packaging content
- Drivers included
- Yes
- Cables included
- SATA
