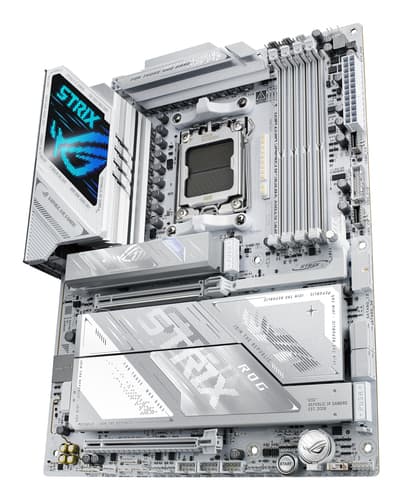

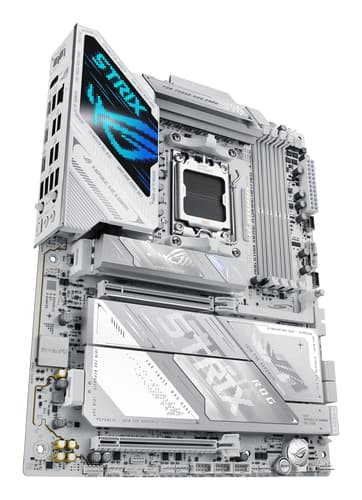

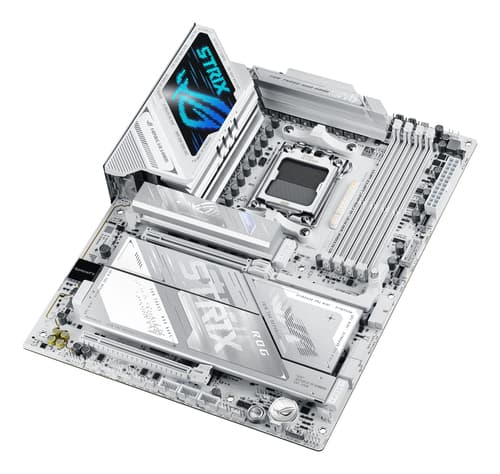

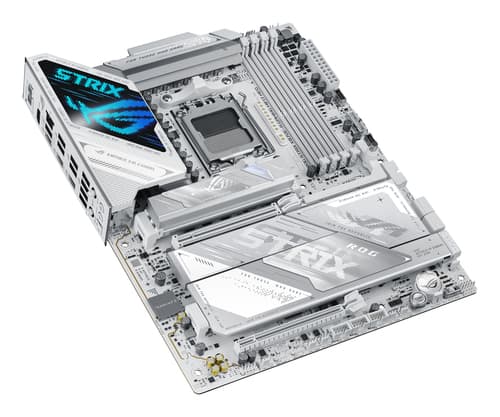

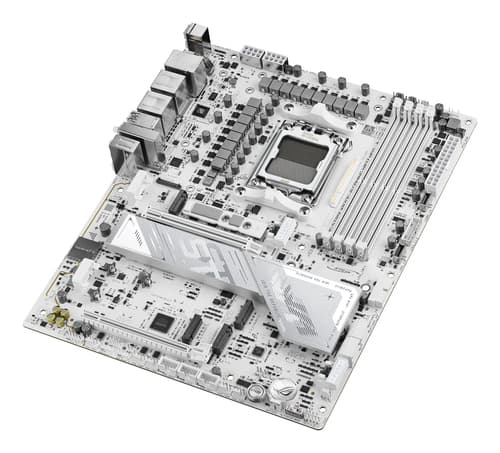

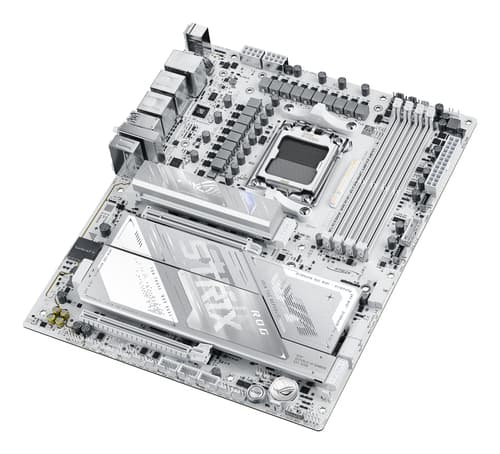

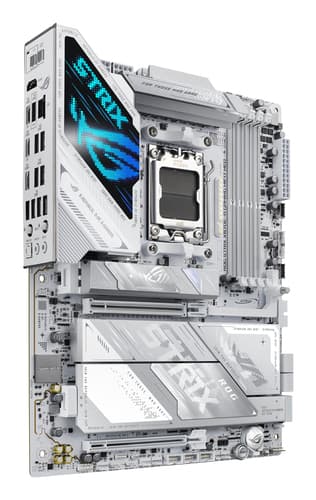

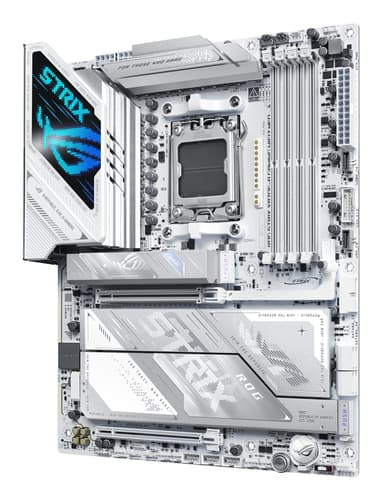

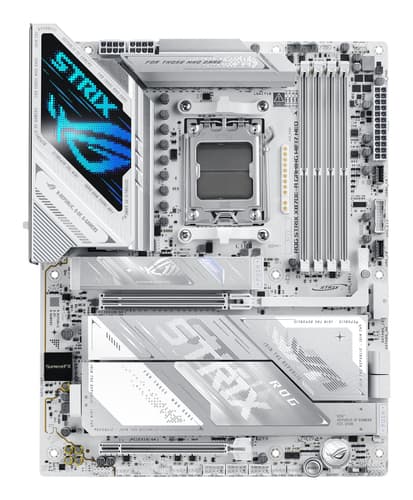

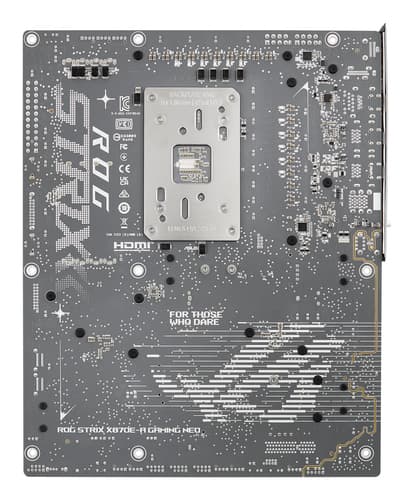

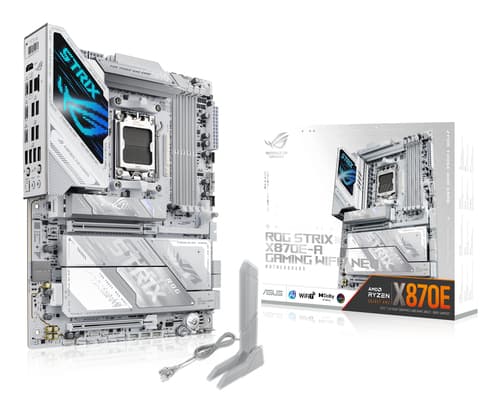

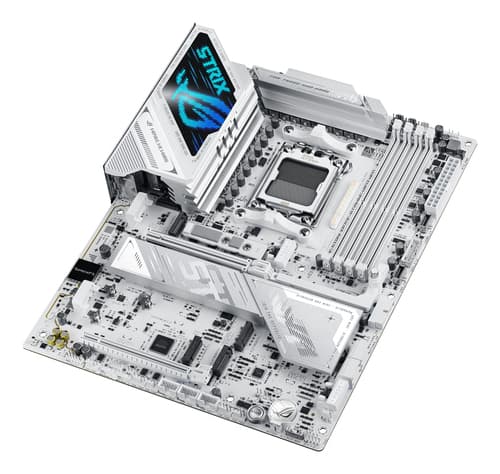

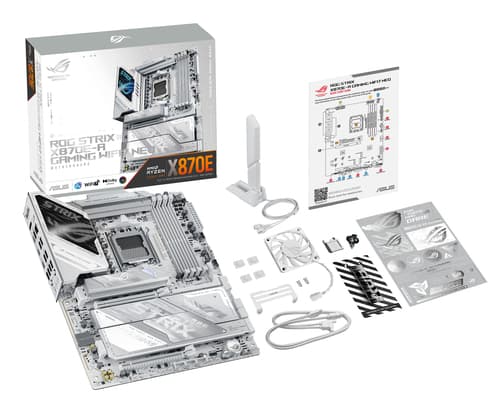

ROG STRIX X870E-A GAMING NEO
Similar Products
Overview
ASUS ROG STRIX X870E-A GAMING WIFI7 NEO, AMD, Socket AM5, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, DDR5-SDRAM, 256 GB, DIMM
Specifications
Storage controllers
- RAID support
- Yes
- Number of HDDs supported
- 4
- Supported storage drive interfaces
- SATA III, M.2
- Supported storage drive types
- HDD & SSD
- Number of storage drives supported
- 8
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- USB 2.0 connectors
- 3
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 5
- USB 3.2 Gen 2x2 connectors
- 1
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- 12V power connector
- Yes
Memory
- Maximum internal memory
- 256 GB GB
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speed (max)
- 9600 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Unbuffered memory
- Yes
Processor
- Compatible processor series
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5

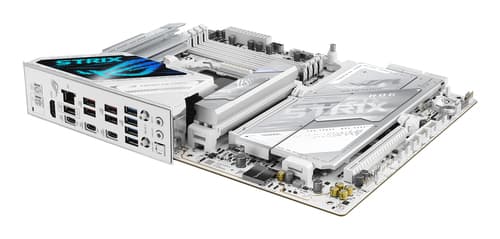

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- USB4 Gen 3x2 ports quantity
- 2
- Microphone in
- Yes
- S/PDIF out port
- Yes
Features
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- AMD
- Motherboard chipset
- AMD X870E
- Audio output channels
- 7.1 channels channels
- Product colour
- Multicolour
- Windows operating systems supported
- Windows 11
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet interface type
- 5 Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- WLAN controller model
- MediaTek MT7925
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Weight & dimensions
- Depth
- 244 mm mm
- Width
- 305 mm mm
- Height
- 50 mm mm
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 4
- 1st M.2 largest key size
- 2280
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 64 Mbit Mbit
- Clear CMOS button
- Yes
Packaging data
- Package width
- 353 mm mm
- Package depth
- 273 mm mm
- Package height
- 68 mm mm
- Package weight
- 2.7 kg kg
Other features
- Weight
- 1.9 kg kg
